Simoco SRM9000 User Manual

DRAFT D
TNM-M-E-0001 Page 39
5. Replaceable Parts
1
2
9
4
7
3
4
5
6
8
10
9000_51

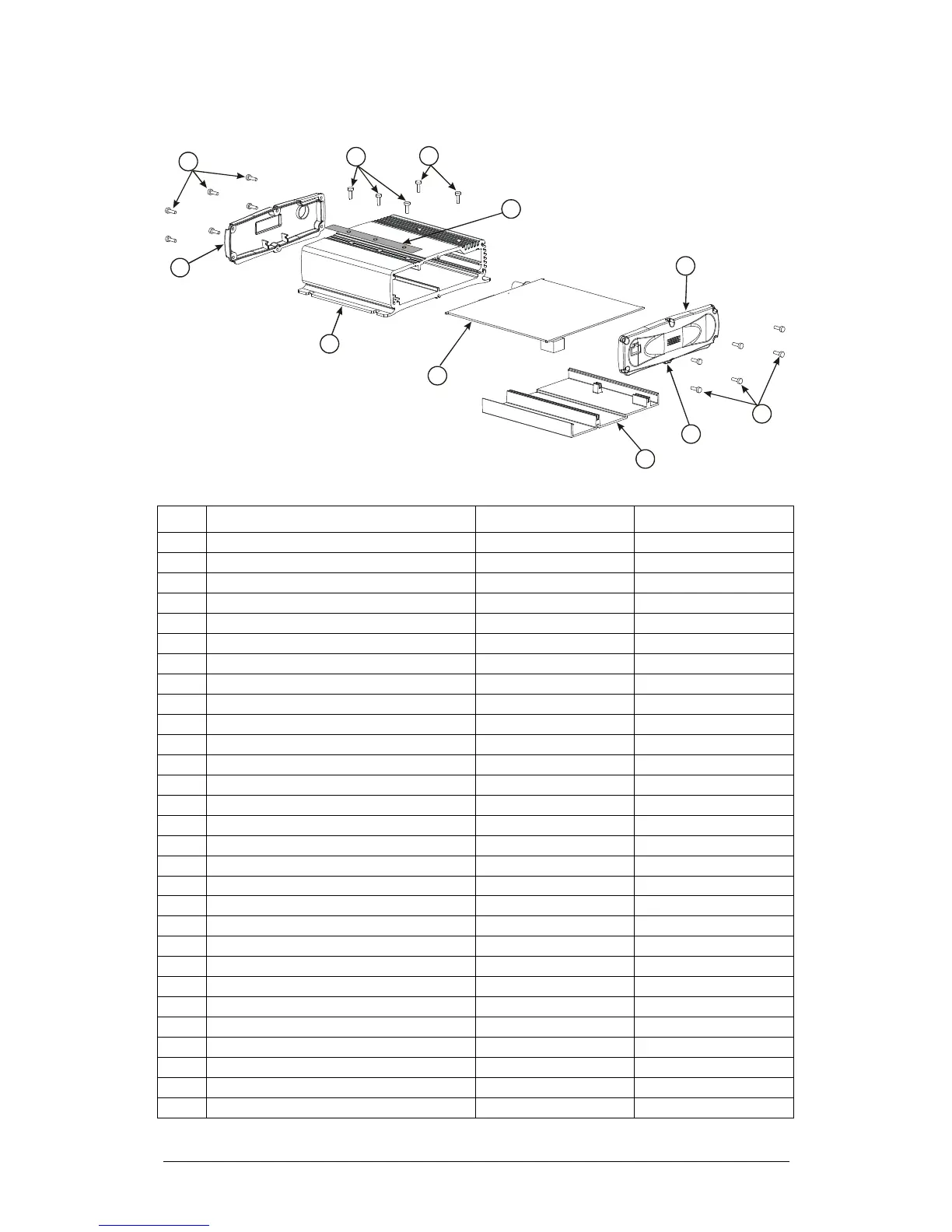

Figure 5-1 Replaceable Parts
Ident Description Quantity per Assembly Part Number
1 PCB E0-Band Transceiver 1 3513-570-13371
1 PCB AC-Band Transceiver 1 3513-570-13361
1 PCB KM-Band Transceiver 1 3513-570-13381
1 PCB TK-Band Transceiver 1 3513-570-13391
1 PCB UW-Band Transceiver 1 3513-570-13401
1 PCB WR-Band Transceiver 1 tba
2 Case 1 3513-901-70071
3 End Cap, Rear 1 3513-903-91081
4 Screw End Cap 12 PT Type DG
5 Screw Tray Retention 3 M3 x 16
6 Screw Tray Retention 2 M3 x 12
7 Label Transceiver Top 1 3513-903-8219A
8 End Cap, Front 1 3513-903-91071
9 Label Front End Cap 1 3513-903-8220A
10 Inner Tray 1 3502-310-63310
11 LT Lead - 5m 1 3502-350-11251
12 BNC Connector, Crimp 1 3513-505-05991
13 Fuse Holder 1 2422-088-00185
14 Fuse 10A Quickblow 1 2422-086-10096
15 TX PA Shield cover 3502-310-63221
16 RJ45 Connector 1 3513-999-99331
17 DB15 Connector 1 3513-999-02063
18 Antenna BNC connector 1 3513-505-05991
19 Audio PA Module U5 1 3513-999-52036
20 Voltage Regulator 8V, U310 1 3513-999-52031
21 Voltage Regulator U311 & U312 1 3513-999-52032
22 Temperature Controlled Crystal Oscillator U700 1 3513-999-99200
23 Transient Suppressor Diode D1 1 3513-999-24014
24 ALC Regulator Q3 1 3513-999-05031
