Make sure that the following parts are fitted properly before use.
Place the pan support in line with cover disc.

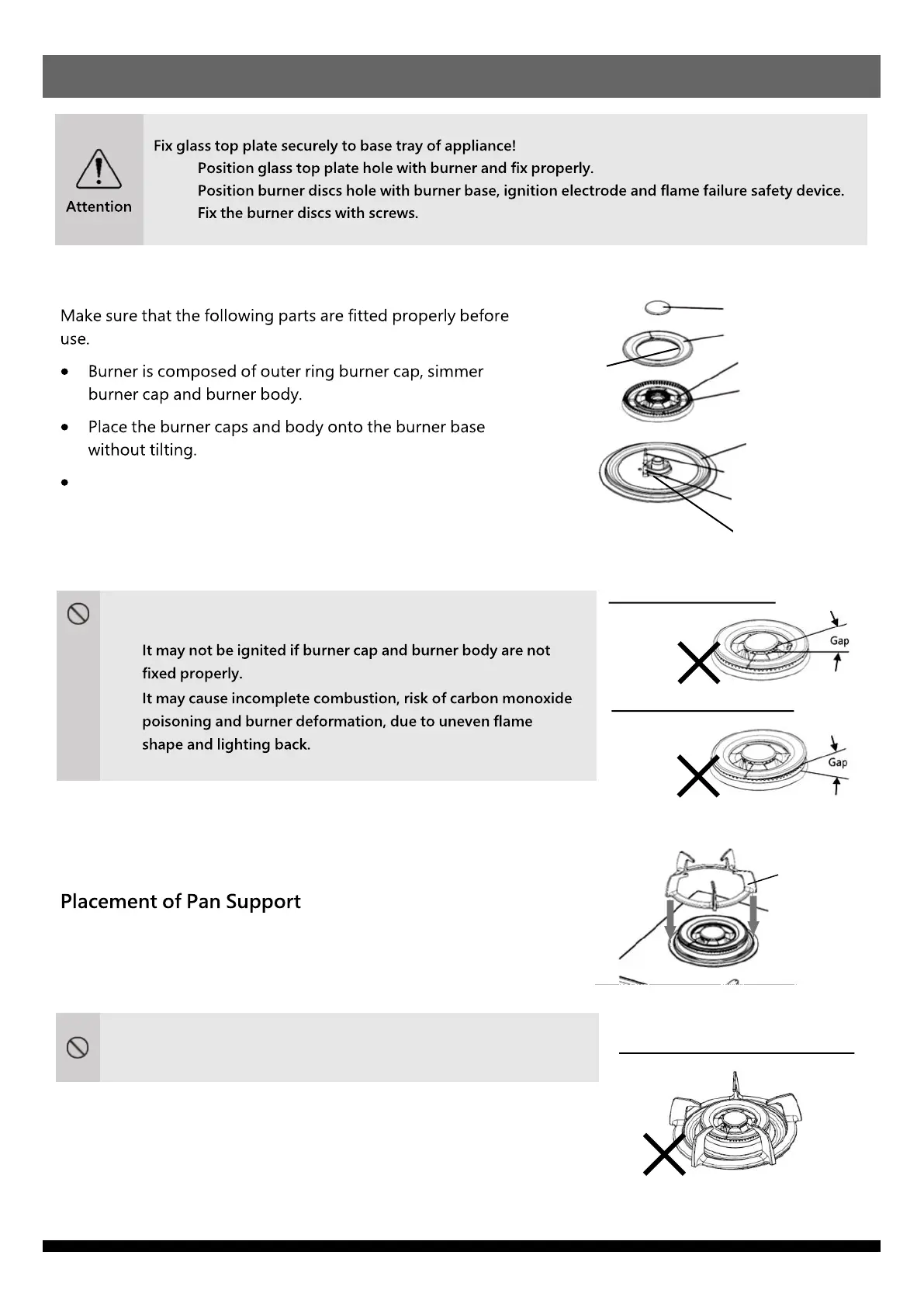

Installation Instructions
Placement of Burner
Locating slot of outer ring burner cap should be matched
with the locating pin of burner body.
Do not use appliance with burner cap and burner body positioned
improperly.
It may cause flame getting into the appliance and damage it.
Do not use appliance with pan support positioned improperly. Due
to improper fixing of pan support, cooking utensil may become
unstable and cause hazard.
Ignition Electrode
Cover Disc
Flame Failure
Burner Body
Simmer Burner Cap
Outer Ring Burner Cap
Locating Pin
Locating
Slot
Burner Base
Tilted outer ring burner cap
Tilted simmer burner cap
Pan support
Improper placement of pan support
