Installation Position
Install the appliance in a well-ventilated room, but do not install at the
position of strong wind. Keep it away from any flammable objects
(such as paper, oil), combustible, sprays or pressurized containers. The
appliance should be installed with a distance of more than 150mm
away from surrounding combustible materials. Allow 650mm or more
clearance above appliance. Install a range-hood at a distance of not
less than 650mm from the surface of pan support of appliance. If the
range-hood requires a different installation distance, adopt the larger
value. The combustion products of appliance shall be evacuated by
means of range-hood.

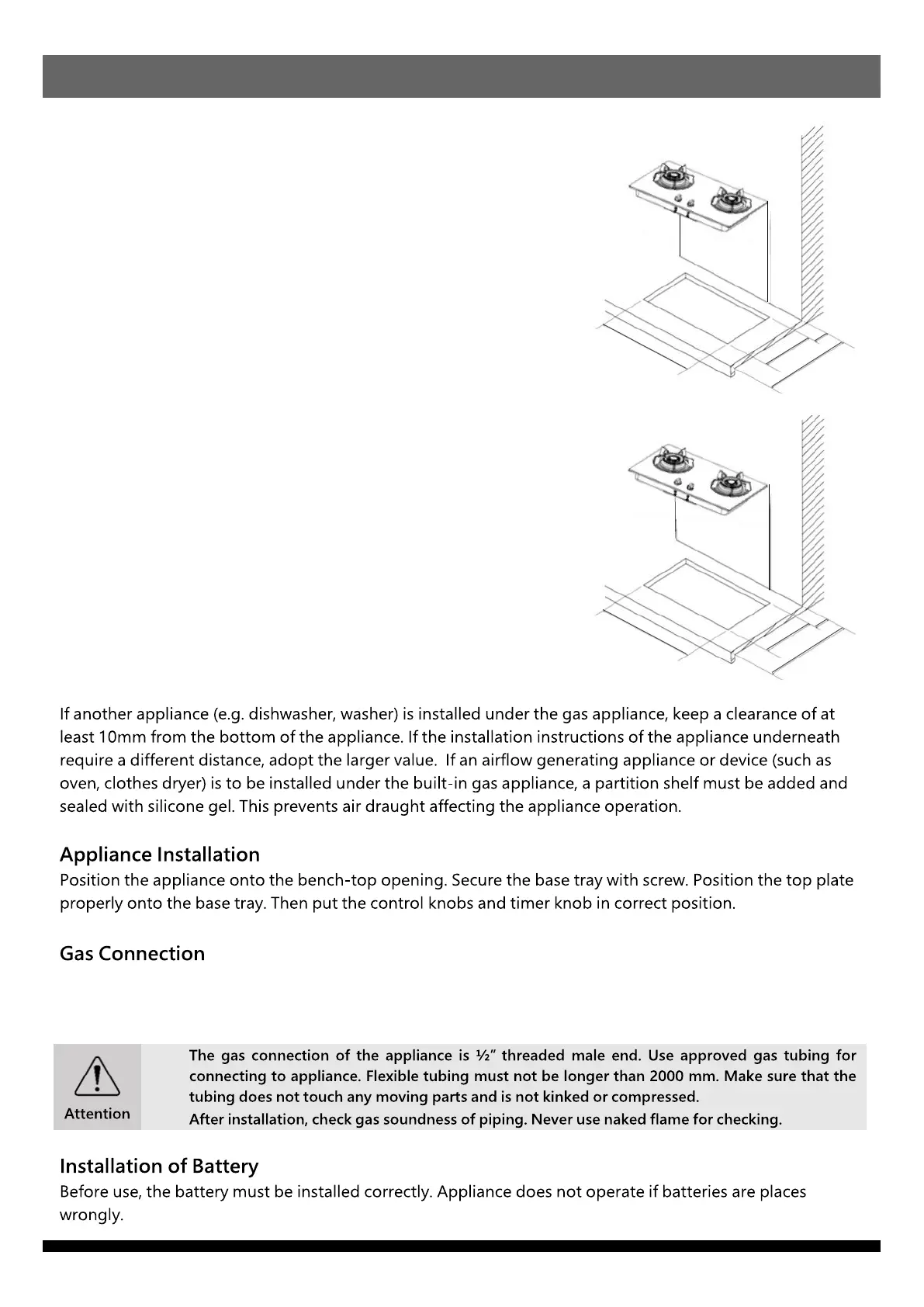

The appliance can be installed in two cut-out dimensions.
Cut-out dimension (I): W670 x D350 mm
Reserve cut hole on bench-top according to Fig.1. Depth of bench-
top should be 600mm or more.
Cut-out dimension (II): W703 x D403 mm
Reserve cut hole on bench-top according to Fig.2. Depth of bench-
top should be 600mm or more. Spacers must be installed.
Connect the gas appliance to the gas supply according to the prescribed standards in force and ensure that
the appliance matches with the type of gas supply. Furthermore, check that the supply pressure is 1.5 kPa and
governor pressure is 1.0 kPa.
Installation Instructions
703
403
600
Min.100
670
350
600
Min.100
Cut-out dimension（I）：
W670 xD350mm
Fig.1
Fig.2
Cut-out dimension（II）：
W703 xD403mm
