Assembly instructions for kit #9
All rights reserved. 2013 Simple Motors, LLC ♦ www.simplemotor.com ♦
16

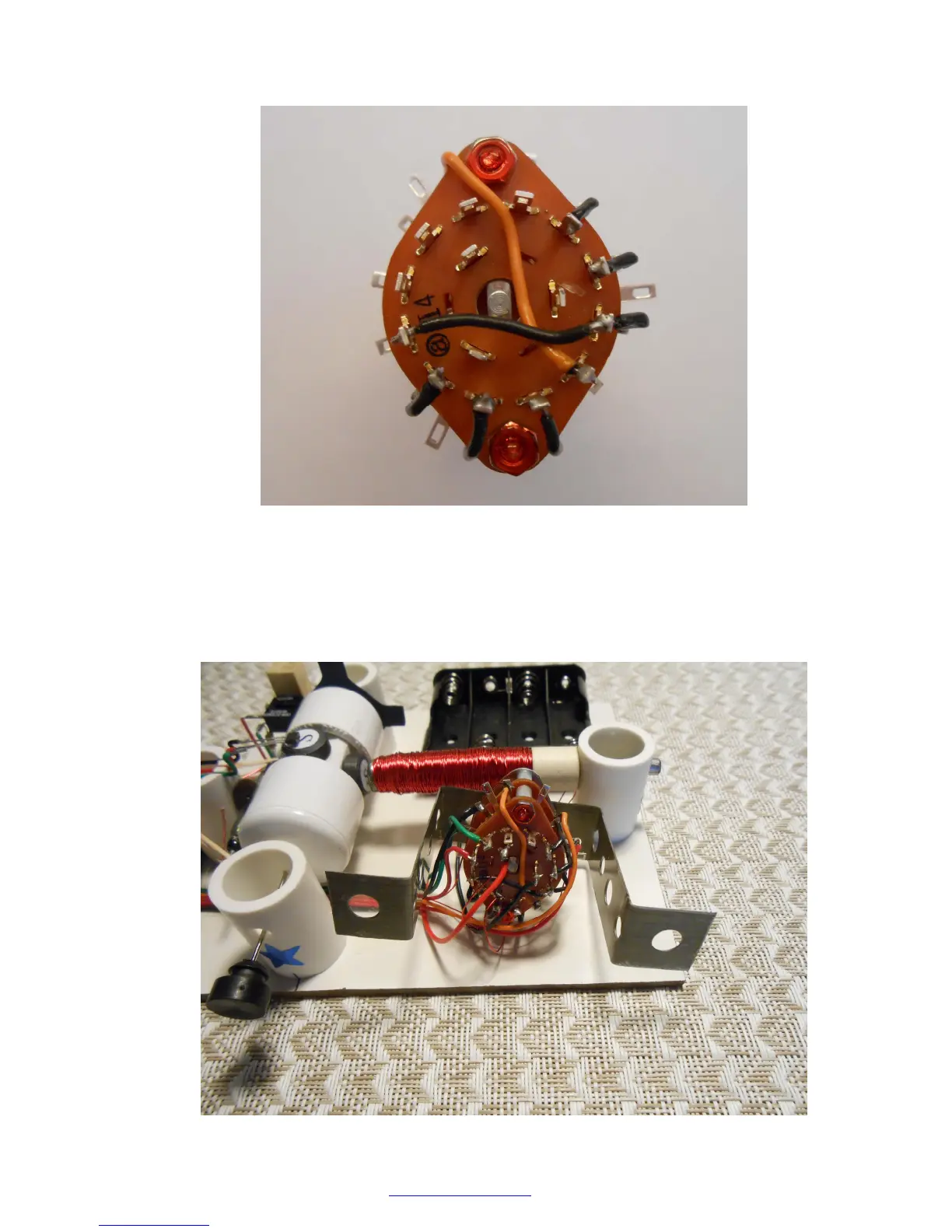

Connect connection points O3-O4, H3-H4, T3-T4, O1-O6, H1-H6, T1-T6, T5-R3 and T3-R1
using pieces of unused wires.
27.Temporarily attach the switch to the bracket and solder all the wires as shown below. Use
the diagram from previous step with the electrical diagram from Appendix A.
IT IS EXTREMELY IMPORTANT TO CHECK AND DOUBLE CHECK ALL YOUR CONNECTIIONS!
If you connect wrong wires the motors will not work and you may even destroy some
electronic parts.
