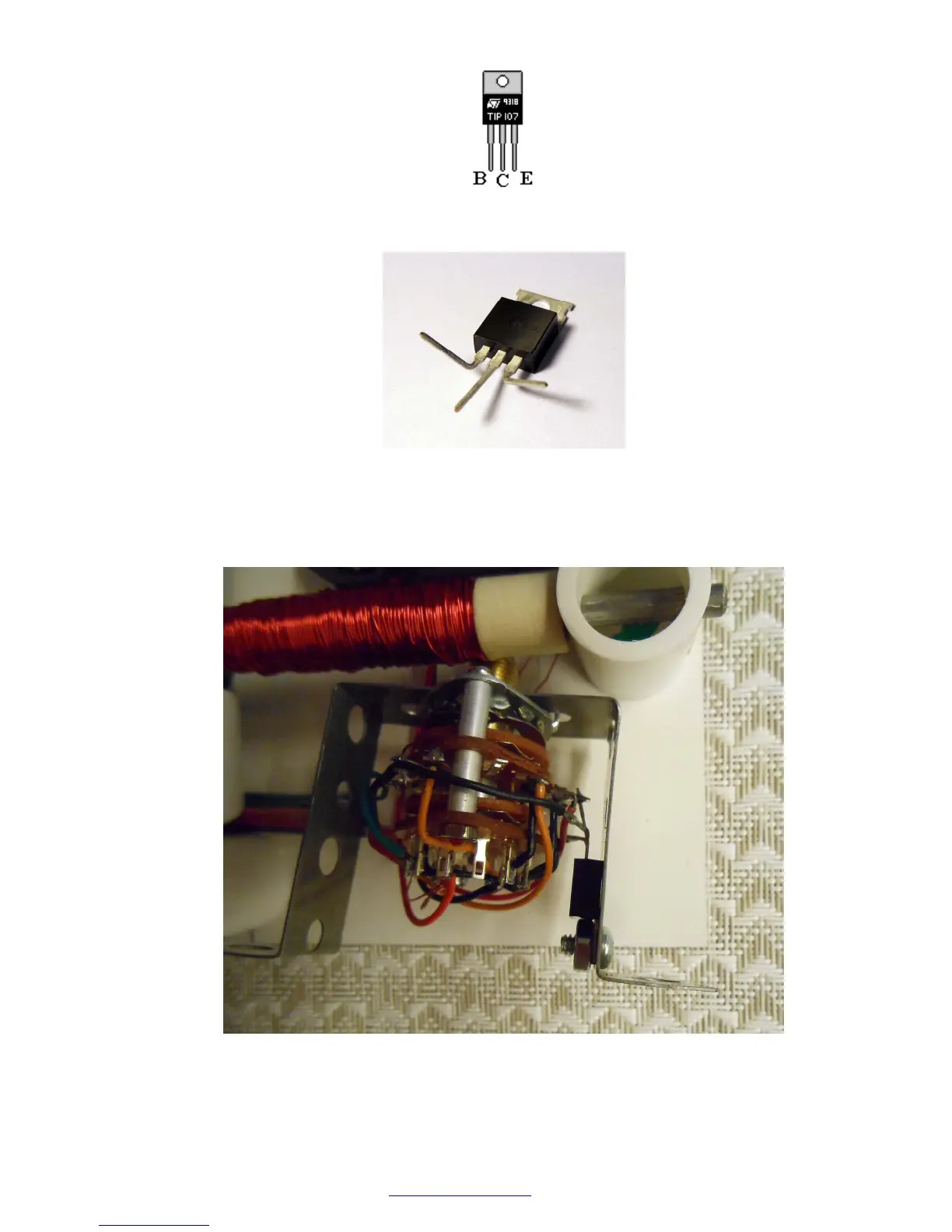

28.Locate the base (B), collector (C) and emitter (E) leads on the transistor:
Bend the leads of the transistor as shown:
29.Attach the transistor to the bracket and solder it to the switch (collector is soldered directly
to the switch; base and emitter are using two wire pieces):
Usually the bracket provides enough heat dissipation for voltages up to 12 Volts. If you plan
to experiment with higher voltages you may add a heat sink as shown:
