6.1.1.2 Class B wiring
To wire the loop using Class B wiring, complete the following steps:
1. Select Class B wiring style from the PC tool.
2. Route the wire from the loop circuit primary terminals B+ B- on the TB3 of the MX loop to the corresponding inputs of the first
device.
3. Route the wiring from the first device to the next as in and out, repeat this step for each device. See Figure 10.
4. Terminate the wire at the last device. A return loop to the control unit or end-of-line resistor (EOLR) is not required.

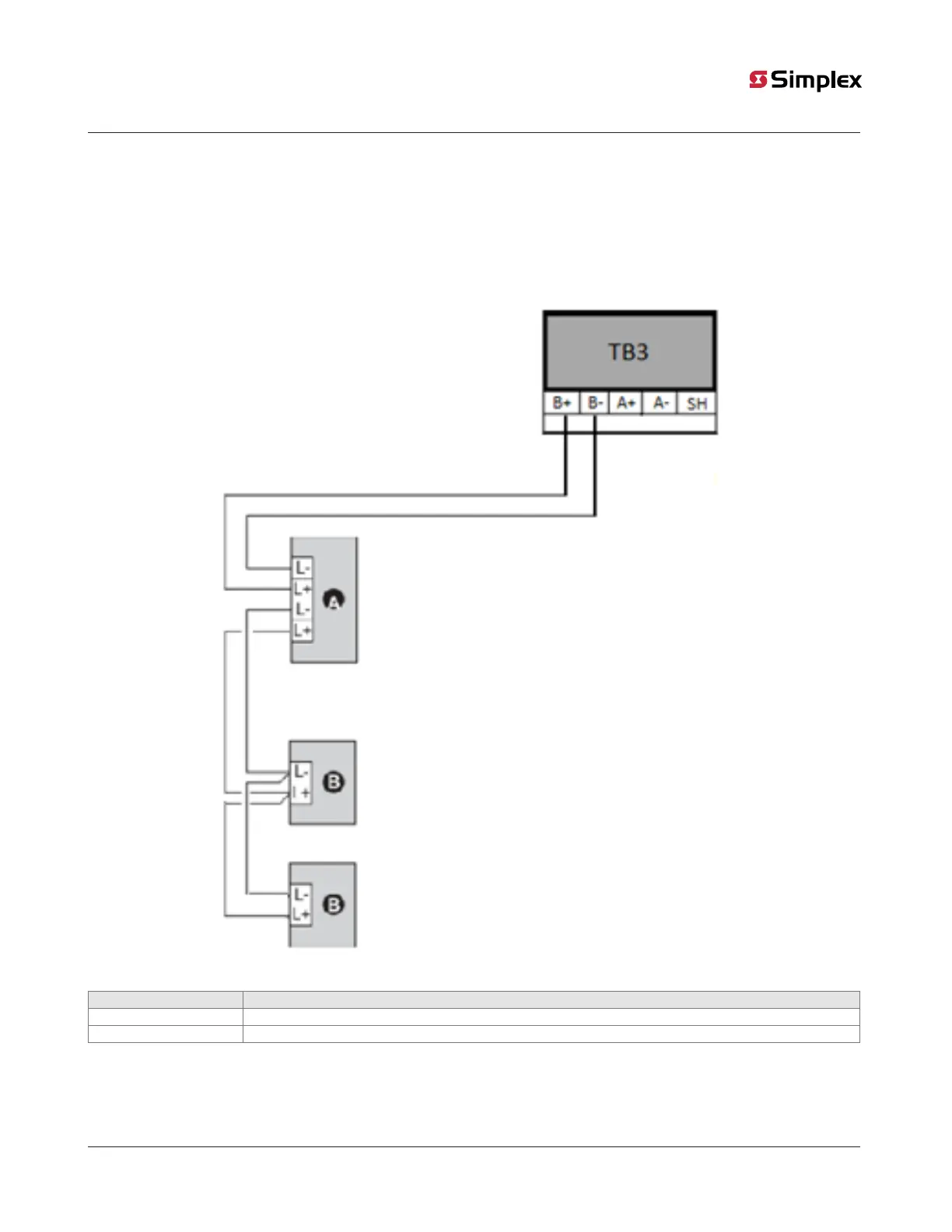

Figure 10: Class B wiring
Callout Description
A Isolators
B Compatible addressable devices (Detector, Input modules, Output modules)
page 19 579-1404 Rev A
2050 and 2250 Foundation Series Fire Alarm Control Units Installation Guide
