HOW TO OPERATE MICROPHONE
1. Remove mike from enclosure and
press (and hold) microphone switch.
• Chime tone will sound three times.
2. Wait for green “READY TO TALK”
LED to light.
3. Make appropriate announcement.
• Releasing microphone switch
restarts tone or message if Alarm
exists.
4. When finished, replace mike in
enclosure.
HOW TO INITIATE AN
EVACUATION SIGNAL
1. TO EVACUATE ALL AREAS: Flip
up MANUAL EVAC switch.
• Red “MANUAL EVAC” LED lights
to indicate that EVAC message is
playing on all speakers.
2. To make an announcement with
mike, see “How to Operate
Microphone” instructions shown
above.
HOW TO SILENCE ALARM
SIGNALS
To silence speakers, perform host
alarm silence procedure at host Fire
Alarm Control Panel.
HOW TO INITIATE AN ALL CLEAR
SIGNAL
1. TO ALL AREAS: Flip up ALL
CLEAR switch.
• Red “ALL CLEAR” LED lights to
indicate that ALL CLEAR
message is playing on all
speakers.
2. To silence speakers, flip up ALL
CLEAR switch again.
• Red “ALL CLEAR” LED turns OFF
and speakers silence.
NOTE:
IF YOUR SYSTEM SWITCH
CONFIGURATION DOES NOT
MATCH THIS SHEET, CONSULT
SIMPLEX FOR SPECIFIC
OPERATIONS. SIMPLEX IS LISTED
IN THE YELLOW PAGES.
IN CASE OF TROUBLE, NOTIFY:
NAME: ________________________
TITLE: ________________________
ADDRESS: ____________________
______________________________
______________________________
PHONE NO.: ___________________
YOUR SAFETY AND THE SAFETY OF THOSE AROUND YOU ALWAYS COMES FIRST!
Actions taken during a fire depend upon local practices. Be sure you know what to do.
© 1993 Simplex Time Recorder Co.
All specifications and other information shown were current as of publication, and are subject to change without notice. FA4-31-501 (574-040) Ed 11 93
THESE INSTRUCTIONS ARE INTENDED TO BE FRAMED AND MOUNTED ADJACENT TO THE VOICE CONTROL PANEL FOR READY REFERENCE.
See “4003 Voice Control Panel – Installation/Operating Instructions” for detailed operating instructions.

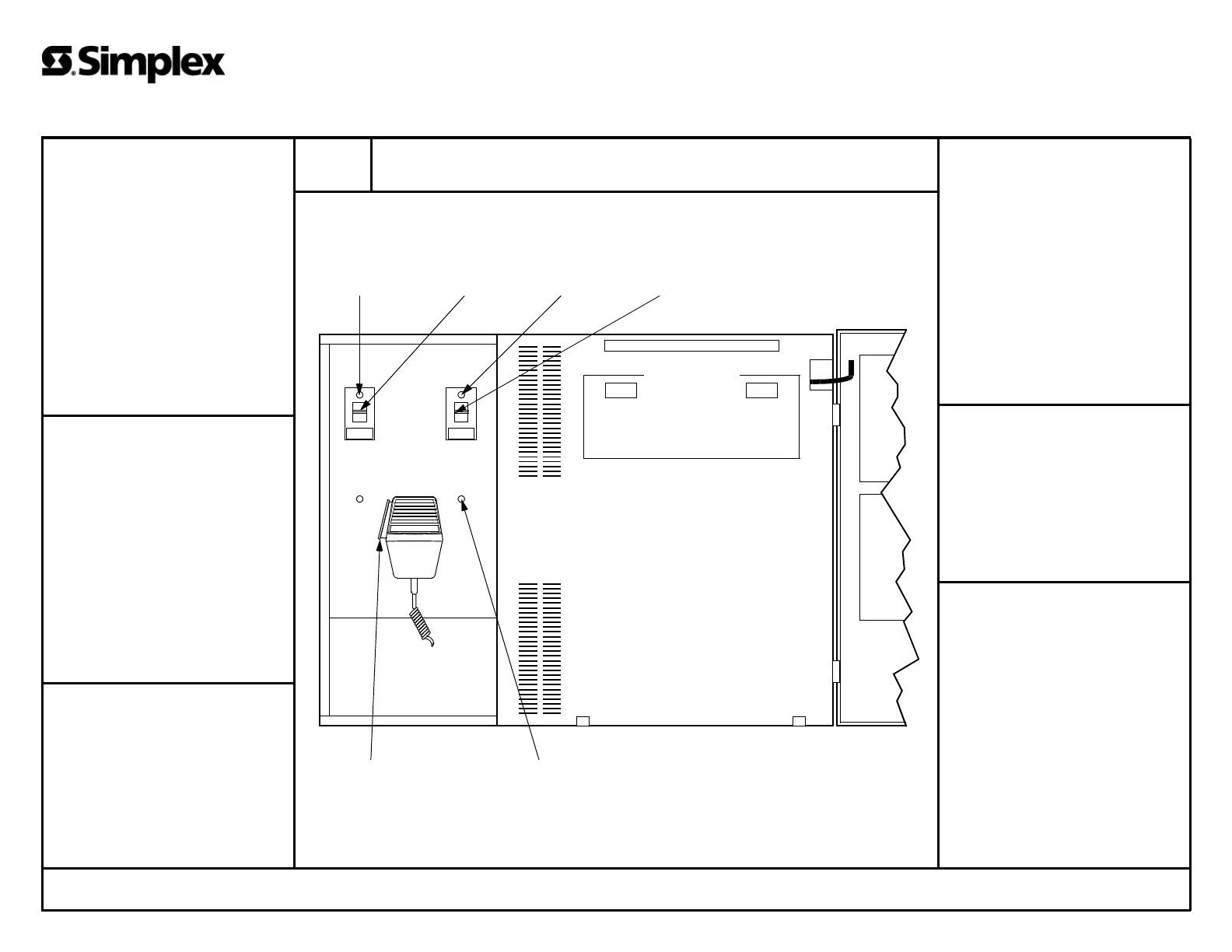

HOW TO OPERATE A 4003 VOICE CONTROL PANEL
(SLAVE MODE OR ADJUNCT MODE)
WHEN USED WITH A HOST FIRE ALARM CONTROL PANEL
“MANUAL EVAC”
LED
“MANUAL EVAC”
SWITCH
MICROPHONE SWITCH “READY TO TALK” LED
“ALL CLEAR” LED “ALL CLEAR” SWITCH
CAUTION: DISCONNECT POWER BEFORE SERVICING
OPERATING INSTRUCTIONS
SYSTEM
TROUBLE
READY
TO TALK
MANUAL
EVAC
ALL
CLEAR
PAGING
