Installing the Amplifier onto the PDI
The amplifier assembly is designed to be mounted on the PDI in a FACU expansion bay. The module should be mounted onto the rightmost side of the
PDI.
Lower the amplifier into the bay by placing the two tabs on the back of the amplifier assembly into the two slots on the bottom of the bay. Then use
the bottom left connector on the back side of the amplifier to connect to the PDI as shown in Figure 5, below.

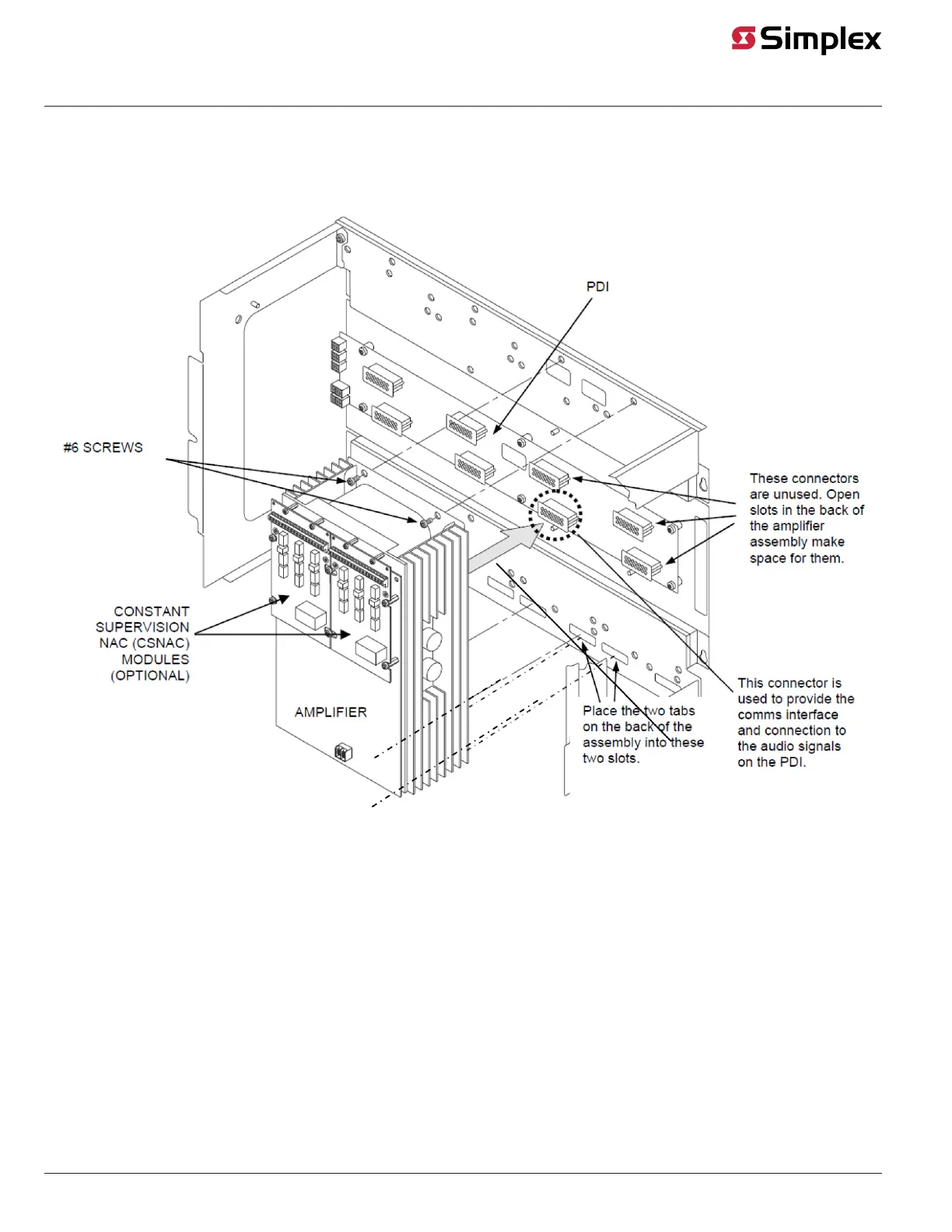

Figure 5: Mounting onto the Power Distribution Interface
page 7 579-174 Rev. Q
Digital/Analog Amplifiers Installation Instructions
