P1 P3P2 SW1 Card Address Switch P7
TB1 TB2 TB3 TB4 TB5
LED
1 & 2
LED
3 & 12
Battery Connections Optional City
or Relay Card
Terminal
Block
and Switch
TB1
Single Channel, Dual Loop IDNet+ Circuit
which is electrically isolated and has
TB4
TB2 & TB3
These circuits are rated for Special
for more details.)
TB5 Form C Programmable Aux Relay
SW1 Card Address Switch
Descrip�on
P Connector
and Switch
P1
CLASS B (Note 1)
CLASS A, X
P2
CLASS B (Note 1)
CLASS A, X
P3
EARTH DETECT (Note 2)
ENABLE / DISABLE
P7
LOW BATTERY DISCONNECT
DISABLE (DOMESTIC) ENABLE (CANADA)
P Connector & Switch
LED 1
LED 2
LED 3
LED 4
IDNet POS. EARTH
IDNet NEG. EARTH
IDNet
ON = IDNet POS. EARTH
ON = CLASS A / OPEN TRBL
ON = IDNet NEG. EARTH
LED 5
LED 6
LED 7
LED 8
AC POWER
4100 COMMS
GENERAL POWER TRBL
ON = CLASS A / OPEN TRBL
ON = MSS POWER FROM AC MAIN
ON = COMM LOSS
LED 9
LED 10
LED 11
LED 12
NAC 1
NAC 4
NAC 2
NAC 3
NAC 1 TRBL OR NAC 1 “ON”
NAC 1 TRBL OR NAC 4 “ON”
NAC 1 TRBL OR NAC 2 “ON”
NAC 1 TRBL OR NAC 3 “ON”
Descrip�on

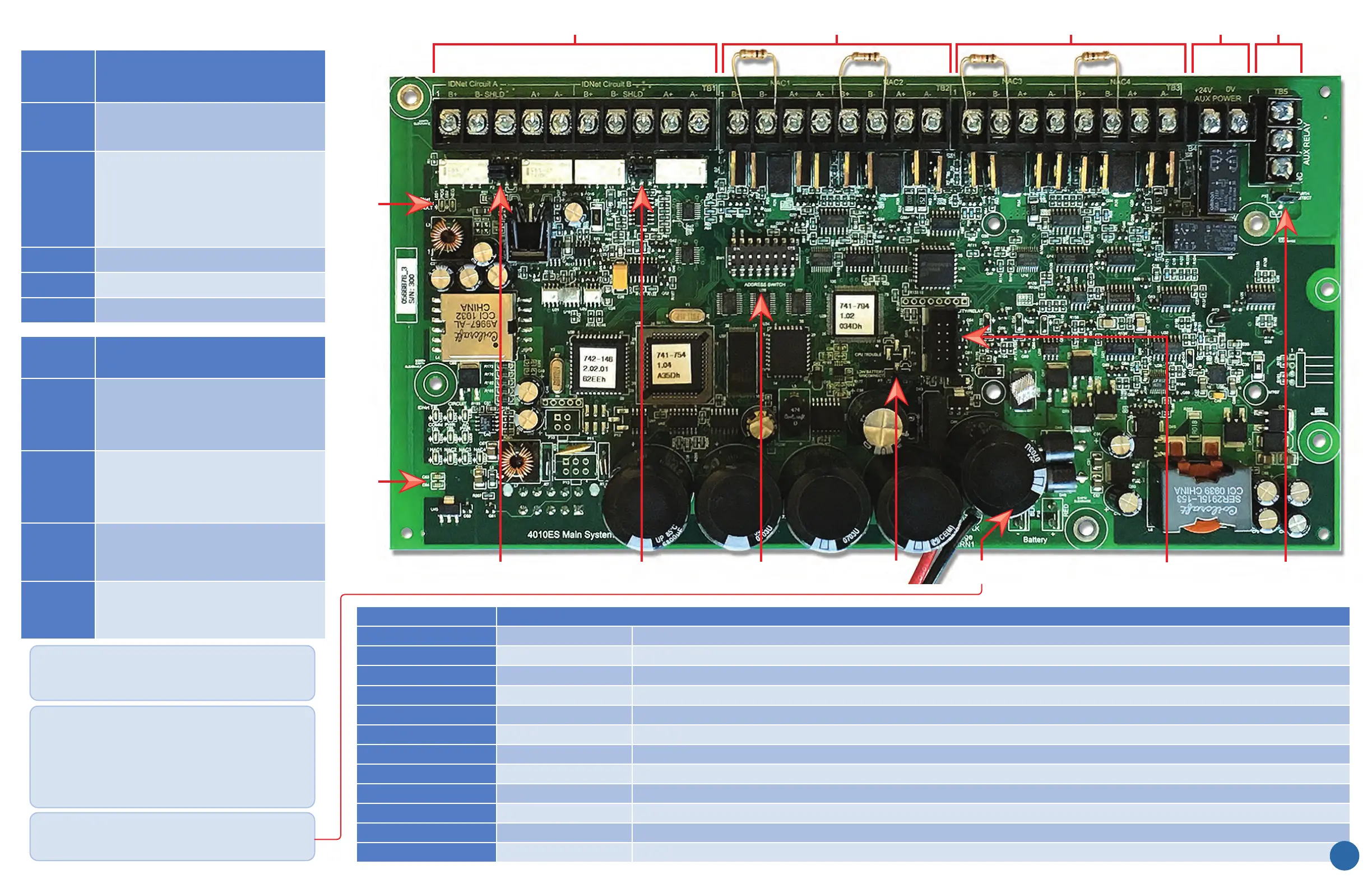

SIMPLEX 4010ES with MSS Main Board
4
Note 1: When jumpers are set for Class B on IDNet, you may
use both the B-side and the A-side to wire devices.
Thus, for Circuit B, you can have two pairs of wires per side or
four branches per circuit.
Note 2: Only one power module should be set for earth fault
Normally, the MSS is set to monitor for earth faults. The earth
(XBC) may also be set to monitor for earth faults. If the XBC is
50 Ah in the two-bay box.
To Next Page
