Simplex 4903 User Manual

NOTES: NOTES:
1. ALWAYS MOUNT CHIME OR
4” BELL AS LAST STEP OF
MOUNTING PROCEDURE.
2. BACK BOX IS A 4” SQUARE BOX.
1. ALWAYS MOUNT CHIME OR
4” BELL AS LAST STEP OF
MOUNTING PROCEDURE.
2. BACK BOX IS A 4” SQUARE BOX.

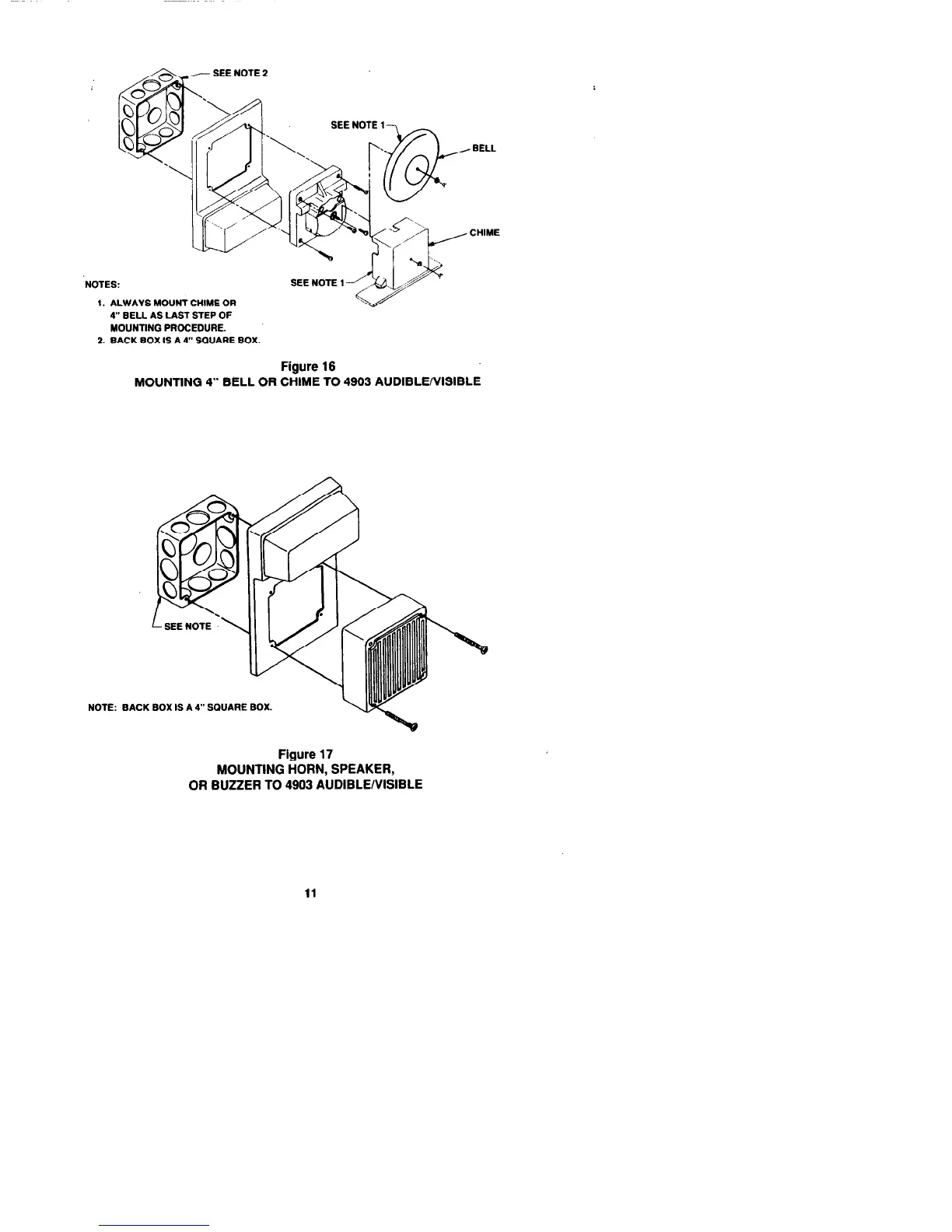

Figure 16
MOUNTING 4” BELL OR CHIME TO 4903 AUDIBLE/VISIBLE
NOTE: BACK BOX IS A 4” SQUARE BOX.
Figure 17
MOUNTING HORN, SPEAKER,
OR BUZZER TO 4903 AUDIBLE/VISIBLE
11
