PENDANT - START UP

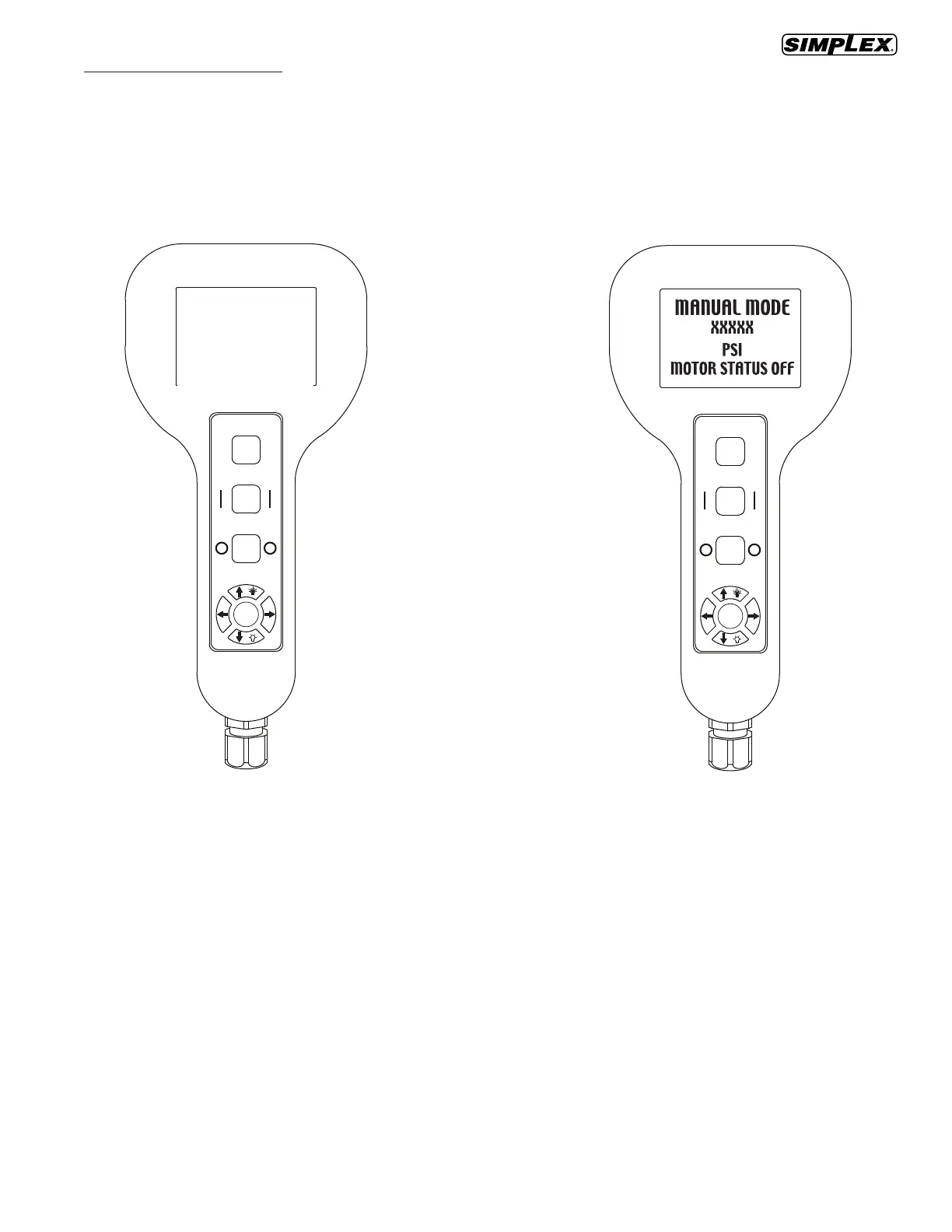

Upon “Power Up”, unit will perform system check. If critical fault(s) are detected, unit will not start and fault(s) will be
displayed here (Fig.1). Warnings will not prevent the unit from starting.
The “Manual Mode” screen will display after the system check is complete and will default to “Manual Mode”
(Fig. 2). Screen displays pressure in selected units (PSI, Bar, MPa) and indicates the motor status.
FIG. 1
FIG. 2
MENU
ENTER
ADVANCE
ON
OFF
Power Control Center
MENU
ENTER
ADVANCE
ON
OFF
Power Control Center
PERFORMING SYSTEM
CHECK
OK
SOFTWARE VER. X.X
TORQUE WRENCH
