Simplex P Series User Manual

4
Table 2 - Reservoir Type and Operating Position
Model Reservoir Type: Operating Position: Model Reservoir Type: Operating Position:
P20 Non-Vented Horizontal or Vertical P140 Non-Vented Horizontal or Vertical
P22 Non-Vented Horizontal or Vertical P140D Non-Vented Horizontal or Vertical
P30 Non-Vented Horizontal or Vertical P143 Non-Vented Horizontal or Vertical
P32 Non-Vented Horizontal or Vertical P143D Non-Vented Horizontal or Vertical
P41 Non-Vented Horizontal or Vertical P230 Vented Horizontal Only
P41A Non-Vented Horizontal or Vertical P230D Vented Horizontal Only
P42 Non-Vented Horizontal or Vertical P300 Non-Vented Horizontal or Vertical
P71 Non-Vented Horizontal or Vertical P300D Non-Vented Horizontal or Vertical
P71V Non-Vented Horizontal or Vertical P301 Vented Horizontal Only
P72 Non-Vented Horizontal or Vertical P301D Vented Horizontal Only
P82 Non-Vented Horizontal or Vertical P461 Vented Horizontal Only
P82A Vented Horizontal Only P461D Vented Horizontal Only

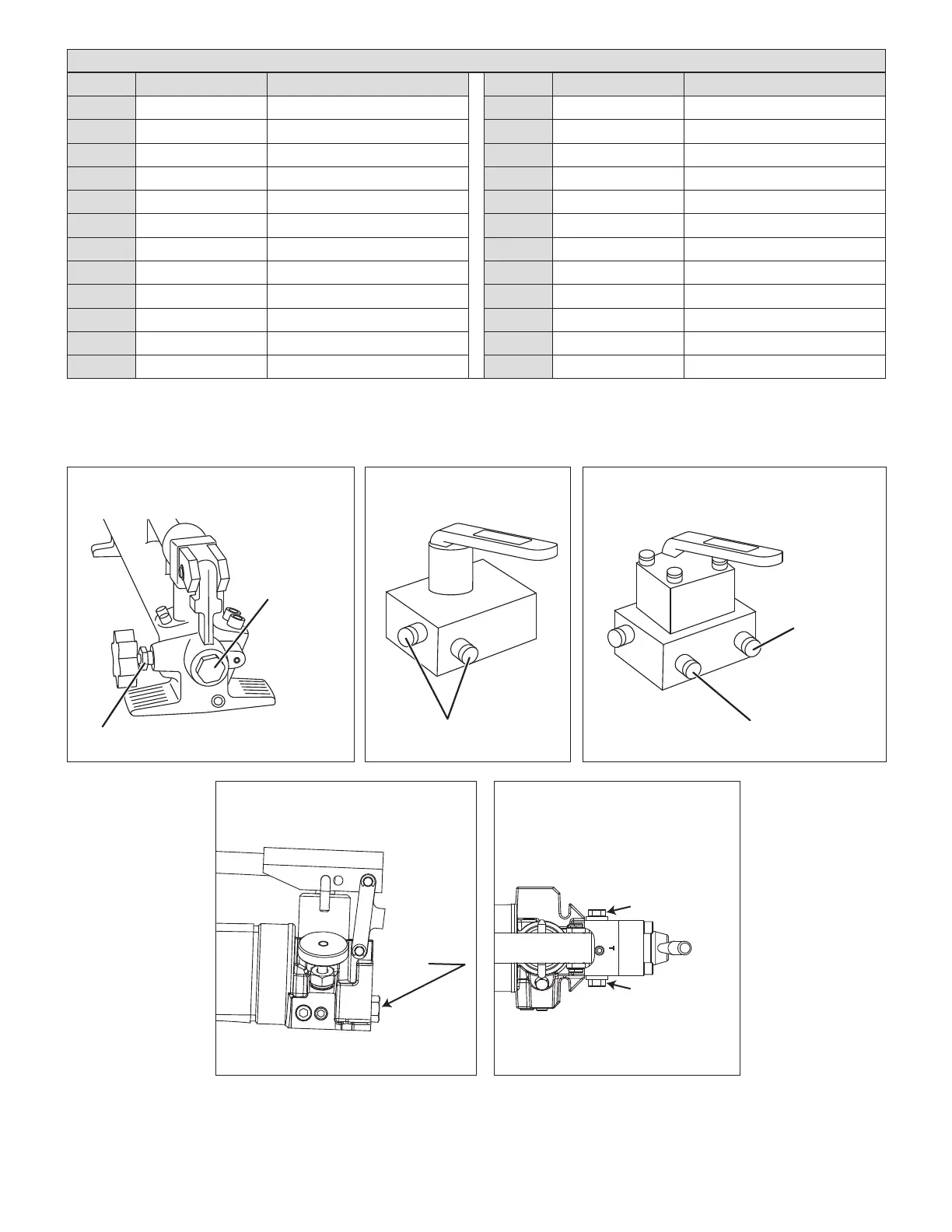

Hand Pump Hydraulic Connections
Models P20, P22, P30, P32, P41, P41A,
P42, P71, P71V, P72, P82 & P82A
Models P230 & P461 Models P230D & P461D
Outlet
Port
Outlet Ports
Release Screw Assembly
Retract Port (B)
Advance
Port (A)
Outlet
Port
Models P140, P143, P300 & P301 Models P140D & P143D,
P300D & P301D
Advance
Port (A)
Retract
Port (B)
