SimpliciKey SRCED3 - Install Interior Plate; Attach Wires; Install Interior Lock; Test the Manual Deadbolt

6 7
Plastic clip
Connect Antenna Here
J4

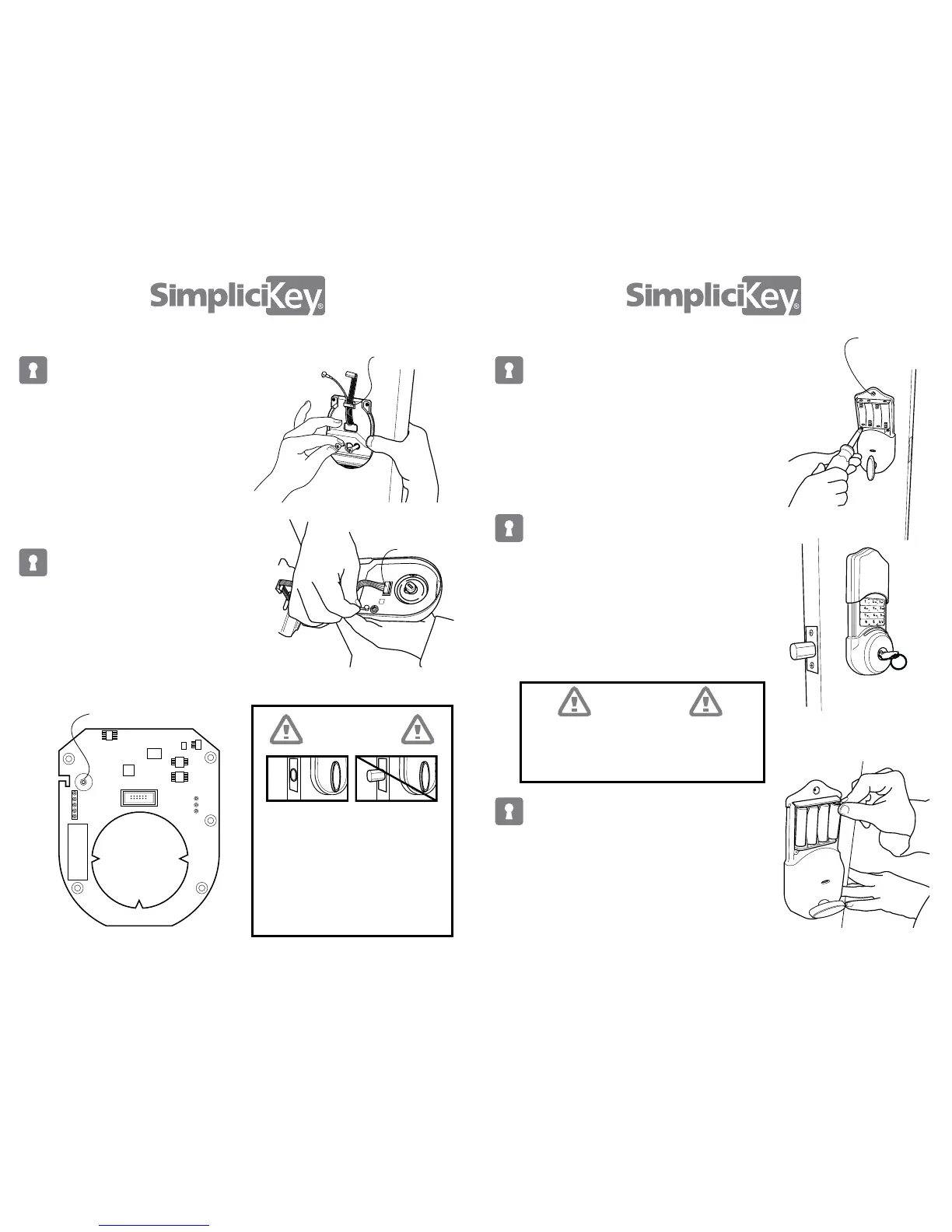

7. Install Interior Plate
8. Attach Wires
Slide wires through wire hole of
interior lock plate. Be sure to keep
wires out of the way by sliding both
wires into the plastic clip on the
interior plate.
Insert two long bolts through plate,
latch, and thread into external lock,
securing all pieces snugly.
Attach the black connector to the port
on the green circuit board with the
white rectangle around it labeled J4.
Attach other connector to the port on
the green circuit board just below the
top left screw. CONNECT ANTENNA is
labeled (see picture ).
Correct Incorrect
Critical Point
Do not skip this step or the lock
will not operate correctly.
Conrm that the deadbolt is retract-
ed during the entire installation.
Thumbturn should be in a vertical
position with deadbolt retracted as
shown in (A).
(B) (A)
Guide excess wiring into cavity above the green
circuit board. Align thumbturn with at bar to
mount to interior plate. (Thumbturn must be in
the vertical position and deadbolt must remain
retracted). Attach interior lock to interior plate
with the two short bolts through holes under
battery case. Be careful not to pinch the wires
as you install the lock.
Optional wood
screw hole for
increased
security.
Insert key into cylinder and turn to extend
deadbolt to locked position. If the deadbolt
will not extend, or there is resistance when
turning, double-check that all previous
steps have been completed successfully.
Remove key.
If the deadbolt still will not extend, call
Technical Support at 1-800-785-6595.
Install four AA batteries in the compartment
on interior lock.
Lock will automatically locate door position to
determine right-hand / left hand orientation
Slide battery cover into place, concealing the
battery compartment.
10. Test the Manual Deadbolt
11. Install Batteries
Critical Point
Make sure the door is open and the deadbolt
is free to auto-locate. Do not press any buttons
until lock activity stops and conrmation tone
sounds.
9. Install Interior Lock
CONNECT ANTENNA
