Simplicity 1600 Series User Manual

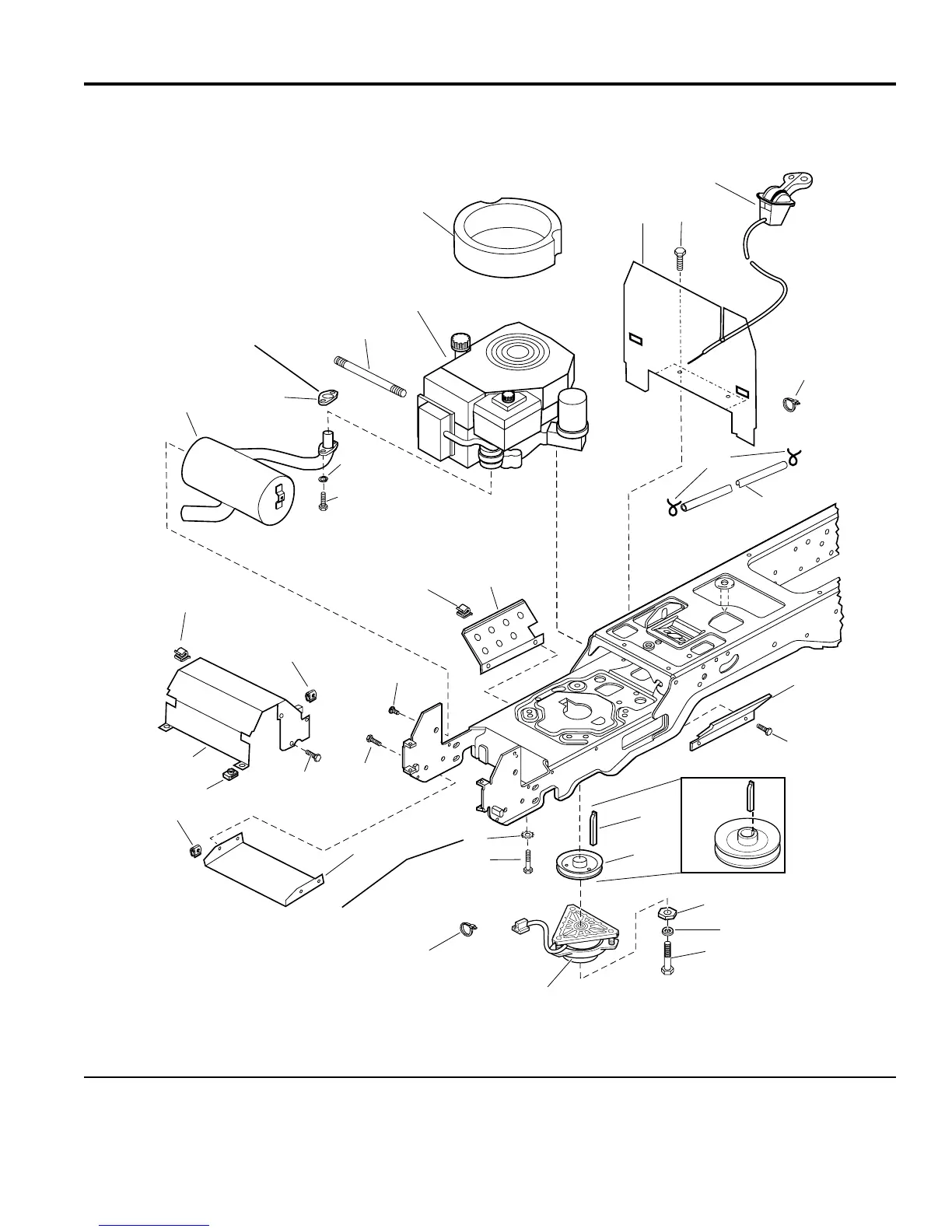

Engine Group - 18HP Kohler
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Engine Manufacturer
Gasket & Hardware,
Torque to 18 ft. lbs.
(25 Nm)
Tie clutch wire
to keep away
from pulley.
Torque to
45-50 ft. lbs.
(61 - 68 Nm)
Torque to
19-23 ft. lbs.
(26 - 31 Nm)
Note:
Orientation
of All Keys
Install between Frame &
Ground cable on RH
rear engine capscrew.
Tie cables to Left
Hand side fo shield.
20
18
22
15
21
19
16
23
17
30
27
24
31
26
25
5
9
13
6
8
10
7
12
29
18
2
1
4
15
28
14
11
29
3
14
986682
The above parts group applies to the following Mfg. Nos.:
2005
12
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694629 - Broadmoor
TP 400-4205-01-BM-SMA
