Simplicity 1600 Series User Manual

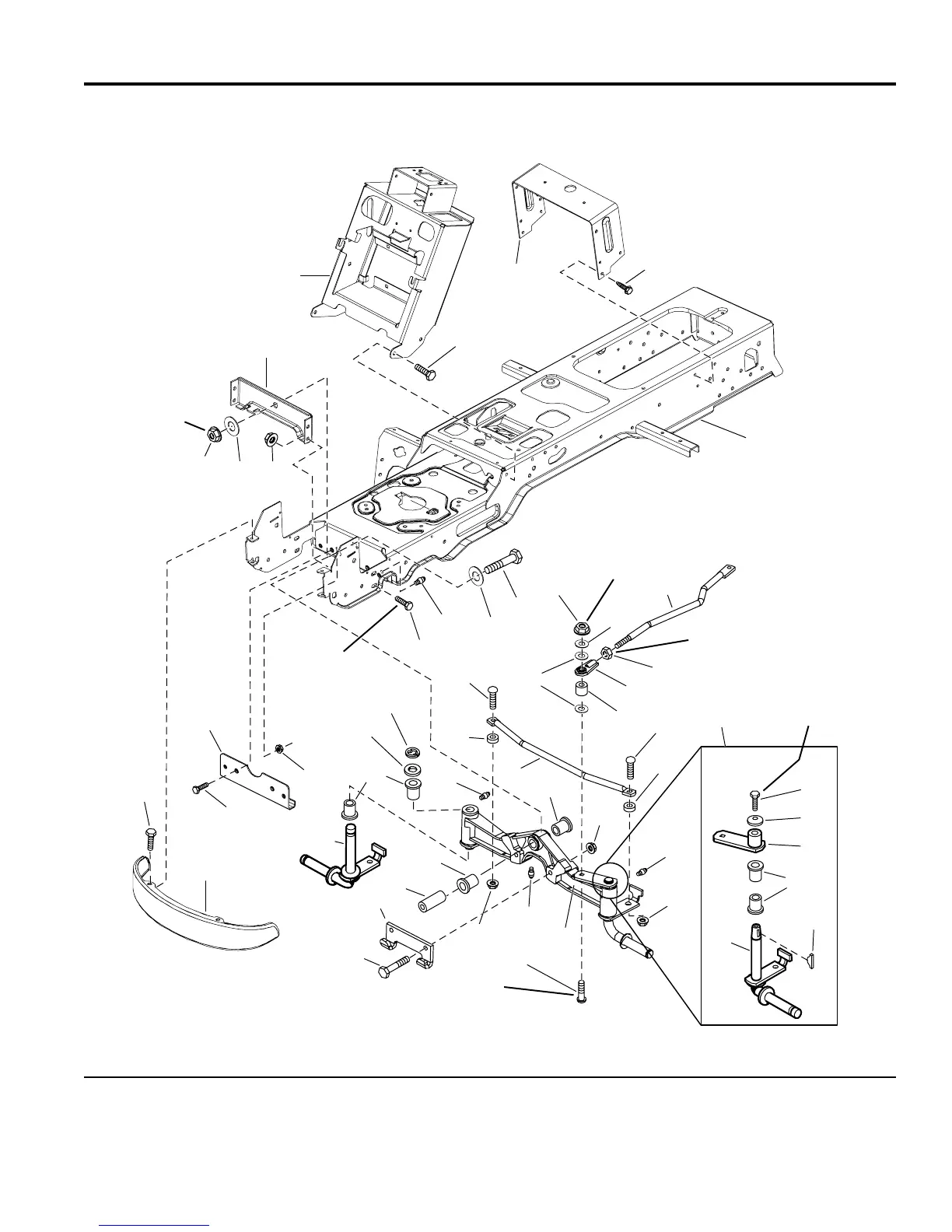

Frame & Front Axle Group
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Torque to
150 ft. lbs.
(202 Nm)
Torque to
22-40 ft. lbs.
(30-54 Nm)
Torque to
13 ft. lbs.
Service Kit
1686985
Torque to
50-57 ft. lbs.
(48-56 Nm)
Torque to
22-40 ft. lbs.
(30-54 Nm)
Torque to
55-60 ft. lbs.
(74-81 Nm)
12
18
21
13
18
14
17
16
20
31
36
33
23
22
34
37
32
1
7
5
9
2
8
4
6
3
10
2
1515
19
20
42
1
1
1
35
22
22
22
43
41
24
33
24
26
27
28
30
29
25
11
40
38
39
986681
The above parts group applies to the following Mfg. Nos.:
2005
4
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694629 - Broadmoor
1694630 - Broadmoor
1694631 - Broadmoor
1694632 - Broadmoor
1694633 - 1620H
1694634 - 1620H
1694635 - 2620H
1694682 - Broadmoor
1694683 - Broadmoor
1694807 - 2618
1694844 - 2618H
TP 400-4205-01-BM-SMA
