Simplicity 1600 Series

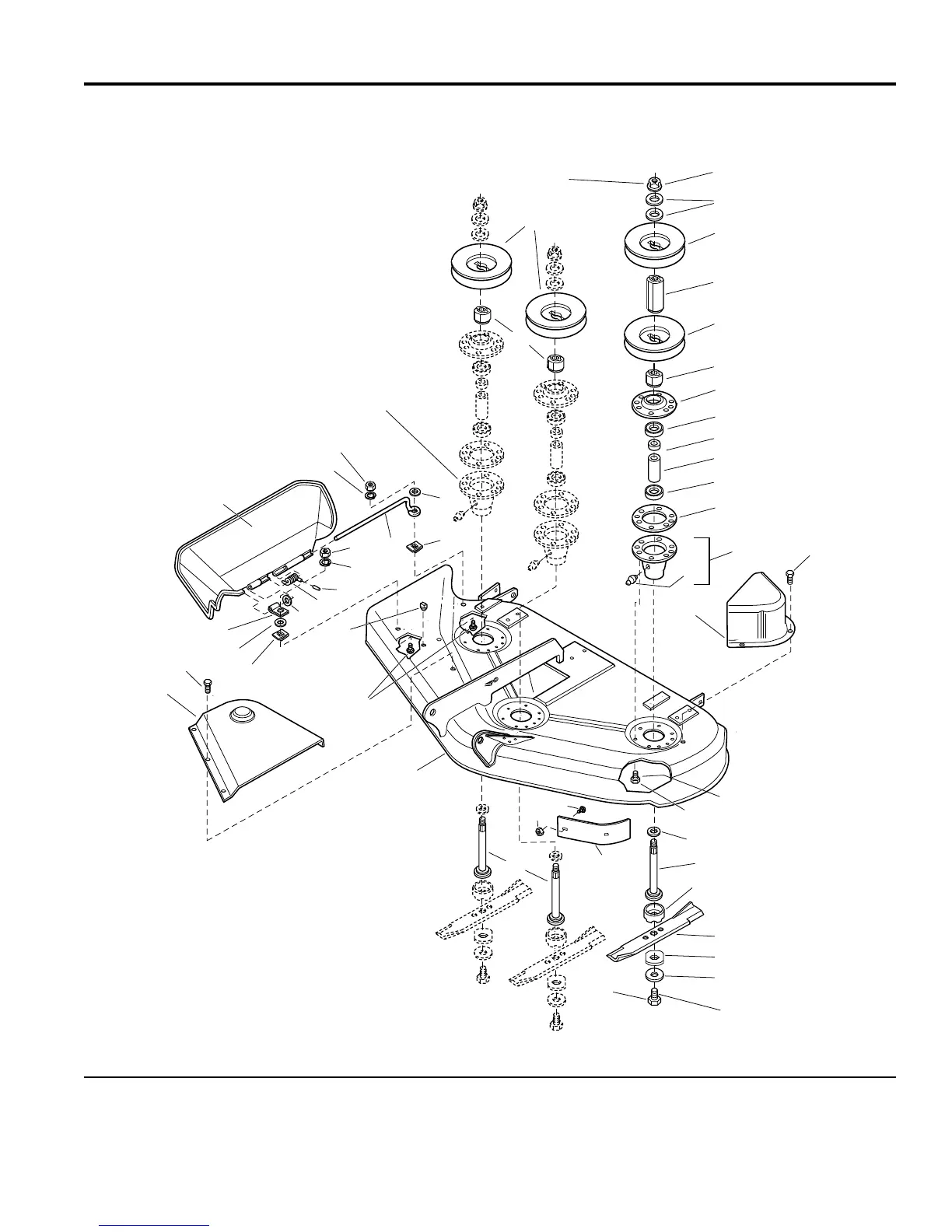

50" Mower Deck - Housing, Arbors & Blades
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Torque nuts
to 50-70 ft. lbs.
(67-95 Nm.)
Torque screws
to 45-55 ft. lbs.
(61-75 Nm)
Apply gasket former to this surface
if foam gasket is not used.
Fill arbors with multipurpose grease
after gasket former has cured.
Torque arbor capscrews
to 14-18 ft. lbs.
(19-24 Nm)
11
16
18
12
17
15
19
20
26
28
21
28
23
25
22
29
30
37
35
31
38
33
36
32
40
1
7
5
9
2
8
4
6
3
10
5
5
2
25
24
35
36
29
30
39
27
16
16
14
13
34
40
41
42
985972
The above parts group applies to the following Mfg. Nos.:
