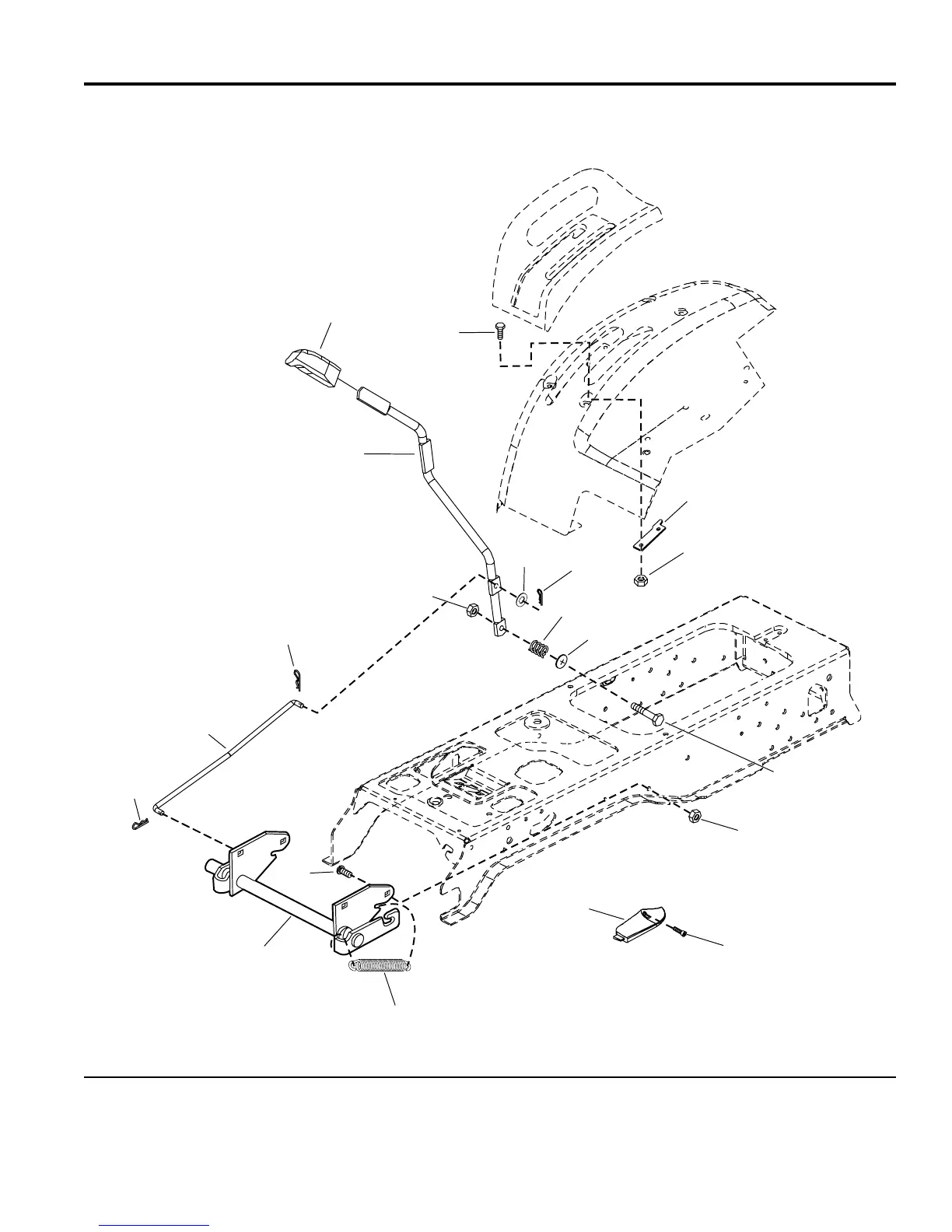

Simplicity 1600 Series User Manual

Lift Group - Manual Lift
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Install into left hand
side of lower dash.
4
5
3
6
1
9
2
8
10
13
14
11
18
17
16
5
12
5
7
15
986412
The above parts group applies to the following Mfg. Nos.:
2005
30
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694632 - Broadmoor
1694634 - 1620H
1694636 - 2620H
TP 400-4205-01-BM-SMA
