Simplicity 1600 Series User Manual

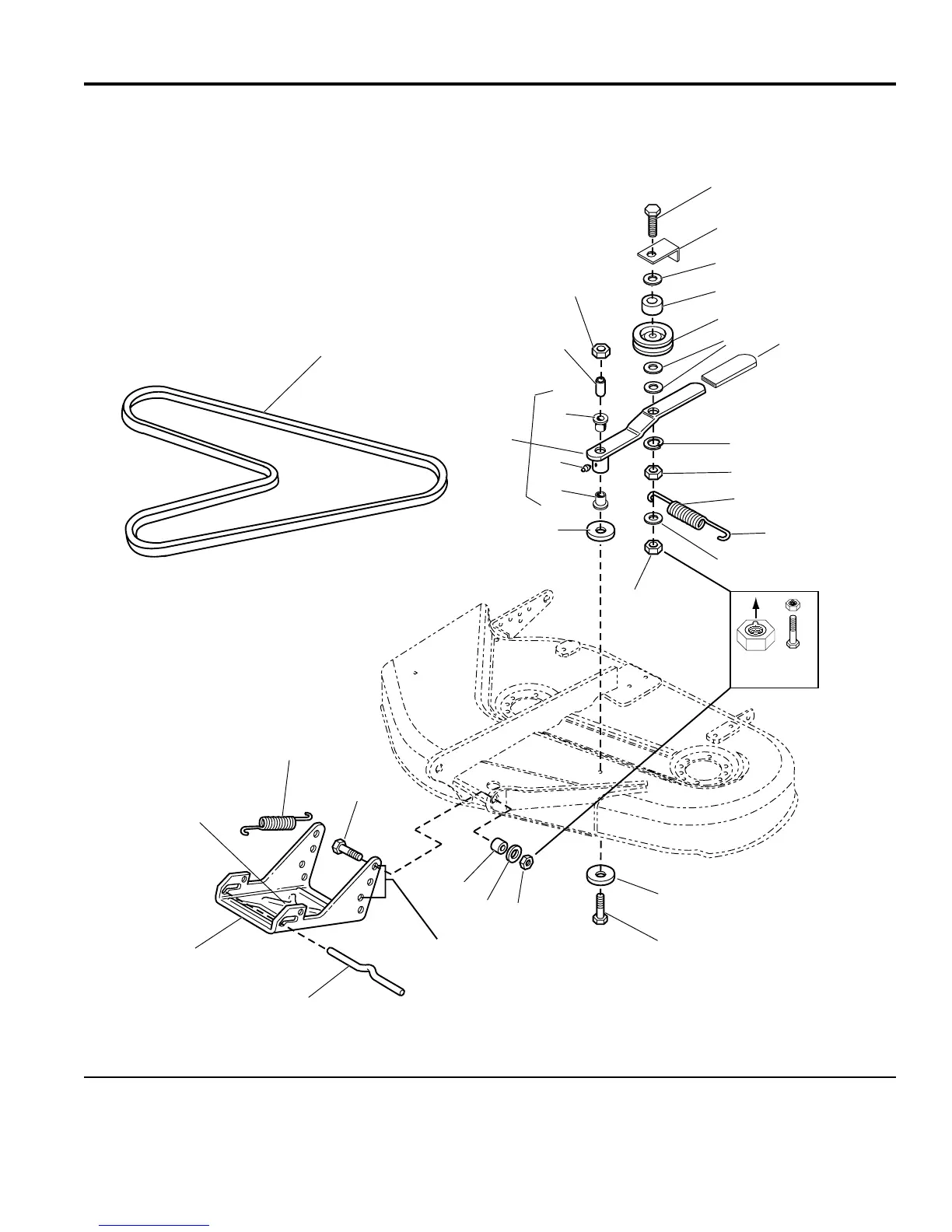

38" Mower Deck - Belt, Idler Arm & Hitch
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Insert Must
Face Out
Mount Hitch Assembly and
Leveling Adjustment Rod
using upper set of holes
Hook Spring
to Belt Guide
Hook Spring {Ref 22}
here when
assembled.
1
2
3
4
5
6
7
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
2
17
16
4
4
4
88
13
986056
The above parts group applies to the following Mfg. Nos.:
2005
40
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694036 - 38" Mower
1694042 - 38" Mower
TP 400-4205-01-BM-SMA
