Simplicity 1693080 User Manual

See Before Before Every Every 25 Every 100 Spring
Safety Items Page First Use Each Use 5 Hours Hours Hours & Fall
Check safety interlock system. 7 ● ●
Check tractor brakes. 22 ● ●
Check mower blade brake. 25 ●●
Normal Care Items
Check tractor/ mower for loose hardware. – ●●●
Check engine oil level. * ●●● ●
Check engine air filter. * ***●
Change engine oil and filter. ** * ***Every 50 hrs. ***●
Lubricate tractor & mower. 13 ***●
Check tire pressure 11 ●● **●
Change transmission fluid. (Hydro only) **** 15 After the first 50 hours, then every 250 hours
Check fuel filter. 12 ●
Clean battery & cables 15 ●
Clean/sharpen blades. 16 ●
Inspect or replace spark plug(s). * ●
Check belt tension. * ●●
* See the engine manufacturer's owner's manual.
** Change original engine oil after first 5 hours of operation.
*** More often in hot (over 85° F: 30° C) weather or dusty operating conditions.
11
Normal Care

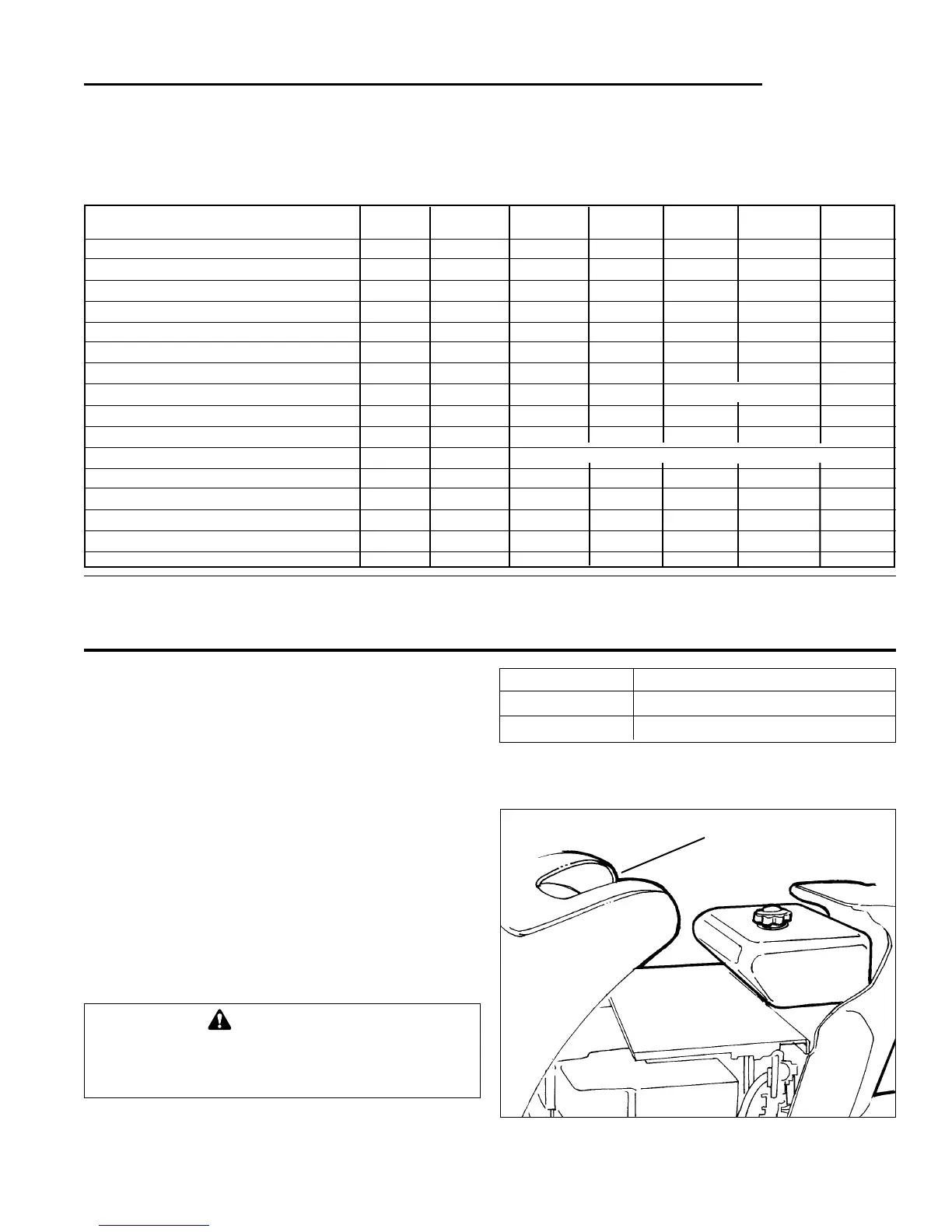

MAINTENANCE SCHEDULE
The following schedule should be followed for normal care of your tractor and mower. You will need to keep a record
of your operating time. Determining operating time is easily accomplished by multiplying the time it takes to do one
job by the number of times you’ve done the job, or you can install the optional hour meter.
CAUTION
Do not run the engine with the hood raised.
Engine heat will cause damage to the headlight
bezel and hood.
Figure 9. Gas Tank Located Under Hood
Hood recess
Tire Pressure
Front
12 - 15 psi (82 - 103 kPa)
Rear
10 - 12 psi (56 - 82 kPa)
TIRE PRESSURE
Tire pressure should be checked periodically, and main-
tained at the levels shown in the chart at right. Note that
these pressures differ slightly from the “Max Inflation”
stamped on the side-wall of the tires. The pressures
shown in the chart provide proper traction, improved cut
quality, and extended tire life.
RAISING THE HOOD & SEAT
1. To raise the hood, grasp the hood recess (Figure 9)
on top, then pivot the hood up and forward.
2. To raise the seat for battery access, tilt the seat for-
ward.

Simplicity 1693080 Specifications

General

Brand	Simplicity
Model	1693080
Category	Lawn Mower
Language	English
