14

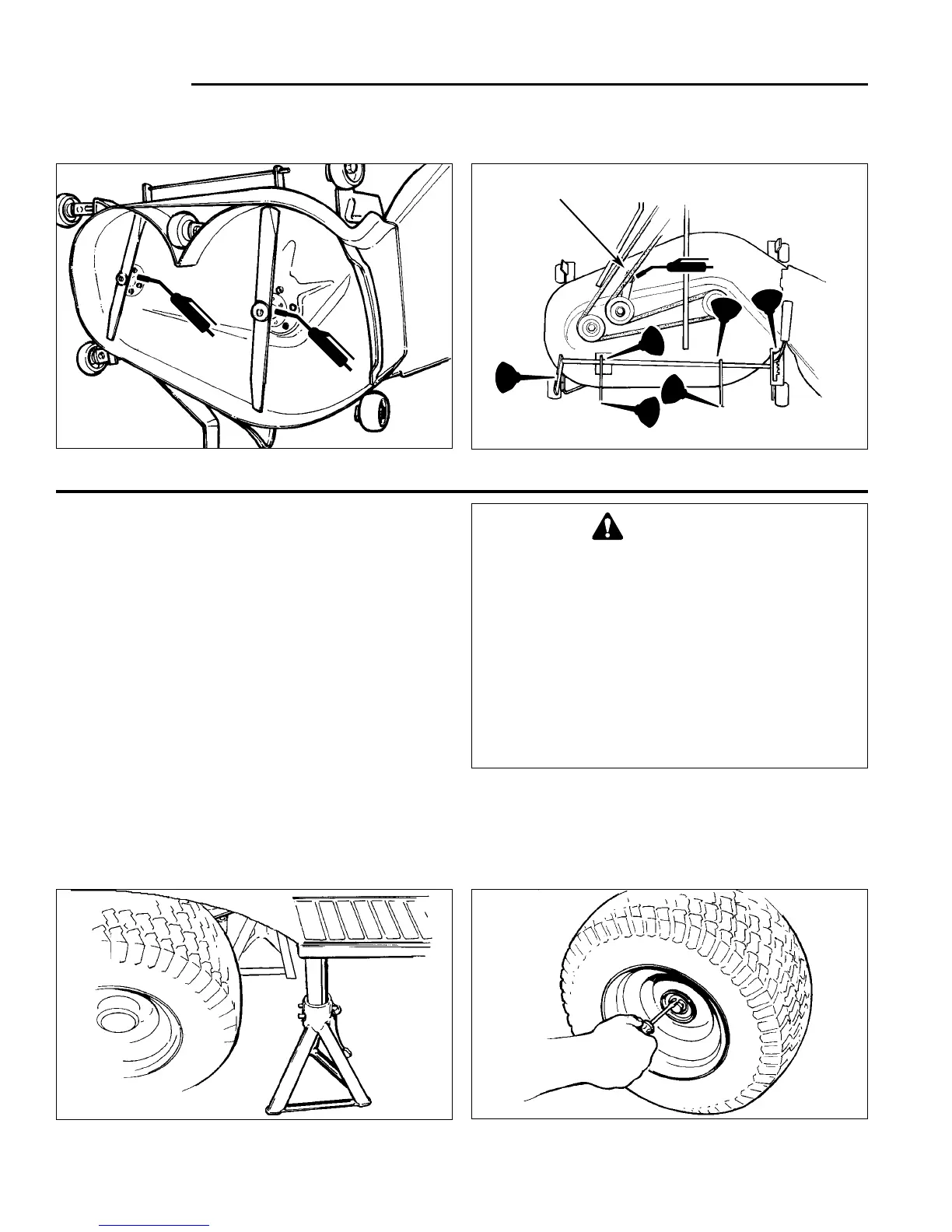

Figure 15. Lubricating Mower Deck (38” shown)
Figure 16. Lubricate Deck Linkage (38” shown)
Normal Care
01
Idler Arm Pivot
Lubrication (Continued).
LUBRICATE THE AXLE SHAFTS
We recommend removing the rear wheels and lubricat-
ing the axle shafts yearly. This prevents the wheel from
seizing onto the axle shaft, making future service easier.
1.Remove the key and disconnect the spark plug wire
while working on the unit.
2.Engage the parking brake and block the front wheels.
3.Using a jack or chain hoist positioned at the center of
the rear frame, carefully jack the unit up until the rear
tires are approximately 1" - 2" off the ground.
NOTE: For overall unit stability during service, do not
jack rear end higher than required for wheel removal.
4. Support the rear of the unit on jackstands positioned
under the rear frame (see Figure 17).
5. Remove the plastic hub cap/axle cap.
6. Remove e-ring using a screwdriver (see Figure 18).
7. Remove the washers and wheel assembly.
8. Lubricate the axle shaft with anti-seize compound.
9. Reinstall components in reverse order of disassembly
and lower the unit.
Figure 17. Supporting the Tractor
WARNING
PREVENT SERIOUS INJURY OR
DEATH FROM FALLING UNIT
Always use a properly working lifting device with
a capacity suitable for the weight of the unit
being serviced.
Always use a jack stand to support the unit while
performing service, and chock remaining wheels
to prevent the unit from rolling off the supports.
Never work under or around an elevated unit that
is not properly supported and secured in posi-
tion with wheel chocks.
NOTE: Gear drive models also have grease zerks locat-
ed in the transmission casing beneath the axle bearings.
Lubricate the grease zerks once a year.
Figure 18. Rear Wheel Removal
To Next Page
