Install Latch & Hinge
9
A
F
B

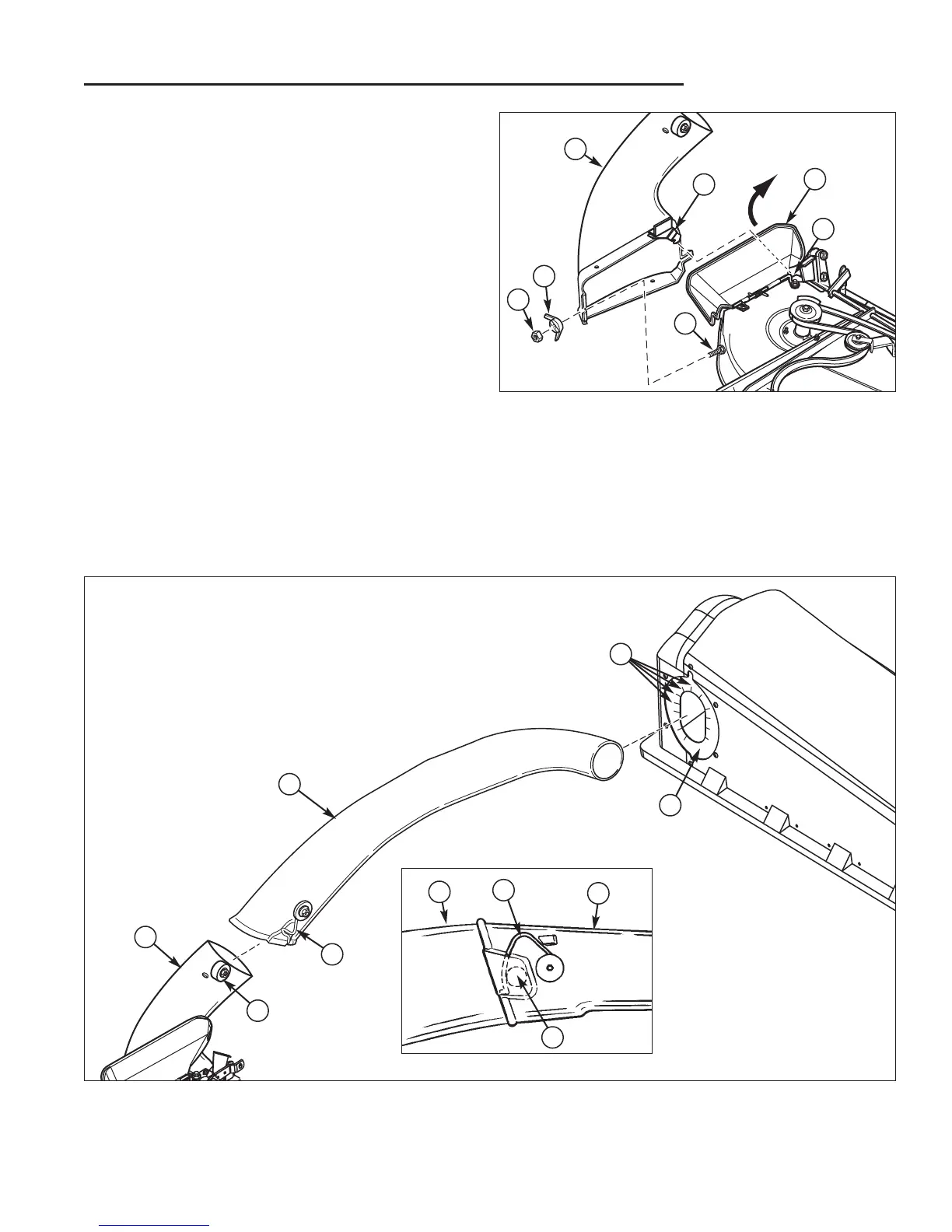

Figure 12. Install Lower Discharge Chute A
A. Lower Chute
B. Wing Nut
C. Rubber Strap
D. Carriage Bolt
E. Discharge Deflector
F. Deflector Hinge Rod
G. Bracket
LOWER DISCHARGE CHUTE INSTALLATION
1. Lift discharge deflector up (E, Figure 12).
2. Slide the notch of bracket (G) on to deflector hinge
rod (F).
3. Secure the front of lower chute (A) to carriage bolt
(D) using wing nut (B).
Note: Locknut (C) is intended to keep wing nut (B)
permanently on carriage bolt (D).
CONNECTING DISCHARGE TUBE
1. Slide discharge tube (B, Figure 13) into seal (C). It
may be necessary to lengthen several slits (F) in
order for tube (A) to fit into seal (B)
2. Attach the discharge tube (B, Figure 13 and Inset) to
lower chute (A) and secure the tube by moving wire
form (E) down over metal puck (D).
D
A
B
C
Figure 13. Install Discharge Tube
A. Lower Chute
B. Discharge Tube
C. Seal
D. Puck, Metal
E. Wire Form
F. Slits
D
C
E
G
A
B
E
D
E
F
