Normal Removal &
Installation
10
Normal Removal & Installation
Collector Installation
Note: See previous pages for more detailed installation
and operation instructions if necessary.
1. Lift discharge deflector up (E, Figure 14).
2. Slide the notch of bracket (G) on to deflector hinge
rod (F).
3. Secure the front of lower chute (A) to carriage bolt
(D) using wing nut (B).
4. Mount the hitch support assembly (A, Figure 15) onto
rear tractor frame.
5. Attach cover (B) to support assembly using pins (C)
and hair pins(D).
6. Pivot cover (B) up. Install bags (E) with white bar (F)
towards the rear.
7. Slide discharge tube (J) into seal (L).
8. Attach the discharge tube (J) to boot (H) and secure
the tube by moving wire form (K) down over metal
puck (I).
A
F
B

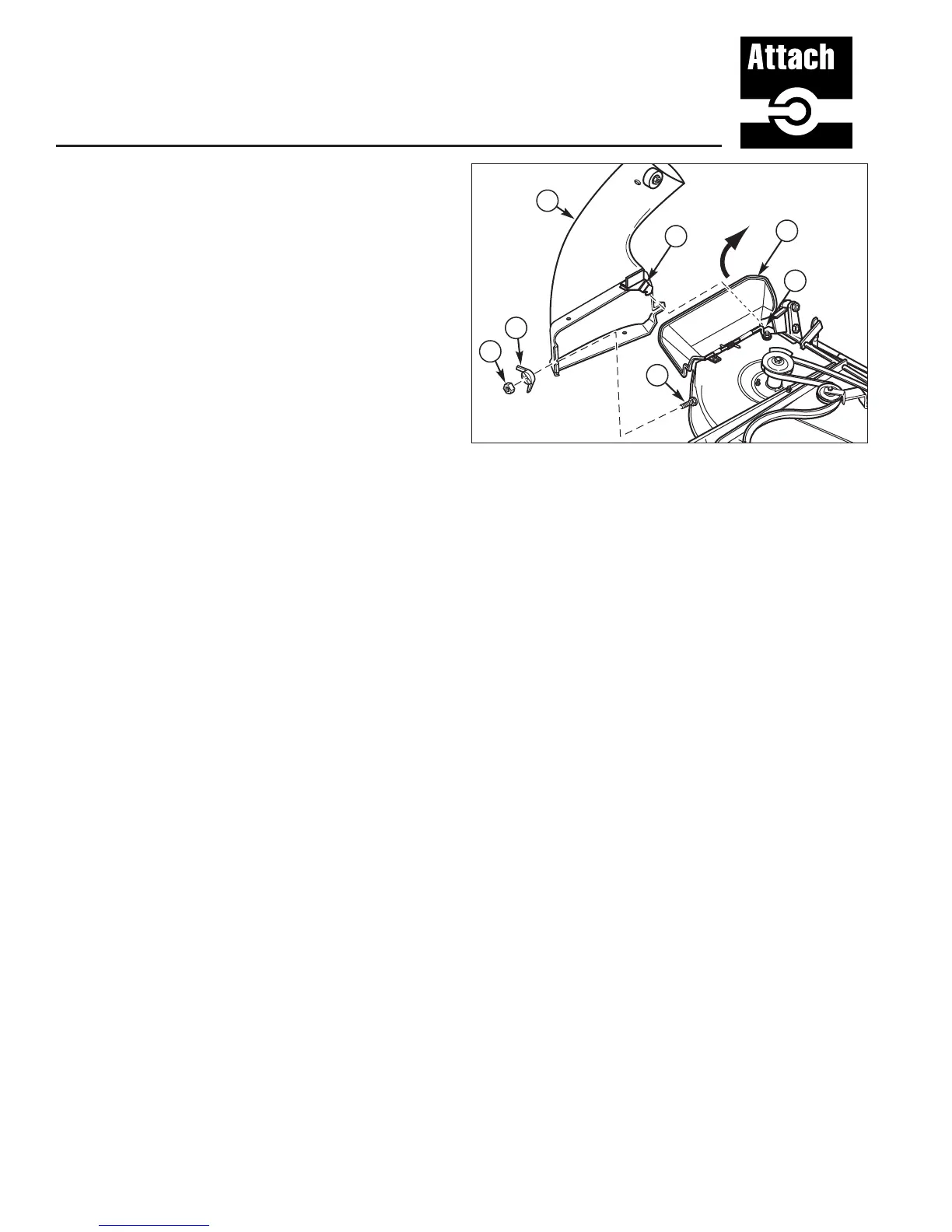

Figure 14. Install Lower Discharge Chute 38” Free
Floating Mowers
A. Lower Chute
B. Wing Nut
C. Rubber Strap
D. Carriage Bolt
E. Discharge Deflector
F. Deflector Hinge Rod
G. Bracket
D
C
E
G
To Next Page
