Normal Removal
11
A. Hitch Support Assembly H. Boot
B. Cover I. Puck
C. Pins J. Discharge Tube
D. Hair Pins K. Wire Form
E. Bag L. Seal
F. Grass Bag Hanger
E
B

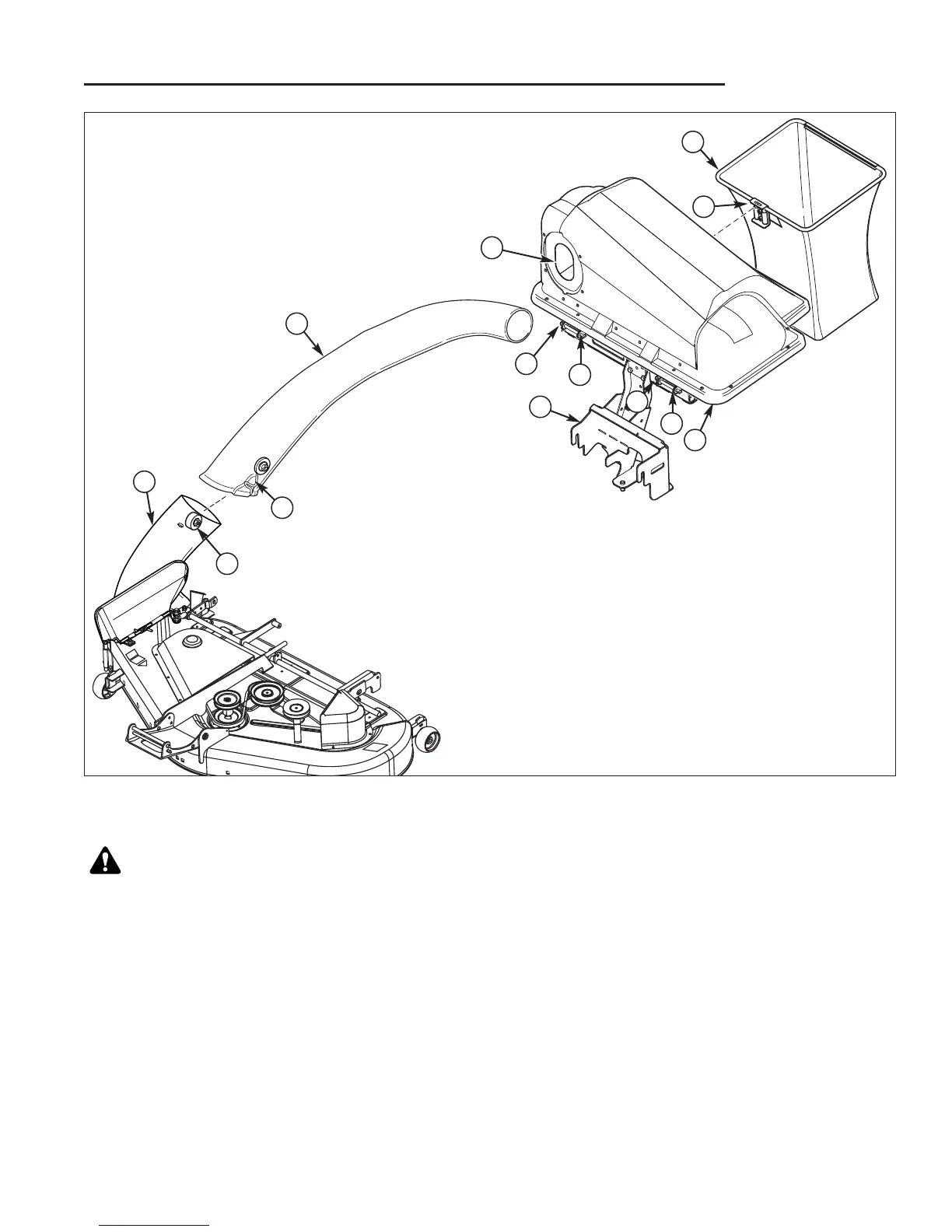

Figure 15. Normal Installation & Removal
C
L
A
Collector Removal
1. Disconnect the discharge tube (J, Figure 15) from
boot (H) by moving wire form (K) up and out from
metal puck (I). Remove discharge tube (J) from seal
(L).
2. Remove hair pin clips (D) and pins (C). Remove
cover (B). To prevent lost parts replace pins (C) and
hair pins (D) see Figure 10.
WARNING
OPERATION WITHOUT BAGGER
For operation without bagger, the mower
deflector MUST be properly installed in the down
position and retained by the spring latch.
3. Remove and empty bags (E, Figure 15).
4. Lift discharge deflector up (E, Figure 14).
5. Loosen wing nut (B).
6. Slide lower chute (A) off carriage bolt (D) and
deflector hinge rod (F).
J
H
K
I
D
F
C
D
