Simplicity 1695168 - Components Installation; Bracket and Pin Installation on Lower Chute; Install Upright Support to Hitch

6
Components Installation

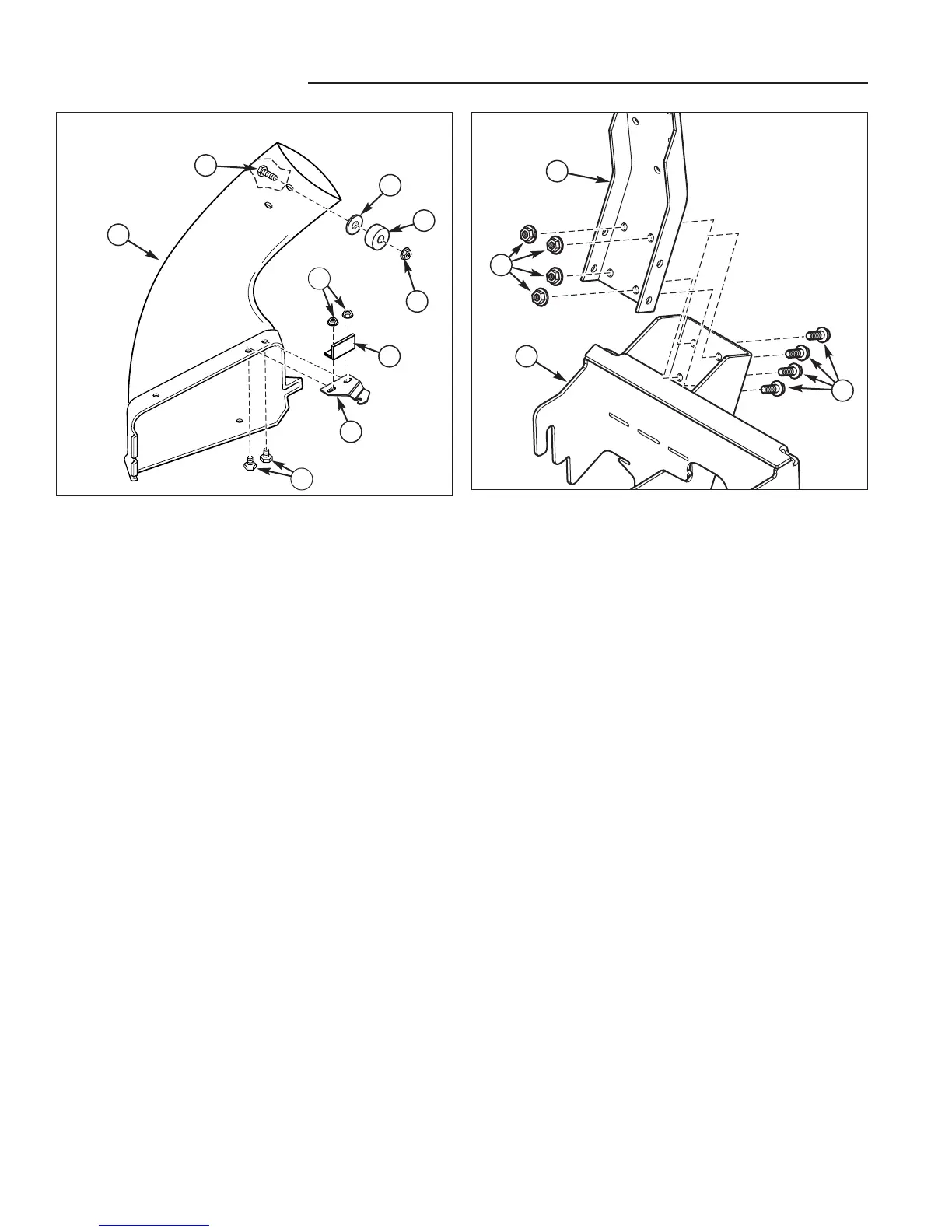

Figure 7. Install Pin and Bracket
A. Lower Chute
B. Locknut, 1/4-20
C. Puck, Metal
D. Capscrews, Thin Head, 5/16-18 x 3/4
E. Locknuts, 5/16-18
F. Bracket
G. Defflector Prop
H. Washer, 5/16 x 1/2 Dia.
A
C
F
G
D
D
E
Component Installation
BRACKET AND PIN INSTALLATION ON LOWER CHUTE
1. Secure the puck (C, Figure 7) to lower chute (A)
using 5/16-18 x 3/4 capscrew (D), 5/16 x 1/2 washer
(H), and 5/16-18 locknut (E).
2. Install bracket (F) and deflector prop (G) to lower
chute (A) using 5/16-18 x 3/4 capscrews (D) and
5/16-18 locknuts (E).
F
Figure 8. Install Upright Support
A. Hitch
B. Upright Support
C. Capscrews, 3/8-16 x 1
D. Locknuts, 3/8-16
A
INSTALL UPRIGHT SUPPORT TO HITCH
1. Install the upright support (B, Figure 8) to hitch (A)
and secure with 3/8-16 x 1 capscrews (C) and
locknuts (D) as shown.
B
C
D
H
