Coronet / 2400 / RE 200 Series
11

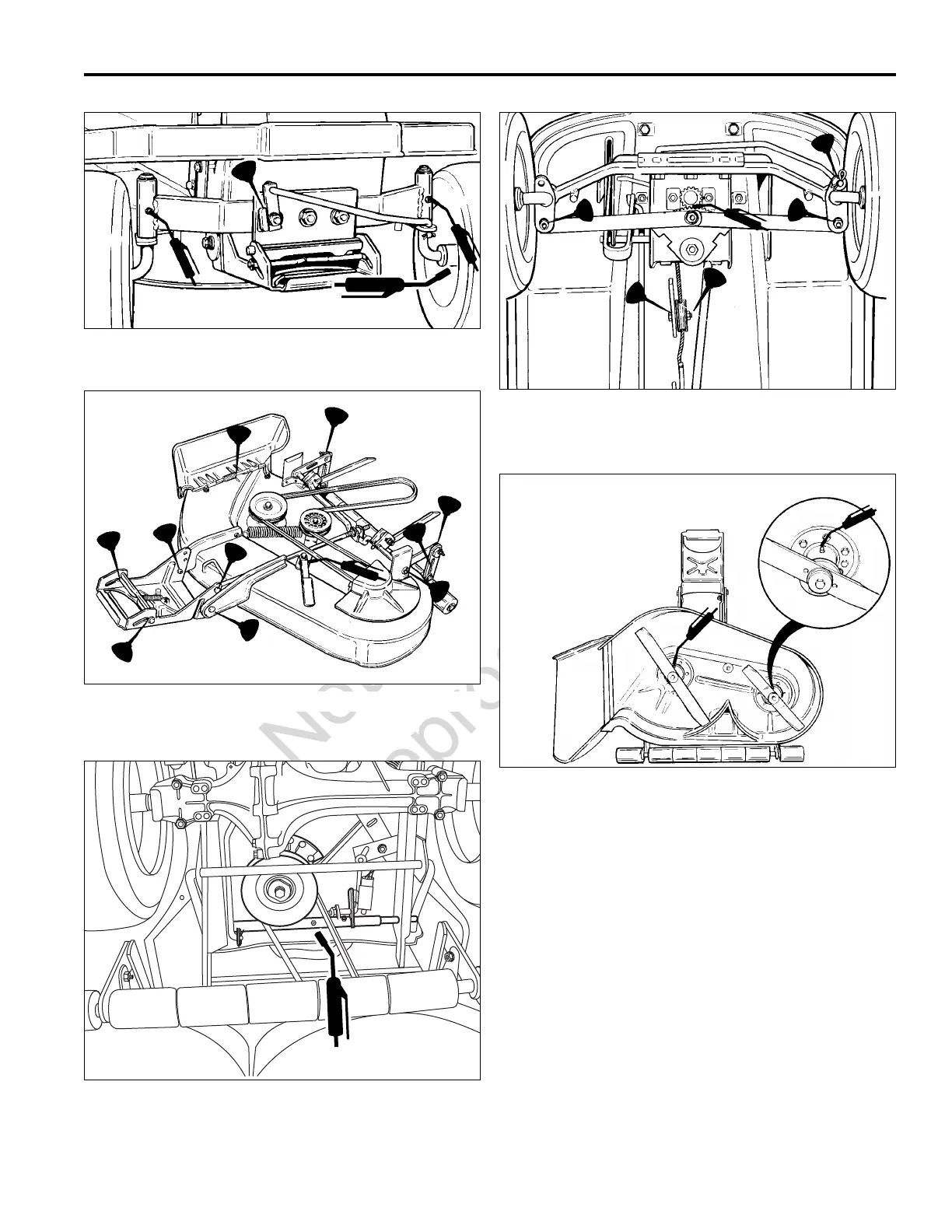

Figure 17. Rider Lubrication Points - Rear Half
Figure 16. Mower Deck Lubrication Points
Figure 18. Rider Lubrication Points - Front Half
Figure 19. Arbor Lubrication Points
Note: On 30” mower,
grease fitting is on
topside of deck.
Figure 15. Front Axle Lubrication Points
