Simplicity 5200 Series - Lubricating the Tractor

Normal Care
oil can is shown wipe the area clean, apply a
few drops of oil (S AE 30), then wipe up drips
or spills. Keep oil off belt and brake pads.
Figure 9. PTO Lever Lubrication
Figure 8. Opening the Seat Deck

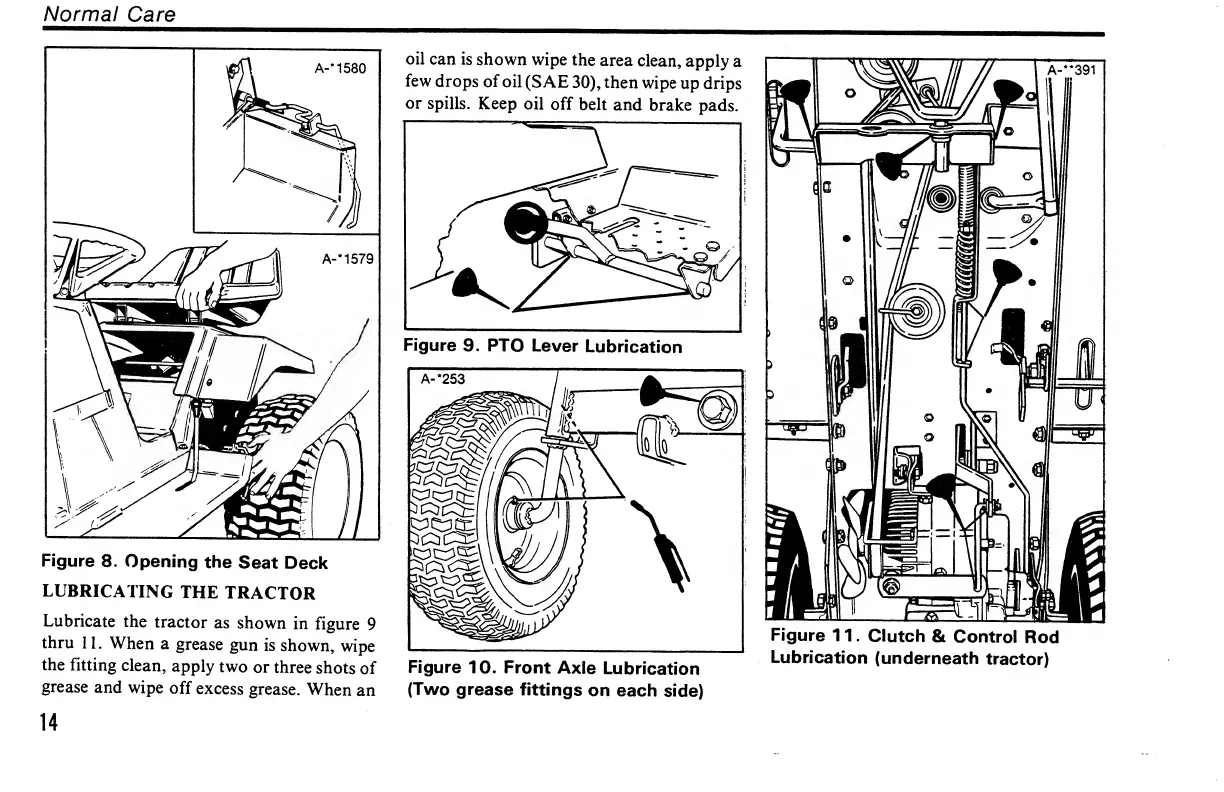

LUBRICATING THE TRACTOR
Lubricate the tractor as shown in figure 9
thru 11. When a grease gun is shown, wipe
the fitting clean, apply two or three shots of
grease and wipe off excess grease. When an
14
m
5353^
\
Figure 10. Front Axle Lubrication
(Two grease fittings on each side)
Ml
ill
flL:
Figure 11. Clutch & Control Rod
Lubrication (underneath tractor)
