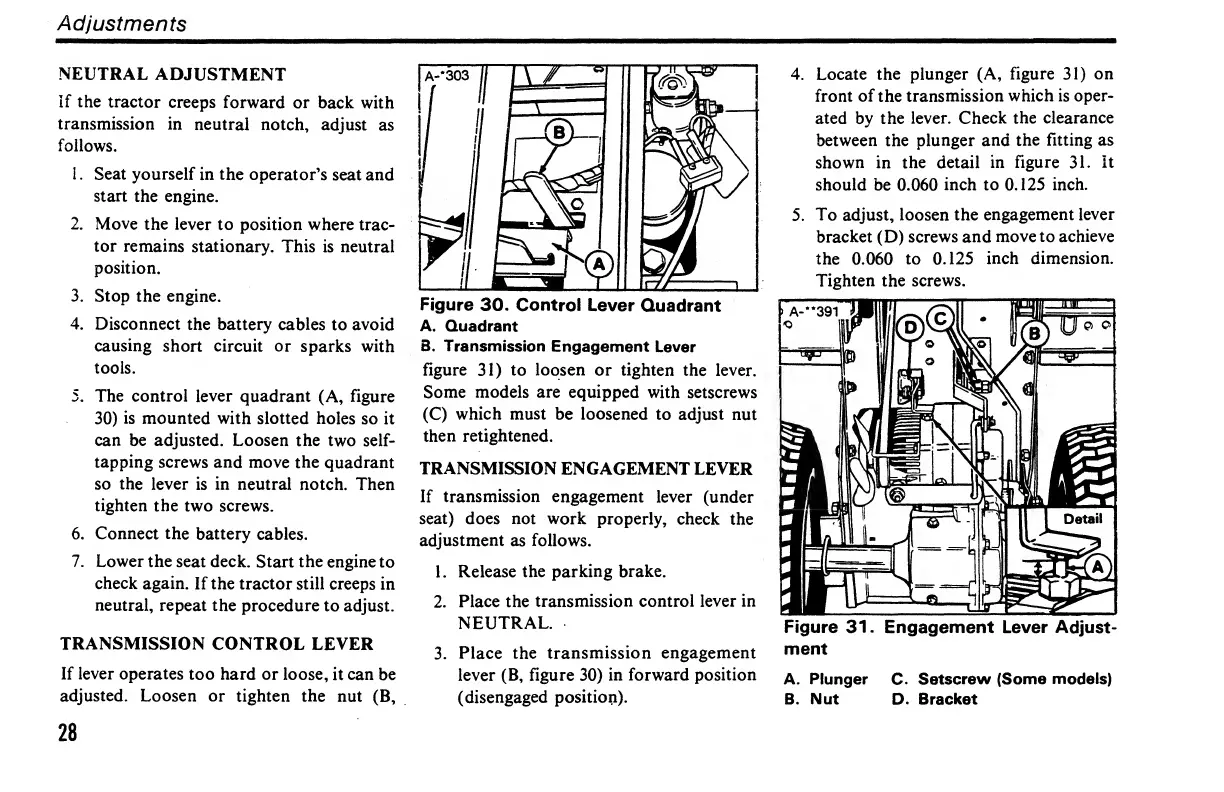

Adjustments
NEUTRAL ADJUSTMENT
If the tractor creeps forward or back with
transmission in neutral notch, adjust as
follows.
1. Seat yourself in the operator’s seat and
start the engine.
2. Move the lever to position where trac¬
tor remains stationary. This is neutral
position.
3. Stop the engine.
4. Disconnect the battery cables to avoid
causing short circuit or sparks with
tools.
5. The control lever quadrant (A, figure
30) is mounted with slotted holes so it
can be adjusted. Loosen the two self¬
tapping screws and move the quadrant
so the lever is in neutral notch. Then
tighten the two screws.
6. Connect the battery cables.
7. Lower the seat deck. Start the engine to
check again. If the tractor still creeps in
neutral, repeat the procedure to adjust.
TRANSMISSION CONTROL LEVER
If lever operates too hard or loose, it can be
adjusted. Loosen or tighten the nut (B,
28
Figure 30. Control Lever Quadrant
A. Quadrant
B. Transmission Engagement Lever
figure 31) to loosen or tighten the lever.
Some models are equipped with setscrews
(C) which must be loosened to adjust nut
then retightened.
TRANSMISSION ENGAGEMENT LEVER
If transmission engagement lever (under
seat) does not work properly, check the
adjustment as follows.
1. Release the parking brake.
2. Place the transmission control lever in
NEUTRAL.
3. Place the transmission engagement
lever (B, figure 30) in forward position
(disengaged position).
4. Locate the plunger (A, figure 31) on
front of the transmission which is oper¬
ated by the lever. Check the clearance
between the plunger and the fitting as
shown in the detail in figure 31. It
should be 0.060 inch to 0.125 inch.
5. To adjust, loosen the engagement lever
bracket (D) screws and move to achieve
the 0.060 to 0.125 inch dimension.
Tighten the screws.
■ yi
In
i
n
iii
Figure 31. Engagement Lever Adjust¬
ment
A. Plunger C. Setscrew (Some models)
B. Nut D. Bracket
