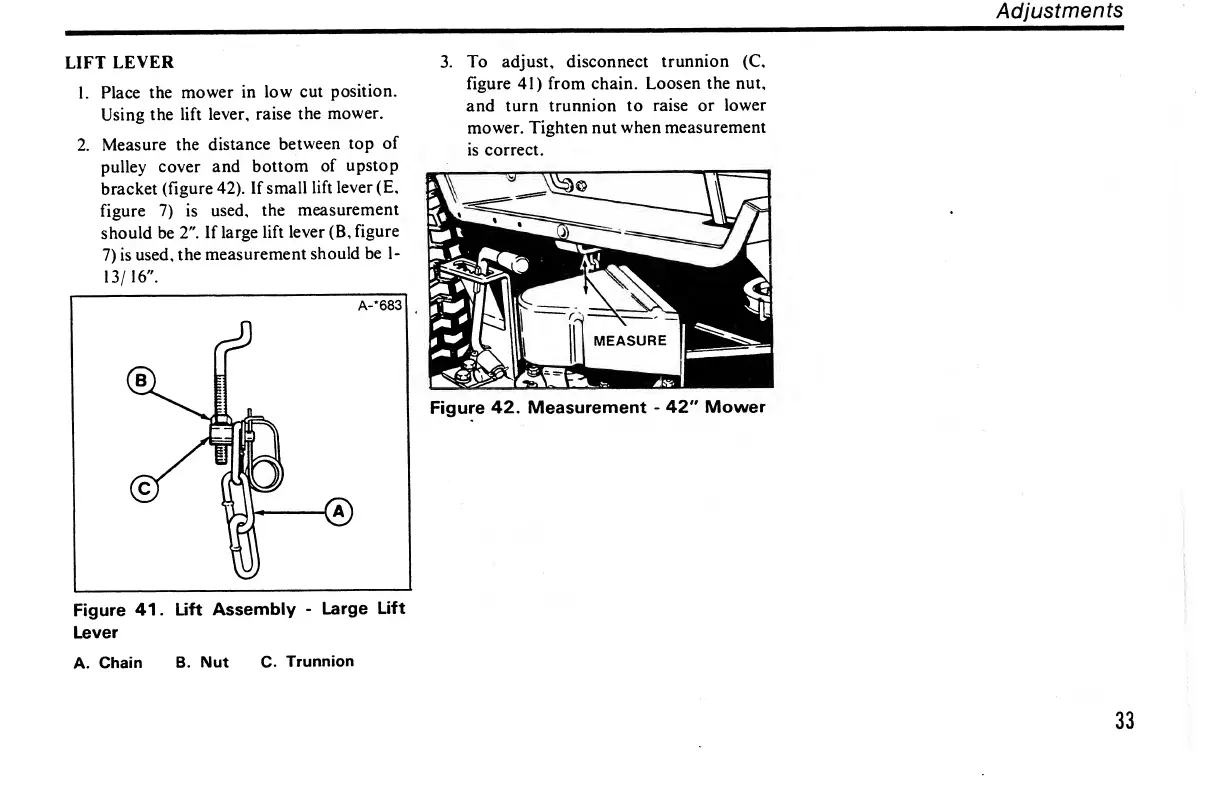

LIFT LEVER
1. Place the mower in low cut position.
Using the lift lever, raise the mower.
2. Measure the distance between top of
pulley cover and bottom of upstop
bracket (figure 42). If small lift lever (E,
figure 7) is used, the measurement
should be 2". If large lift lever (B, figure
7) is used, the measurement should be 1-
13/16".
Figure 41. lift Assembly - Large Lift
Lever
A. Chain B. Nut C. Trunnion
3. To adjust, disconnect trunnion (C,
figure 41) from chain. Loosen the nut,
and turn trunnion to raise or lower
mower. Tighten nut when measurement
is correct.
Figure 42. Measurement - 42" Mower
