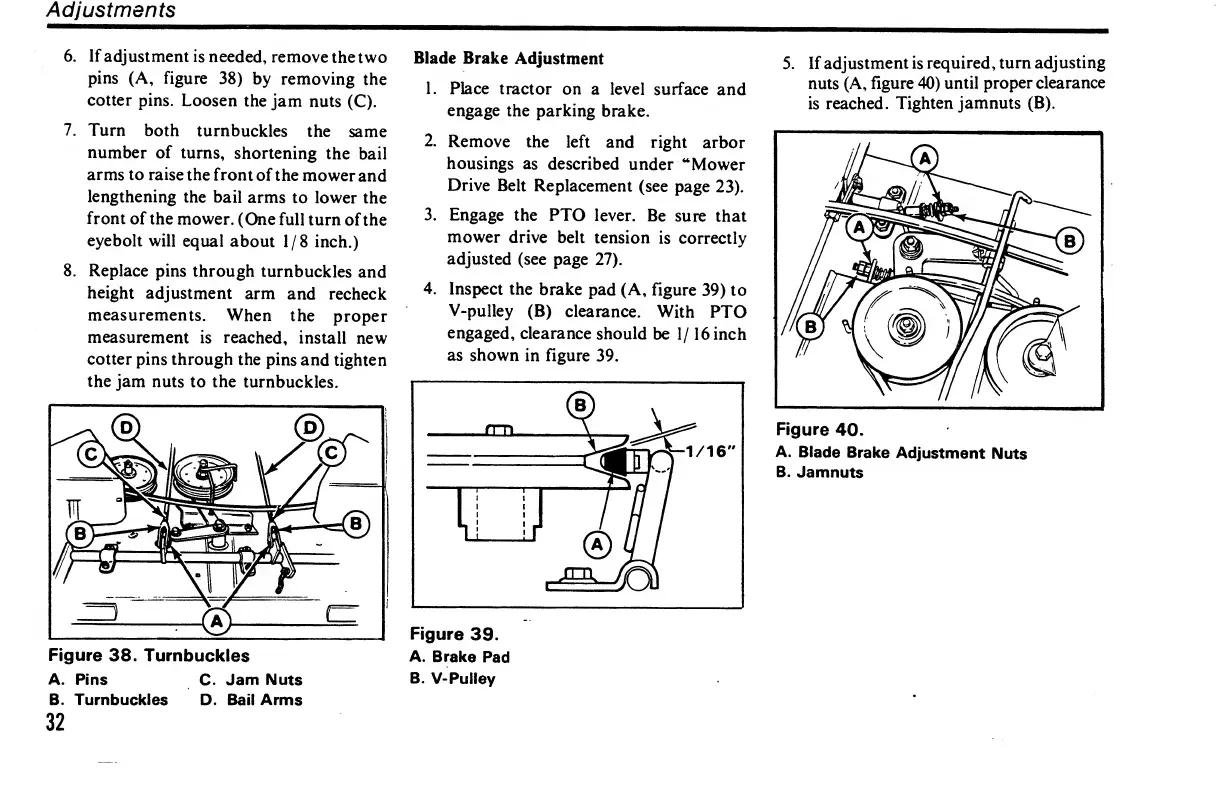

Adjustments
6. If adjustment is needed, remove the two
pins (A, figure 38) by removing the
cotter pins. Loosen the jam nuts (C).
7. Turn both turnbuckles the same
number of turns, shortening the bail
arms to raise the front of the mower and
lengthening the bail arms to lower the
front of the mower. (One full turn of the
eyebolt will equal about 1/8 inch.)
8. Replace pins through turnbuckles and
height adjustment arm and recheck
measurements. When the proper
measurement is reached, install new
cotter pins through the pins and tighten
the jam nuts to the turnbuckles.
Figure 38. Turnbuckles
A. Pins C. Jam Nuts
B. Turnbuckles D. Bail Arms
32
Blade Brake Adjustment
1. Place tractor on a level surface and
engage the parking brake.
2. Remove the left and right arbor
housings as described under “Mower
Drive Belt Replacement (see page 23).
3. Engage the PTO lever. Be sure that
mower drive belt tension is correctly
adjusted (see page 27).
4. Inspect the brake pad (A, figure 39) to
V-pulley (B) clearance. With PTO
engaged, clearance should be 1/16 inch
as shown in figure 39.
Figure 39.
A. Brake Pad
B. V Pulley
5. I f adjustment is required, turn adjusting
nuts (A, figure 40) until proper clearance
is reached. Tighten jamnuts (B).
Figure 40.
A. Blade Brake Adjustment Nuts
B. Jamnuts
