14
STEP 19a
Standard Drainage System
STEP 19b
Capping off the Fixings
STEP 20
Applying the Stickers
Drill a hole 45mm diameter using a hole saw in the gutter section where your downpipe is to be
located, Insert the outlet into the hole and tighten. Push the downpipe in to the gutter section below
the hole over the outlet. Using the downpipe clips provided secure to one of the posts or the wall
depending on the position of your outlet.
Using the supplied caps, ensure the fixings have been capped off and the structure has been
cleaned.
When applying the logo ensure to fix one at each end.
STEP 21
Fitting the Gutter Support Channel
If supplied, then the Gutter Support channel (see profile image) fits directly underneath the Gutter
Channel. It is held in place by using No12 x 1 ¼ drill screws every 300mm directly through the
flange on both the outside and inner face.
STEP 21a
Fitting the Gallows Brackets
Once the Gutter Support Channel is fitted you can now fit the Gallows Brackets.
Using 2 x No12 x 1”1/4 drill screws fix the Gallows brackets directly into the post and then into the
support channel you have previously fitted. See photo below. Using caps provided cap off all screw
heads. Please see images overleaf.

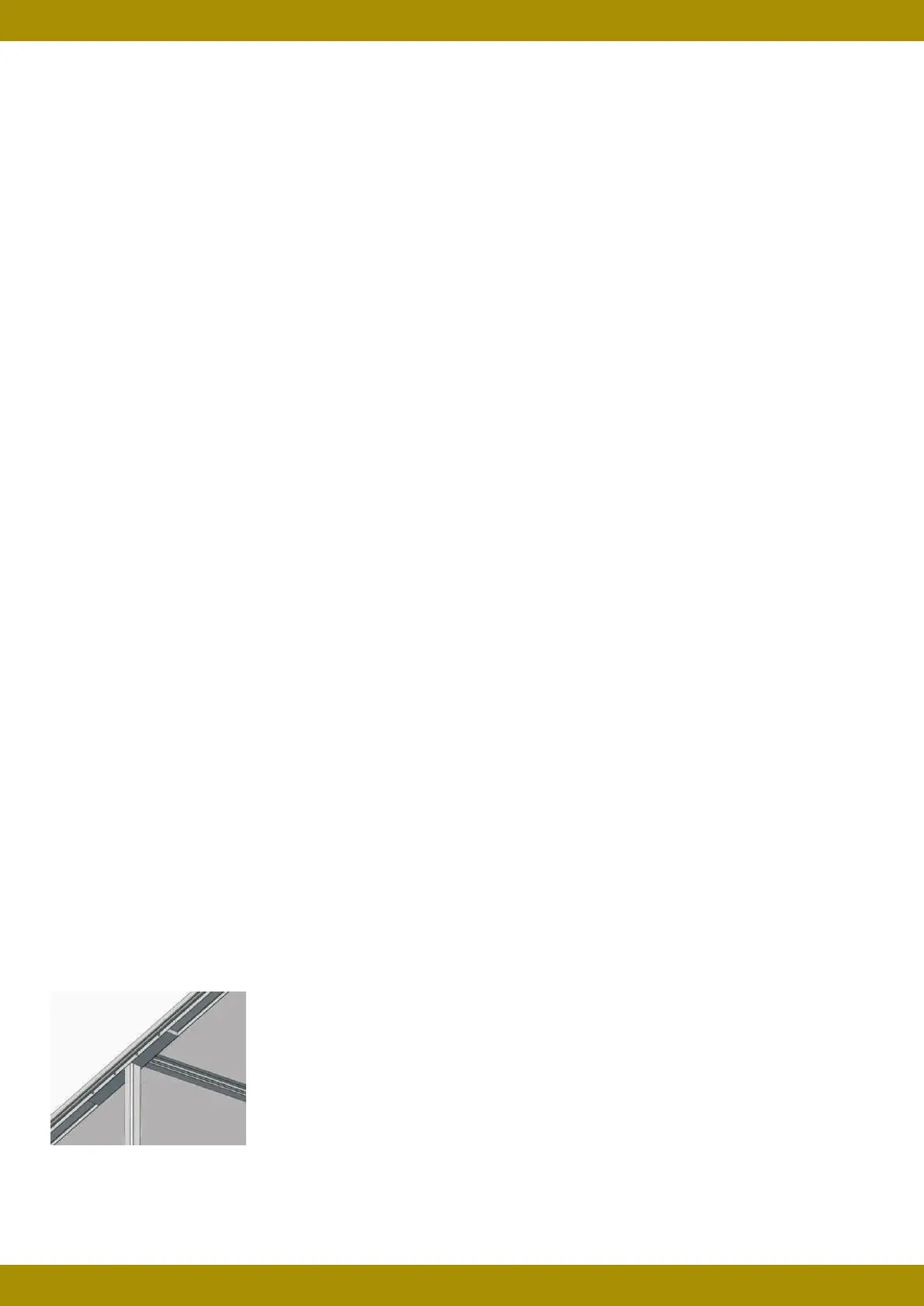

Image shows gutter channel fitted.
