Simplicity 759 3415H - Page 25

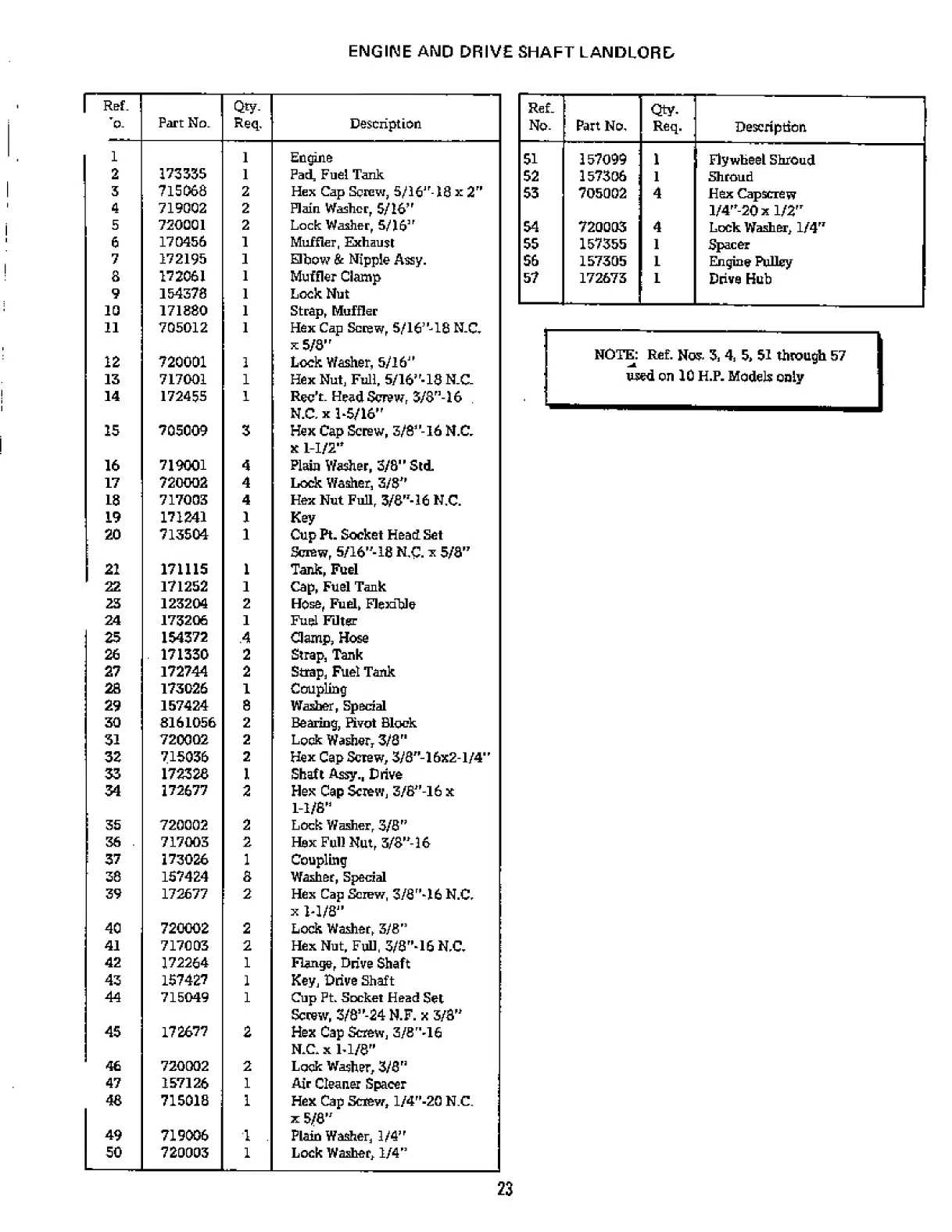

ENGINE AND DRIVE SHAFT LANDLORD
1 Ref.
t q.
Part No.
Qty.
Req,
Description
1
1 Engine
2 173335 1 Pad, Fuel Tank
3 715068 2
Hex Cap Screw, 5/16"-18 x 2”
4 719002 2
Plain Washer, 5/16"
5 720001 2
Lock Washer, 5/16"
6
170456 1
Muffler, Exhaust
7 172195 1
Elbow & Nipple Assy.
3 172061
1
Muffler Clamp
9 154378 1 Lock Nut
10 171880 1 Strap, Muffler
11 705012 1
Hex Cap Screw, 5/16"-18 N_C,
x 5/8"
12 720001 1 Lock Washer, 5/16"
13 717001 1
Hex Nut, Full, 5/16"-18 N.C.
14 172455 1
Rec't. Head Screw, 3/S"-16
N.C.x 1*5/16"
15 705009 3 Hex Cap Screw, 3/8"-16 N.C,
x 1-1/2"
16 719001 4 Plain Washer, 3/8" Std.
17 720002 4 Lock Washer, 3/0"
IS
717003 4
Hex Nut Full, 3/8"-16 N.C.
19 171241 1 Key
20 713504 1 Cup Pt. Socket Head Set
Screw, 5/16"-IS N,C. x 5/8"
21 171115 1
Tank, Fuel
22 171252 1 Cap, Fuel Tank
23 123204 2
Hose, Fuel, Flexible
24 173206 1
Fuel Filter
25
154372
.4 Gamp, Hose
26 171330 2 Strap, Tank
27 172744 2 Strap, Fuel Tank
23 173026 1 Coupling
29
157424 8 Washer, Special
30 SI61056 2
Bearing, Pivot Block
31
720002 2
Lock Washer, 3/8"
32 715036
2
Hex Cap Screw, 3/8"-16x2-l/4"
33 172325 1
Shaft Assy., Drive
34
172677
2 Hex Cap Screw, 3/8"-l6x
1-1/8"
35 720002 2
Lock Washer, 3/0”
36 717003 2
Hex Full Nut, 3/8"-16
37
173026 1 Coupling
38 157424 8 Washer, Special
39 172677 2
Hex Cap Screw, 3/8”-16 N.C.
x M/8"
40 720002 2 Lock Washer, 3/0"
41 717003 2
Hex Nut, Full, 3/8”-16 N.C
42 172264 1
Flange, Drive Shaft
43
157427
1 Key, Drive Shaft
44 715049 1
Cup Pt. Socket Head Set
Screw, 3/8”-24 N.F. x 3/8"
45
172677
2
Hex Cap Screw, 3/8 r , -16
N.C. x M/8”
46
720002 2
Lock Washer, 3/8"
47
157126
1
Air Cleaner Spacer
46 715018 1 Hex Cap Screw, l/4”-20 N.C.
x 5/8"
49 719006 1 . Plain Washer, 1/4"
50 720003 1 Lock Washer, 1/4"
Ref.
No. Part No,
Qty.
Req.
Description
51 157099 1
Flywheel Shroud
52 157306 1 Shroud
53 705002 4
Hex Capscrew
l/4"-20x 1/2"
54 720003 4
Lock Washer, 1/4"
55 157355 1
Spacer
56 157305 1
Engine Pulley
57 172673 1
Drive Hub
NOTE: Ref. Nos. 3, 4, 5, 51 through 57
used on 10 H.P. Models only
23
