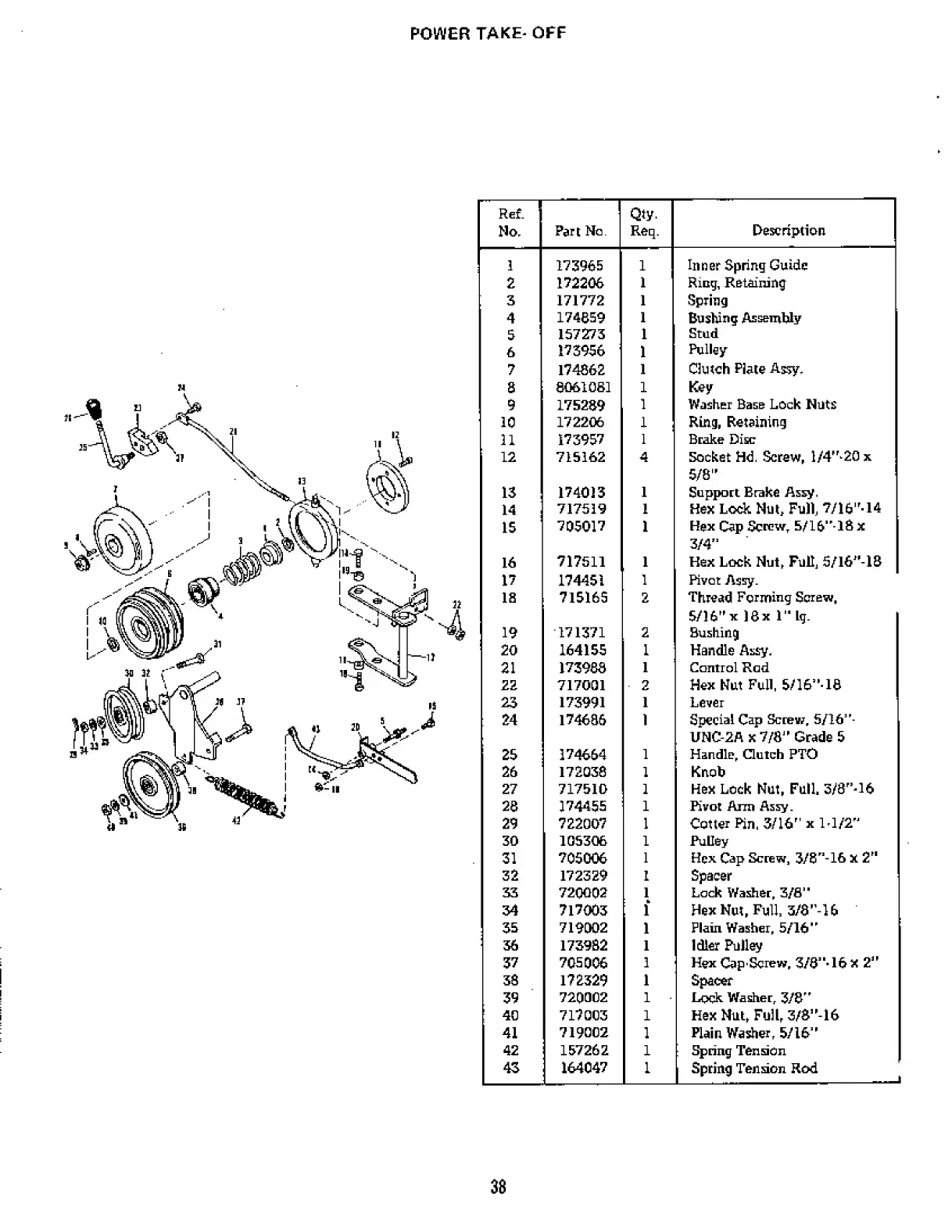

POWER TAKE- OFF
Ref.
No,
Pari No.
Qty.
Req. Description
1 173965 1 Inner Spring Guide
2 172206
1 Ring, Retaining
3 171772 1 Spring
4 174659
1
Bushing Assembly
5
157 273 1
Stud
6
173956
1
Pulley
7 174862
1
Ciutch Plate Assy,
0
6061061 1 Key
9
175269
1 Washer Base Lock Nuts
10
172206 1
Ring, Retaining
11
173957 1 Brake Disc
12 715162 4
Socket Hd. Screw, l/4"‘20 x
5/8”
13 174013
1 Support Brake Assy.
14
717519 1
Hex Lock Nut, Full, 7/16”-14
15
705017
1
Hex Cap Screw, 5/16”-l&x
3/4”
16
717511 1 Hex Lock Nut f Full, 5/l6”-l&
17
174451
1 Pivot Assy.
IS 715165 2
Thread Forming Screw,
5/16" x 16x l" Lg.
19
171371 2 Bushing
20 164155 1 Handle Assy,
21 173966
1 Control Rod
22 717001 2
Hex Nut Full, 5/l&”16
23 173991
1 Lever
24 174686 1
Special Cap Screw, 5/16”-
UNC-2A x 7/8” Grade 5
25 174664
1 Handle, Clutch PTO
26 172038 1 Knob
27 717510 1 Hex Lock Nut, Full, 3/8"'16
26 174455 1 Pivot Arm Assy.
29 722007 1
Cotter Pin, 3/16 N x M/2"
30 105306 1 Pulley
31 705006
1 Hex Cap Screw, 3/8"-16 x 2"
32 172329 I Spacer
33
720002
1 Lock Washer, 3/8"
34 717003 1 HexNut, Full, 3/8'-16
35
719002
1
Plain Washer, 5/16”
36 173982 1 Idler Pulley
37
705006
1 Hex Cap Screw, 3/8"-16 x 2”
38
172329
1 Spacer
39
720002 1
Lock Washer, 3/8”
40 717003 1 Hex Nut, Full, 3/8”-16
41
719002
1
Plain Washer, 5/16”
42 157262 1 Spring Tension
43
164047
1 Spring Tension Rod ^
38
