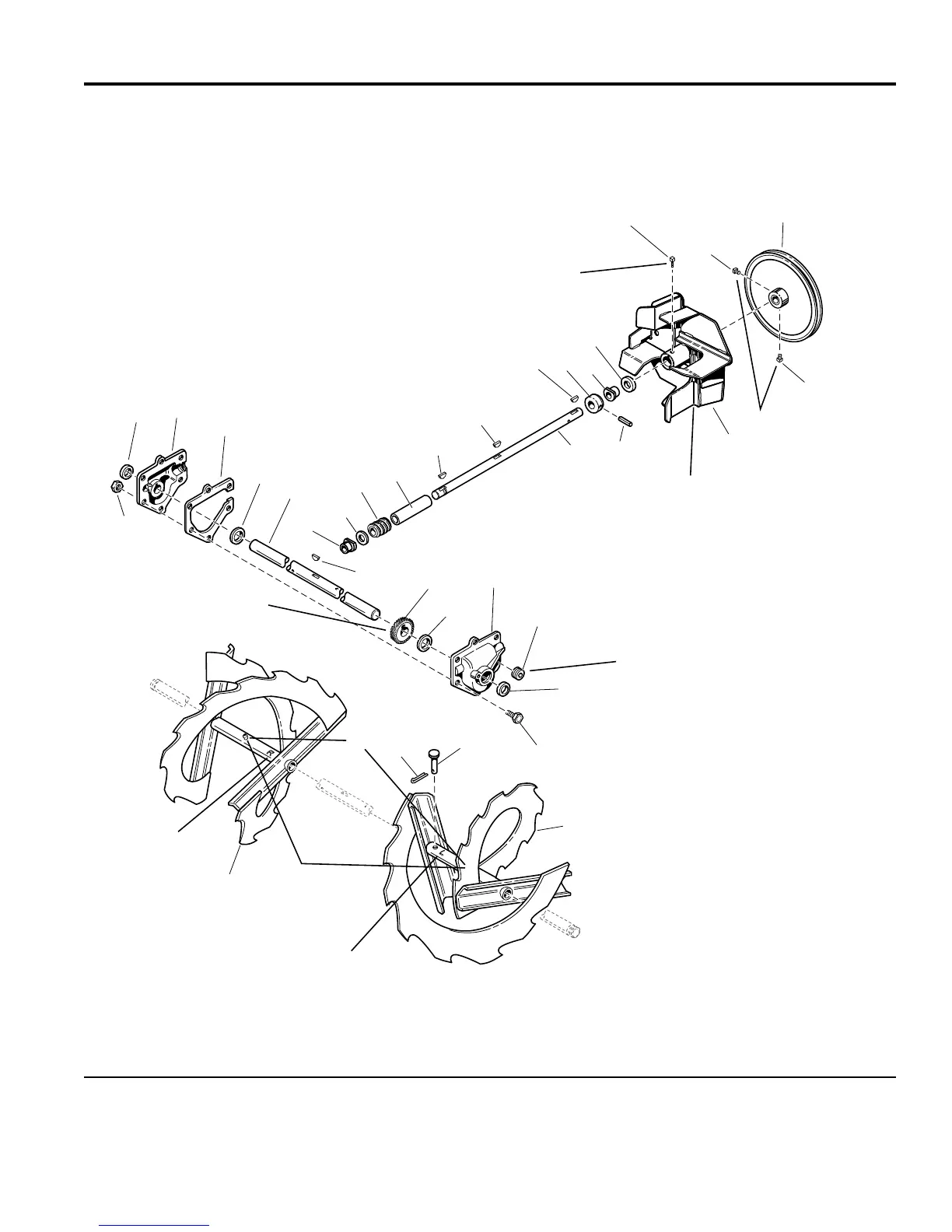

Auger and Impeller Group - 24"
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
End of hub to be flush
with end of rolled down
shaft (Ref. 9).
Torque to 30 -34 ft-lbs.
40 - 46 Nm.
Impeller to be positioned
against bearing before
tightening set screw.
Marked side of worm
gear must contact against
left thrust washer to assure
proper gear mesh.
Auger assembly
stamped "R".
Auger assembly
stamped "L".
Torque to
18-21 ft-lbs.
24 - 28 Nm.
Apply grease until
it appears at ends
of auger assembly
(2 places).
Torque to 9 - 11 ft-lbs.
12- 15 Nm.
1
2
3
4
5
6
7
8
9
10
12
13
14
15
16
17
18
19
20
21
22
23
24
25
28
27
2
10
10
6
26
14
18
11
2929
985466
The above parts group applies to the following Mfg. Nos.:
2003
16
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694439 - 960E
1694435 - 960M
TP 400-3890-01-LW-S
