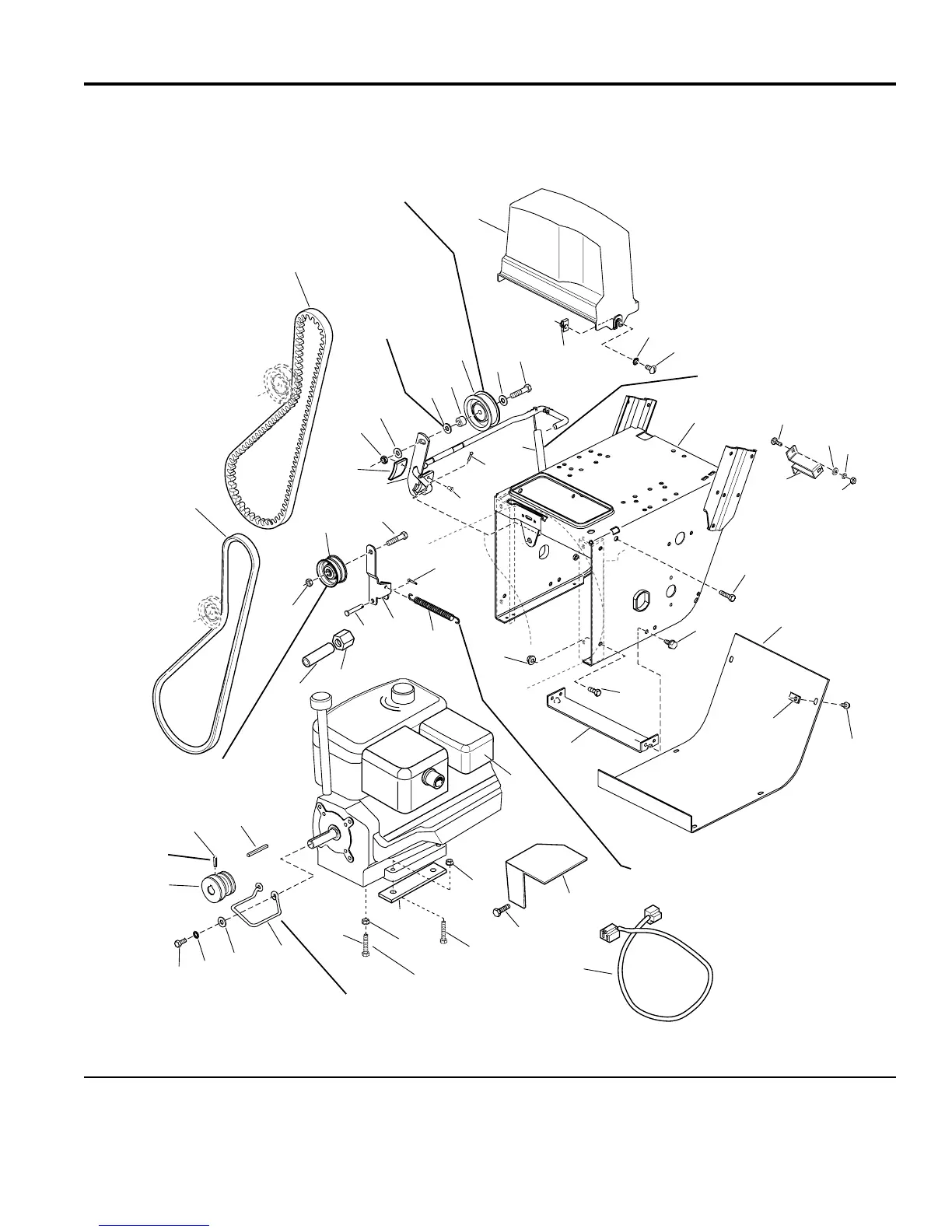

Engine and Frame Group - 9HP Electric Start
NOTE: Unless noted otherwise,
use the standard hardware torque
specification chart.
Hook one end of spring (Ref. 15)
into top hole of roller arm (Ref. 16)
and other end into top hole of the idler
arm assembly in the Traction Drive Group.
Long hub of idler pulley
(Ref. 19) to be toward
idler arm (Ref. 16).
Position idler pulley (Ref. 25)
at center of slot in clutch arm
(Ref. 22).
Hook one end of spring (Ref. 27)
over clutch rod assembly (Ref. 22)
between tabs and other end into
slot in frame.
Use 0-2 washers
between Ref. 40
& 22 to assure a
centered belt and no
interference between
pulleys Ref. 19 & 25.
Position belt stop (Ref. 33)
1/16 to 1/8 inch from belt
when auger clutch is engaged.
Torque to
10-14 ft. lbs. or
14-20 N m
Right rear bolt.
2
1
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
22
39
40
25
26
27
28
30
29
32
33
34
35
36
37
38
39
39
8
18
18
29
23
24
41
42
43
44
46
45
47
50
48
49
51
31
986367
The above parts group applies to the following Mfg. Nos.:
2003
8
© Copyright Simplicity Manufacturing, Inc. All Rights Reserved.
1694439 - 960E
TP 400-3890-01-LW-S
