3 Maintenance

Lubrication

*2388B

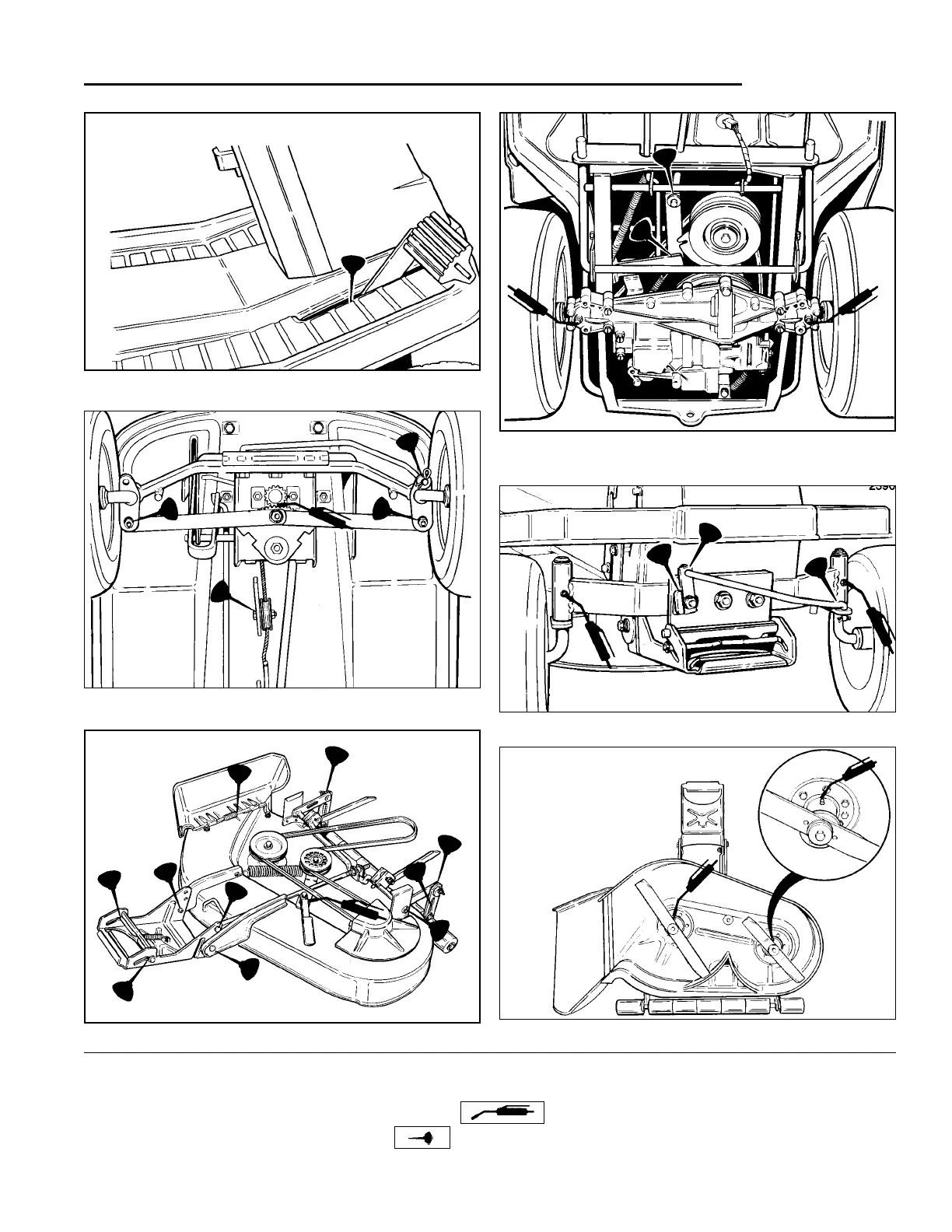

Figure 10. Brake Pedal Pivot Point

Figure 14. Front Axle Lubrication Points

Figure 13. Rider Lubrication Points - Rear Half (Gear

Model Shown)

Figure 11. Rider Lubrication Points - Front Half

*2402

*2390

NOTES:

1. Unless specified, use torque specifications shown on standard hardware torque specification chart.

2. Grease locations indicated by grease gun symbol:

3. Oil locations indicated by oil can symbol:

*2397

Figure 12. Mower Deck Lubrication Points

Figure 15. Arbor Lubrication Points

Note: On 30” mower,

grease fitting is on

topside of deck.
