9 Hydro Transmission Repair
Hydro-Gear 310-0500
9-16
11.Install the washers and a new lip seal onto the
splined end of the motor shaft. Install one washer on
each side of the retaining ring.
12.Install the motor shaft into the center section.

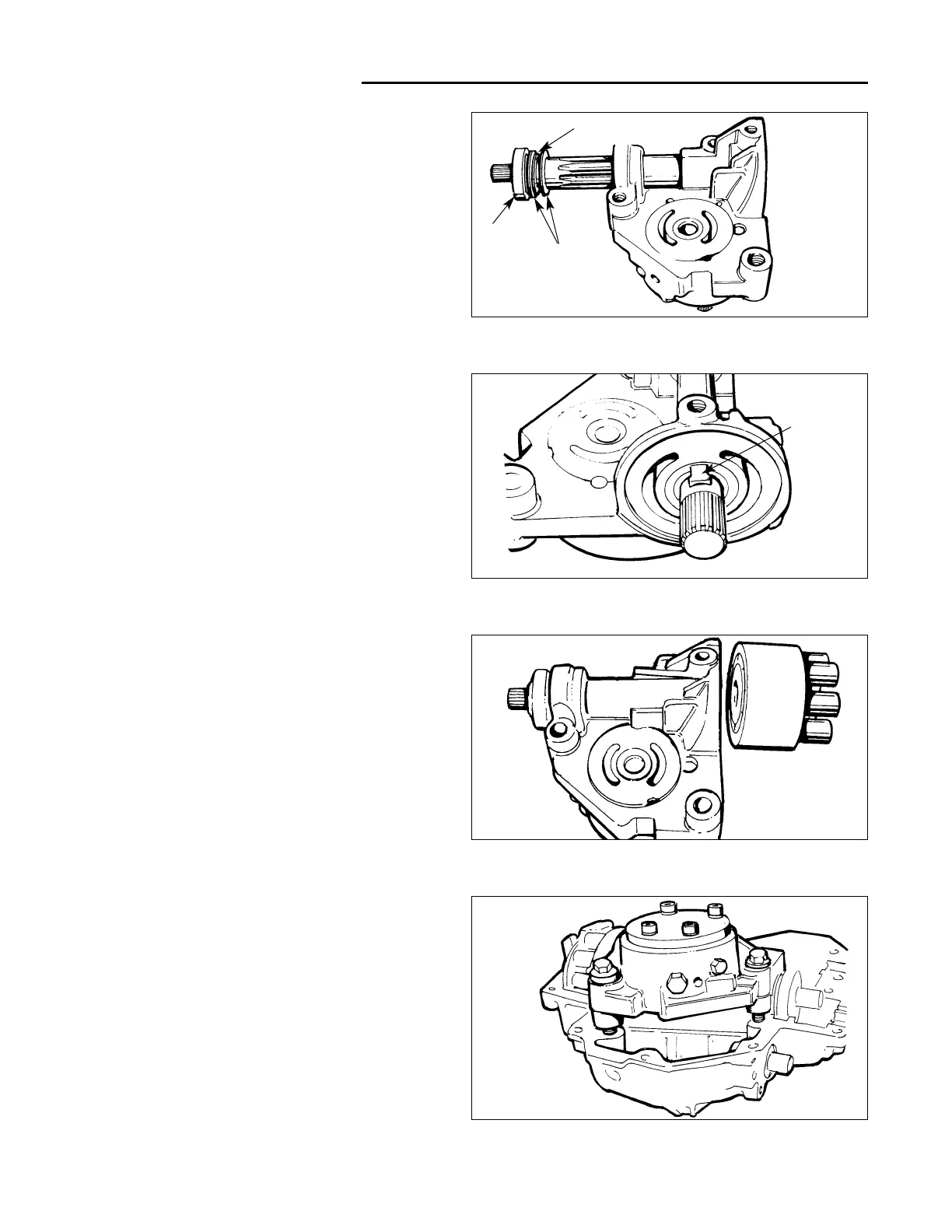

Figure 25. Install Motor Shaft
Figure 26. Install Bypass Plate
Figure 27. Install Motor Block Kit
Figure 28. Position Center Section Assembly
13. Install the bypass plate (small end first) into the center
section.
14.Lubricate the running faces and install the motor
block kit onto the motor shaft.
15.Position the washers and seal and install the center
section assembly onto the aligning pins and pump
input shaft.
NOTE: Be sure the center section is completely seat-
ed by hand. Do not pull the section down with the
capscrews. If the center section cannot be be
pushed down by hand, remove the center section
and check the alignment of the bypass actuator; oth-
erwise damage to the to the bypass plate will occur.
Seal
Washers
Retaining Ring
Bypass
Plate
To Next Page
