Normal Care
LUBRICATION

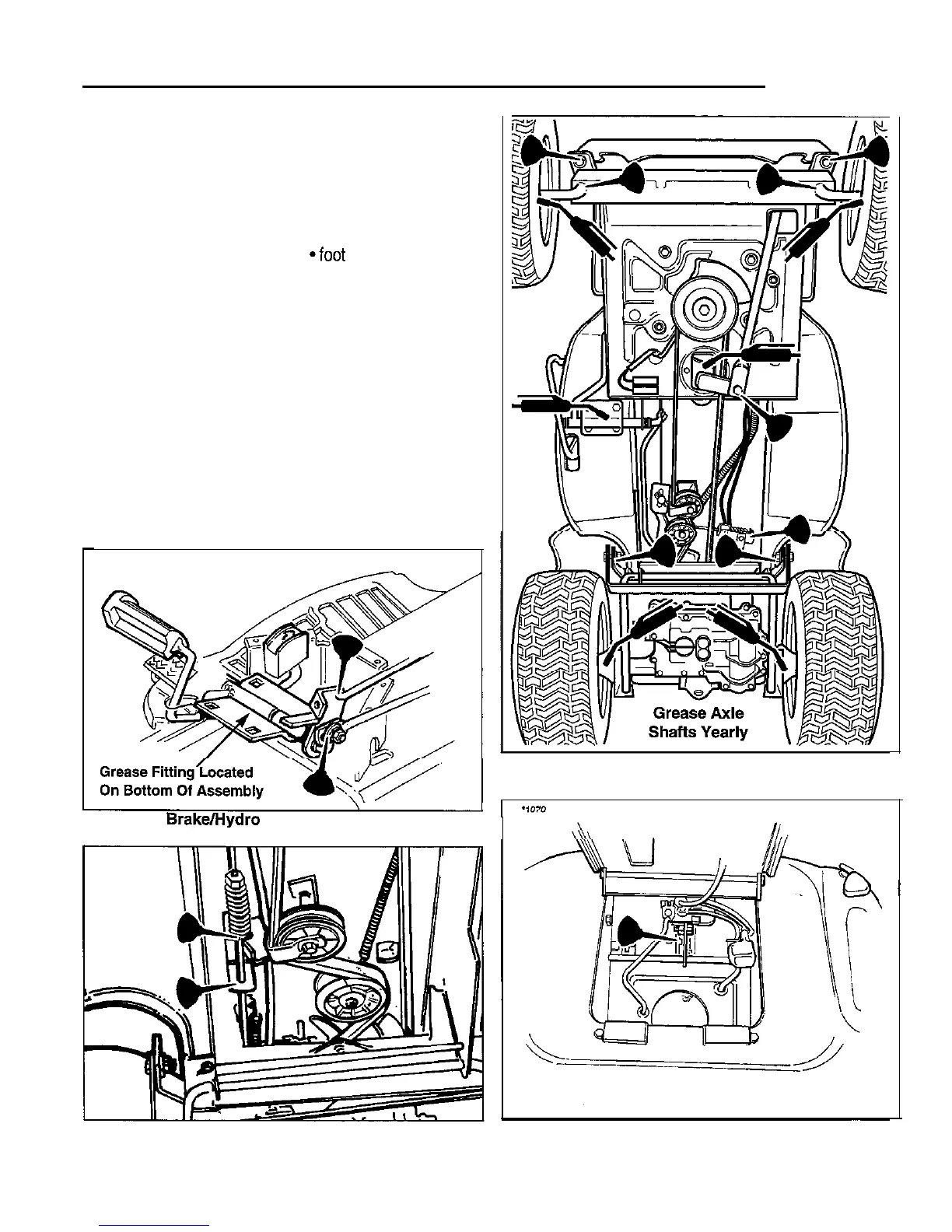

Lubricate the tractor at the locations shown in Figures 11
through 16 as well as the following lubrication points.
Grease:
l steering linkage
l mower pivots
l rear axle shafts
l mower arbors
l front wheel bushings
*foot pedal (hydro only)
Oil:
l front axle assembly
l shift linkage
l rear frame assembly pivot
l hydro linkage
l seat adjustment assembly
l brake linkage
l mower deck height
adjustment linkage
Generally, all moving metal parts should be oiled where
contact is made with other parts. Keep oil and grease off
belts and pulleys. Remember to wipe fittings and sur-
faces clean both before and after lubrication.
Not all greases are compatible. Simplicity “‘Jiffy Lube”
Lithium Grease is recommended, automotive-type lithium
grease may be used when this is not available.
Unit pictured from above with frame removed.
Figure 11. Brake/!-lydro Linkage Lubrication
Figure 13. Lubricating Tractor-Typical
I
Figure 12. Brake Linkage Lubrication-Gear Models
Figure 14. Shift Linkage Lubrication (Gear Model)
15
