Figure 43. Air Filter Assembly - Briggs & Stratton
Single Cylinder Models
A. Air Filter Latch
B. Air Filter Cover
A
B
Air Filter & Pre-Cleaner Service
BRIGGS & STRATTON SINGLE CYLINDER MODELS
Service Interval: Pre-Cleaner: Every 25 hours or as
required. Air Filter: Every 50 hours or as required.
Replacement Interval: Pre-Cleaner: As required. Air
Filter: Every 200 hours or once per season.
Air Filter Removal & Installation
1. Lift up on the air filter latch (A, Figure 43).
2. Rotate the air filter latch (A) to the inside.
3. Pull air filter cover (B) out and off.
4. Lift air cleaner (C, Figure 45) and pre cleaner (D) if
equipped, from blower housing)
5. Install the pre-cleaner (D) with the mesh side up.
Install the filter (C) as shown.
6. Install the cover (B) making sure the tabs are inserted
into their slots. Secure with the latch (A).
Pre-Cleaner Service
NOTE: Replace a worn or damaged pre-cleaner.
1. Figure 44. Wash the pre-cleaner in liquid detergent
and water.
2. Squeeze the pre-cleaner dry. Do not oil pre-
cleaner.
Air Filter Service
NOTE: Replace a worn or damaged air filter.
1. Figure 44. If stamped “Washable,” the filter can be
washed with warm water and mild soap.
2. Rinse with tap water with the screen side UP allowing
dirt and debris to filter out.
3. Allow the filter to dry overnight before reinstalling.
A
B
A
B

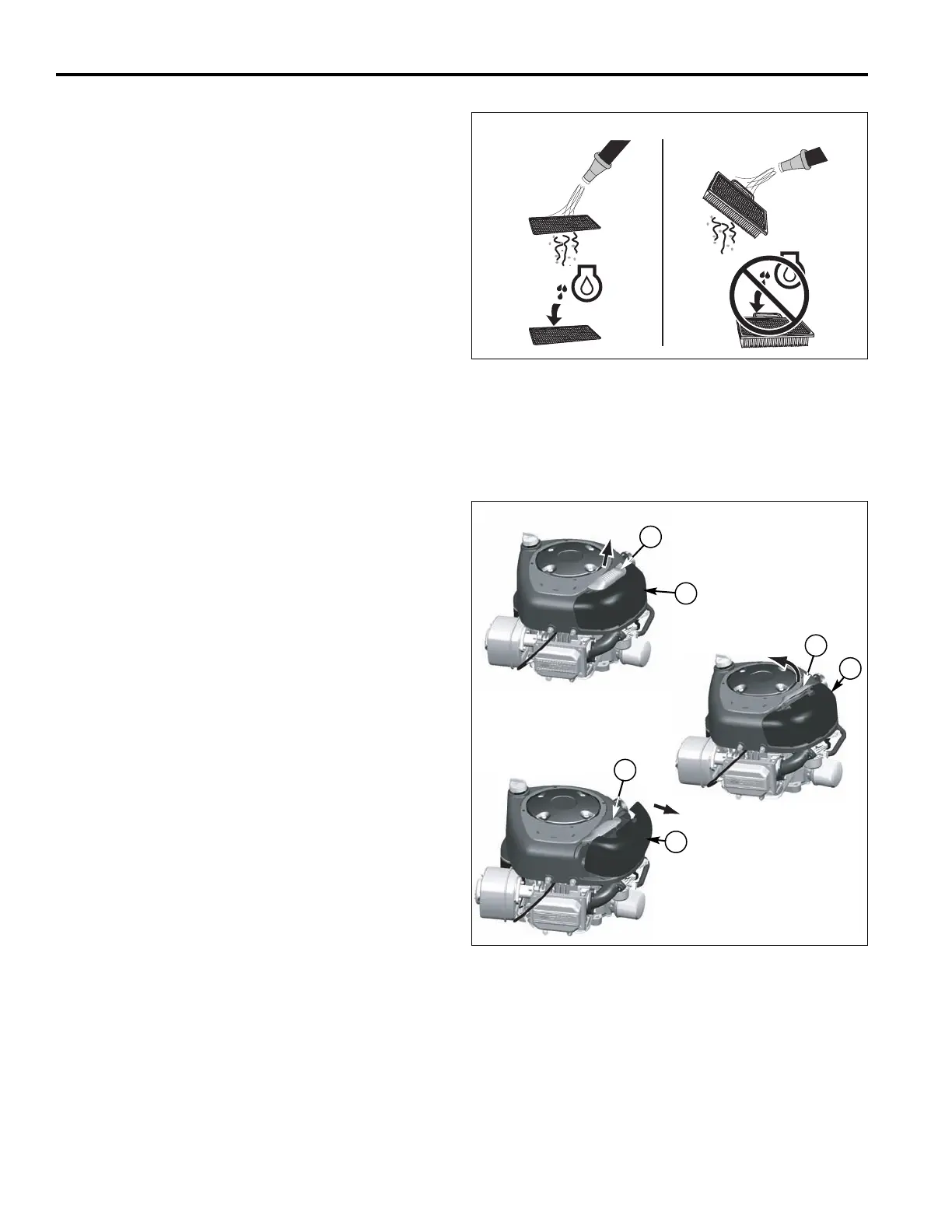

Figure 42. Air Filter Service
Pre-Cleaner Service
NOTE: Replace a worn or damaged pre-cleaner.
1. Figure 42. Wash the pre-cleaner in liquid detergent
and water.
2. Squeeze the pre-cleaner dry and saturate with engine
oil. Remove all excess oil by squeezing the pre-
cleaner in an absorbent cloth.
Air Filter Service
NOTE: Replace a worn or damaged air filter.
1. Figure 42. If stamped “Washable,” the filter can be
washed with warm water and mild soap.
2. Rinse with tap water with the screen side UP allowing
dirt and debris to filter out.
3. Allow the filter to dry overnight before reinstalling.
