FastCut Hydro Drive ZTR
7/2005 5
TP 300-7237-IR-HZ-N
Rider
Assembly
Seat & Safety Switch Assembly

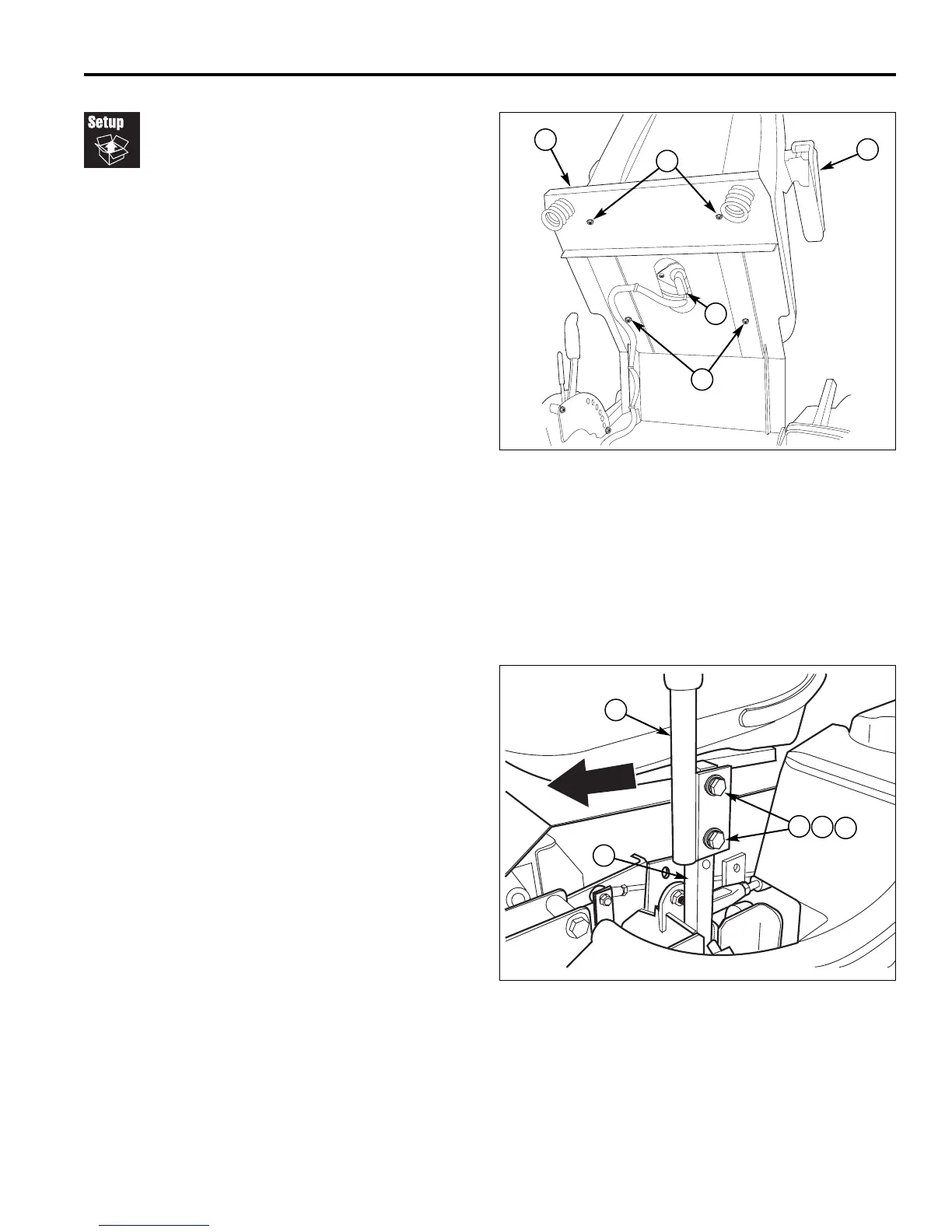

1. Mount the seat (A, Figure 3) to the seat plate (B)
using four 5/16-18 nylock flange nuts (C) and tighten
securely.
2. Connect the seat switch wire harness (D) to the seat
switch.
A
B
C
D
Figure 3. Seat Installation
A. Seat
B. Seat Plate
C. 5/16-18 Nylock Flange Nut (4)
D. Seat Switch Wire Harness
A
B
C
D
E
Figure 4. Install Control Levers
A. 5/16-18 x 1” Bolts
B. 5/16 Lockwashers
C. 5/16 Washers
D. Control Lever
E. Control Lever Base
Install Ground Speed Control Levers
1. Mount the control levers (F, Figure 4) to the control
lever base (E) using four 5/16-18 x 1” bolts, lockwash-
ers, and washers.
NOTE: The ground speed control levers and seat must
be adjusted to fit the operator. See SEAT ADJUST-
MENTS and GROUND SPEED CONTROL LEVER
ADJUSTMENTS in the Adjustments section.
