Assembly
Step 8
Model # AXCJAG-09-N
H
I
Click
1
2
3

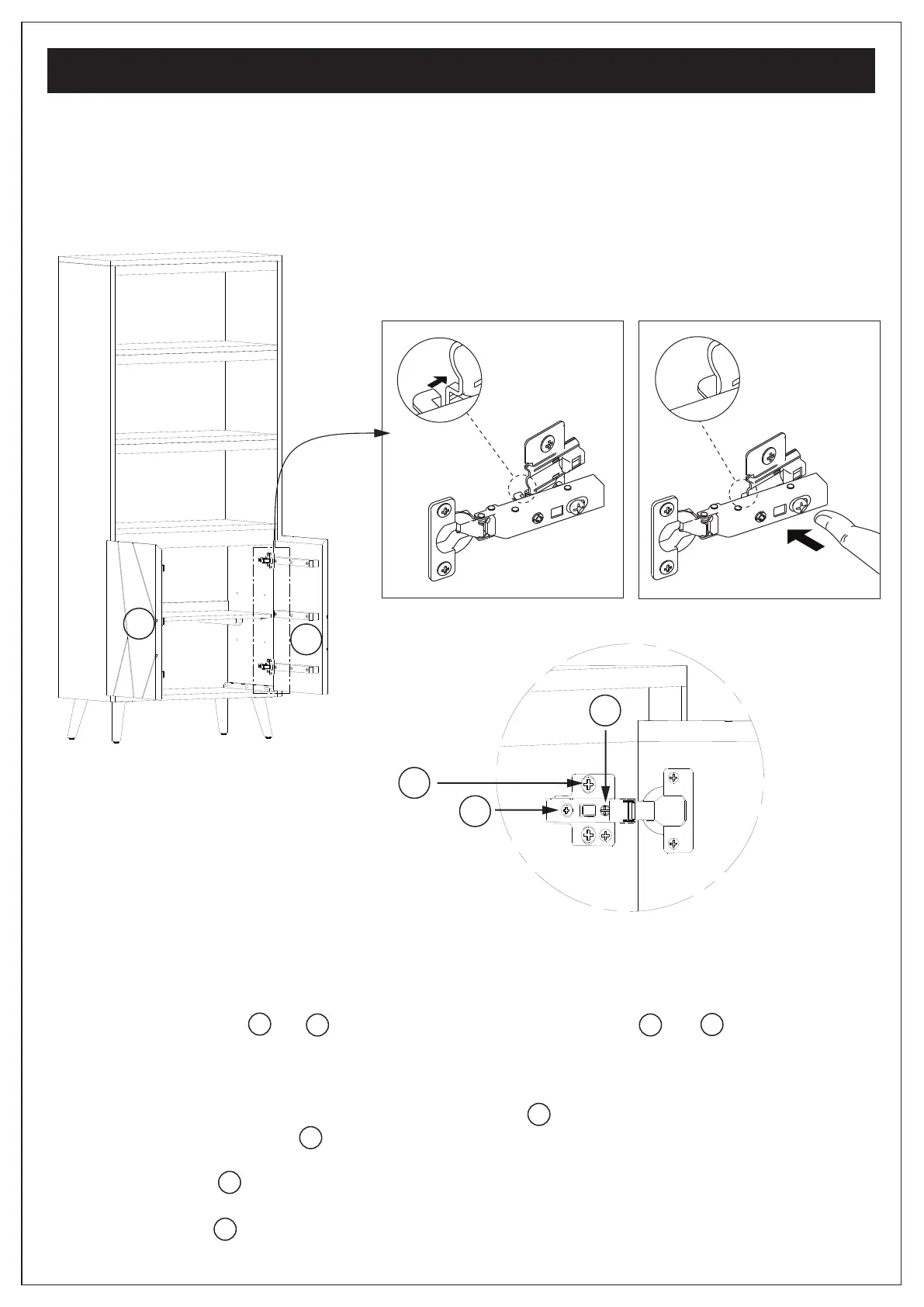

1. Side adjustment.
To move the door towards the side panel,loosen screw 1 and To move the door away from the
side panel, tighten screw 1 .
2. Depth adjustment.
Loosen screw 2 ( just one turn ), adjust door to desired position, re-tighten screw.
3. Height adjustment
Loosen screw 3 , adjust door to desired position, re-tighten screw.
Attach Door Panels H and I using adjustable hinges on Side Panels A and B .
