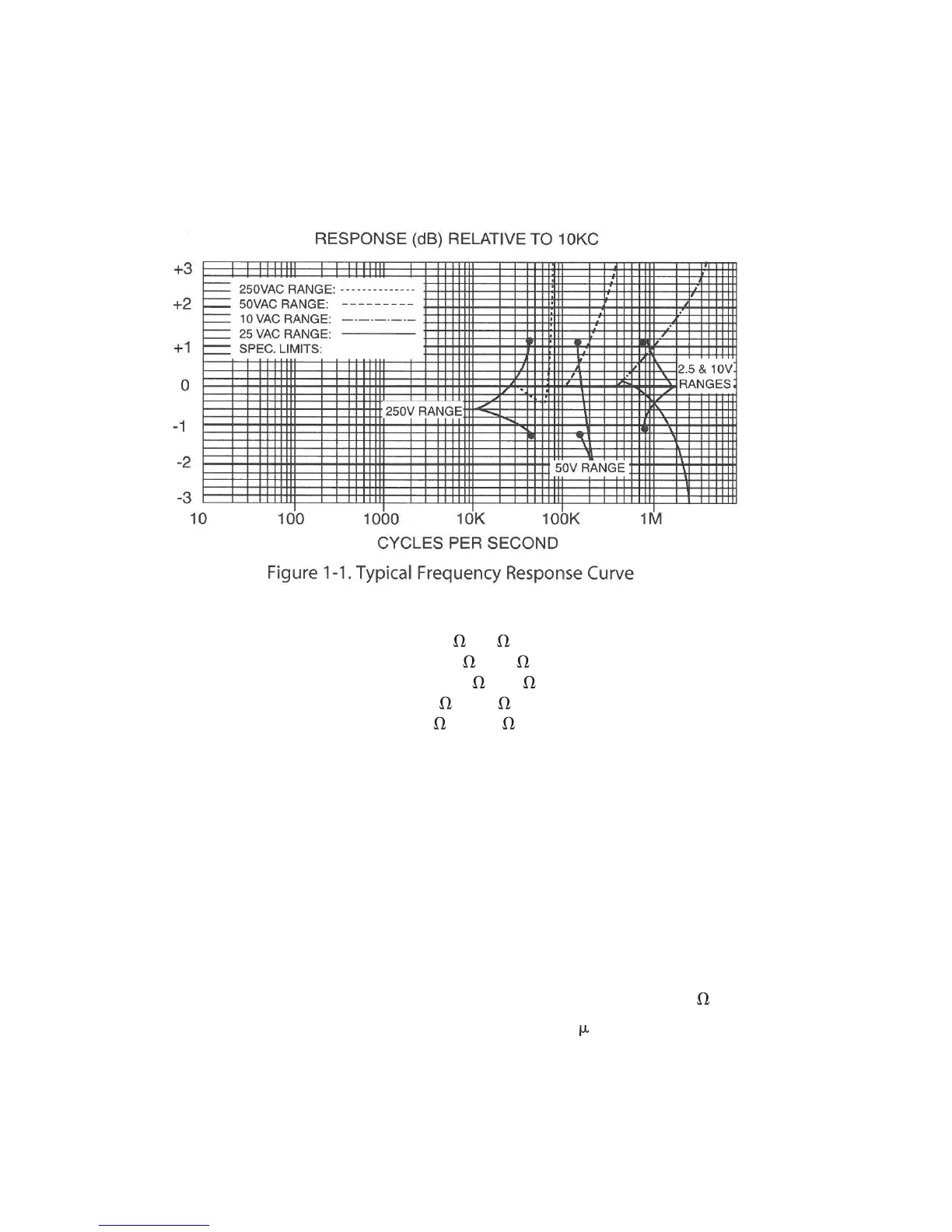

* See typical Response Curves, Figure 1-1.
** Per ANSI C39.5 April 1974: “The maximum voltage with respect to ground,
which may safely and continuously be applied to the circuit of an instrument.”
Direct Current:
Ranges: 1, 10, 100, 250, 500 mA; 50 µA on separate jack.
Rated Accuracy: Within ±2% full scale, all ranges
DC Resistance
Ranges:
000,3-01 x R
(30 center)
R x 10 0-30,000
(300
center)
R x 100 0-300,000
(3 K center)
R x 1K 0-3 M
(30 K
center)
R x 10K 30 M
(300 K
center)
Accuracy: 3° arc
Max. Voltage or Current
Delivered:
tiucric nepo V5.1 ,tiucric trohs Am 051 x R
R x 10 5 mA short circuit, 1.5V open circuit
R x 100 0.5 mA short circuit, 1.5V open circuit
R x 1K 0.75 mA short circuit, 22.5V open circuit
R x 10K 0.075 mA short circuit, 22.5V open circuit
dB Ranges: –20 dB to +10 dB on 2.5 VAC range
–8 dB to +22 dB on 10 VAC range
+6 dB to +36 dB on 50 VAC range
+20 dB to +50 dB on 250 VAC range
Zero dB referenced to 1 milliwatt at 600
Movement: Taut-Band 100° arc, 50
A full scale
Dial Arcs: One arc for ohms, one arc for DC, two arcs for
AC, one arc for dB.
Scale Length: 3.0 inches
