8
will be quoted. This charge will not be exceeded without prior approval.
2.3
Shipping
Pack the Instrument carefully and ship it prepaid and insured to the proper
destination.
2.4
Operating
Procedure
The Instrument may be operated in a horizontal or vertical position.
3.
C
O
N
T
R
OLS,
CONNECTORS
&
I
ND
ICATO
R
S
All operating and adjustment controls, connectors, and indicators are de-
scribed in this section along with a list (Table 3-1) describing their functions.
Become familiar with each item before operating the Instrument.
3.1
Panel
Description
Table 3-1 lists all Controls, Connectors, and Indicators.

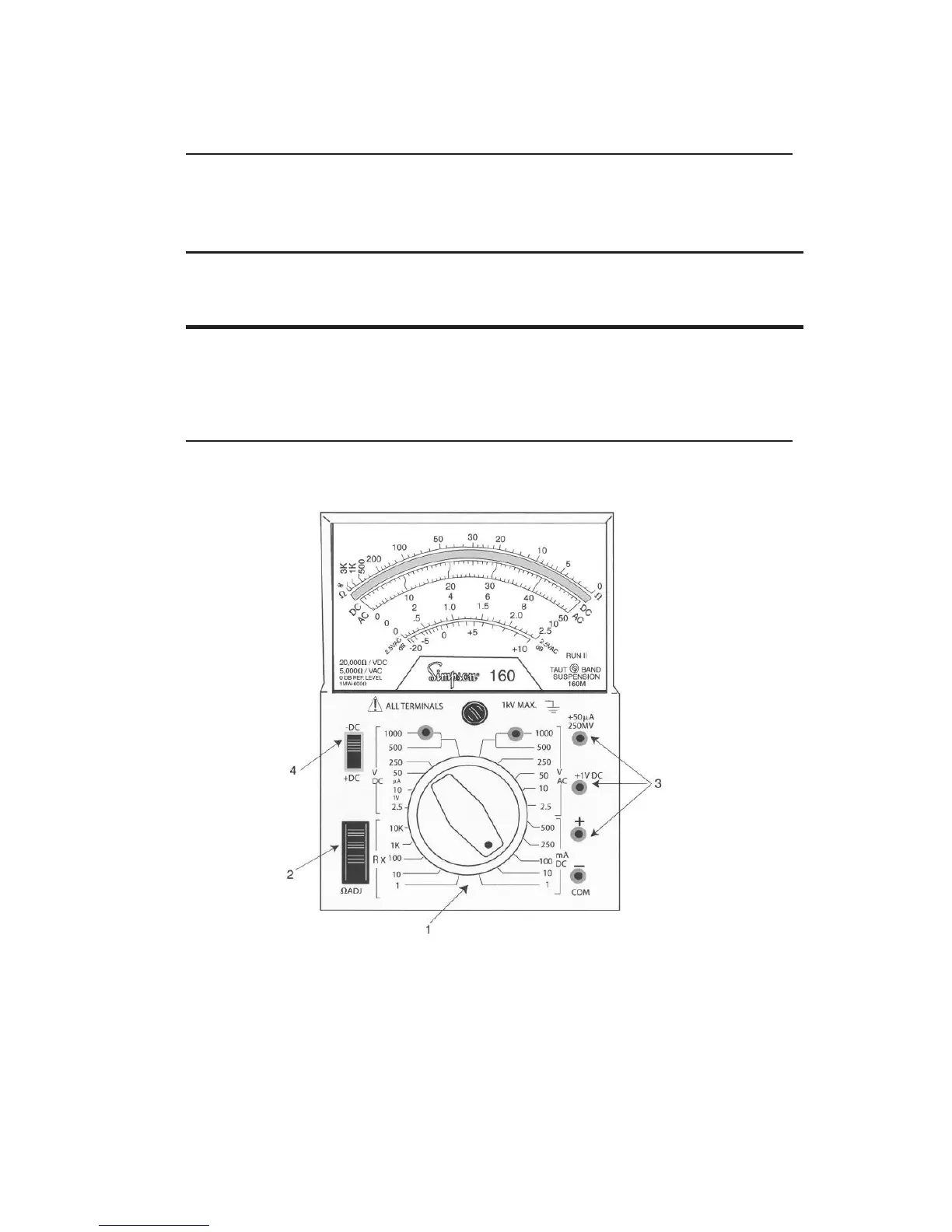

Figure 3-1. Front
Panel
To Next Page
