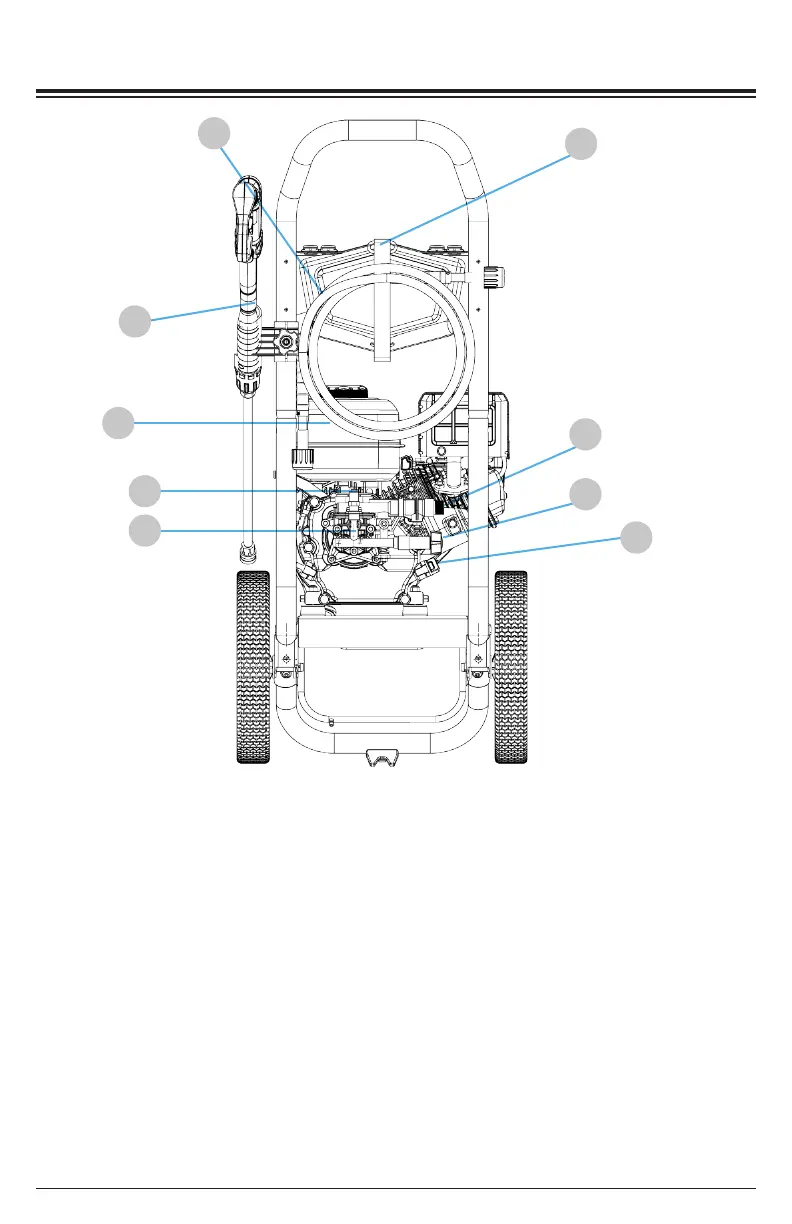

COMPONENT LOCATION
1. High-pressure hose
2. Hose hanger
3. Oil ll cap / dipstick
4. Pump
5. Low-pressure pump input
6. High-pressure pump output
7. Thermal relief valve
8. Fuel tank
9. Spray gun
