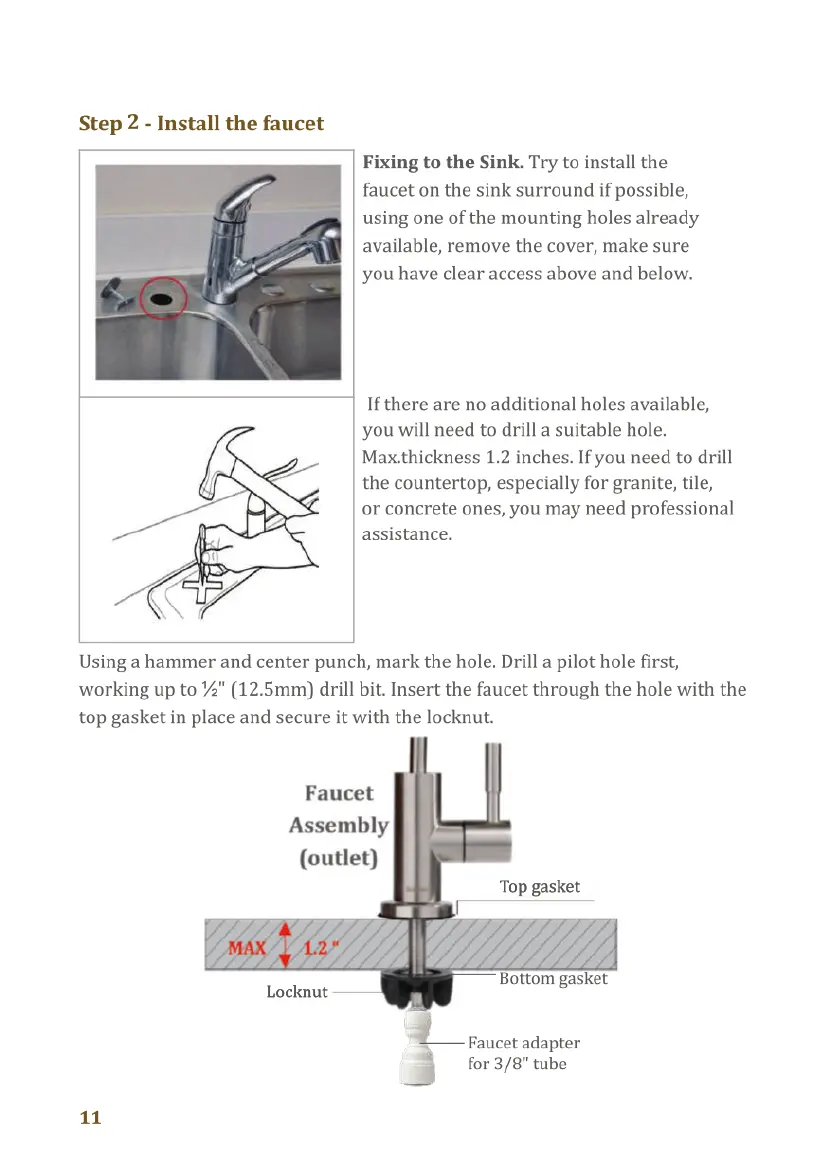

Step 2 - Install the faucet
Fixing to the Sink. Try to install the
faucet on the sink surround if possible,
using one of the mounting holes already
available, remove the cover, make sure
you have clear access above and below.
If there are no additional holes available,
you will need to drill a suitable hole.
Max.thickness 1.2 inches. If you need to drill
the countertop, especially for granite, tile,
or concrete ones, you may need professional
assistance.
Using a hammer and center punch, mark the hole. Drill a pilot hole first,
working up to %" (12.5mm) drill bit. Insert the faucet through the hole with the
top gasket in place and secure it with the locknut.
Faucet
Assembly
(outlet)
Bottom gasket
1 Faucet adapter
_,' for 3/8" tube
11
Step 3 - Install the Drain Saddle
If installing the product under a sink, make sure you connect the drain to a
straight piece of pipe and make sure it is BEFORE the water trap ('P' trap or 'U’
bend) see diagram below.
Garbage
Disposal
P Trap
INSTALLATION WARNING!
Only install saddle Never mount drain
valve on straignt pipe saddle on bends or
above any water traps! below the water trap!
