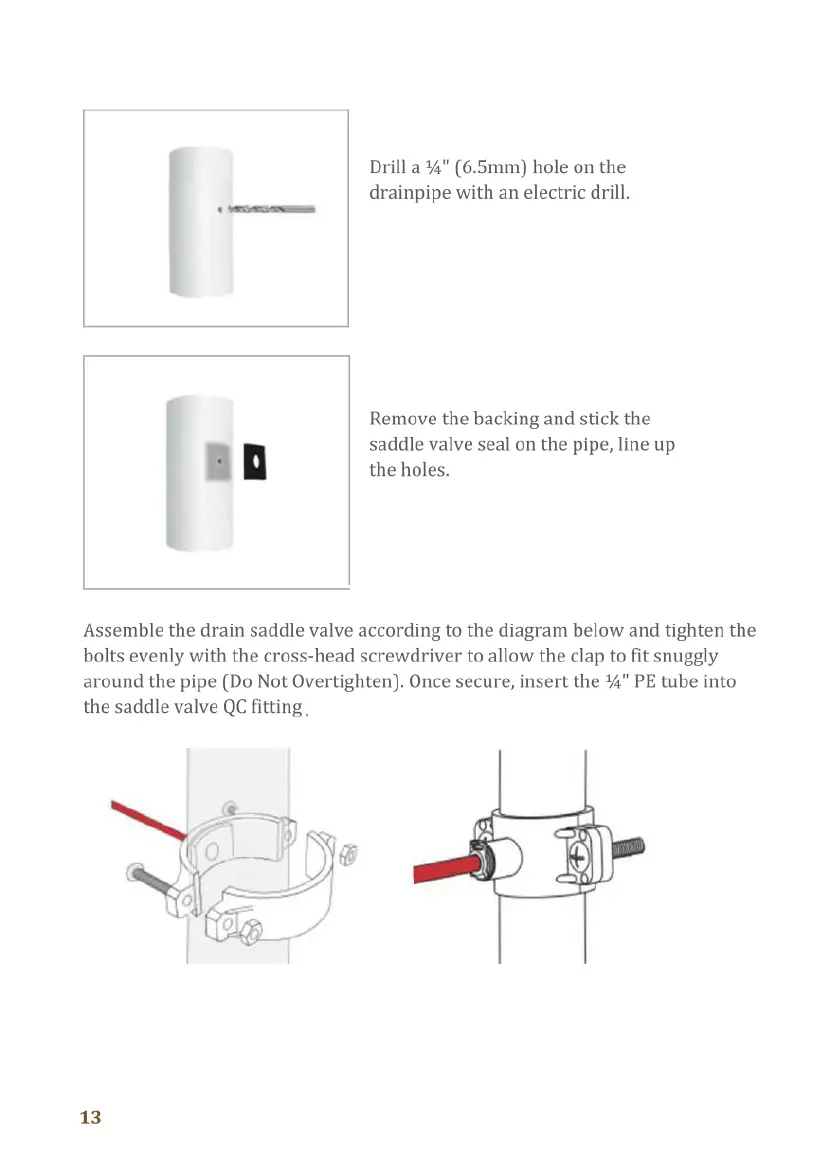

Drill a %" (6.5mm) hole on the
drainpipe with an electric drill.
Remove the backing and stick the
{ saddle valve seal on the pipe, line up
‘ n the holes.
Assemble the drain saddle valve according to the diagram below and tighten the
bolts evenly with the cross-head screwdriver to allow the clap to fit snuggly
around the pipe (Do Not Overtighten). Once secure, insert the %" PE tube into
the saddle valve QC fitting
13
Step 4 - Connect Tubing (refer to page 16 for instructions on use of
Quick Connect Fittings)
Follow the instruction below to connect the SimPure® Q3-600 Filtration System.
1. Inlet Water (A)
Use 3/8" white tube to connect the Inlet
water port and the Feedwater Valve.
(refer to white tube connect)
2. Waste Water (B)
Use 1/4" red tube to connect the waster
water port and the Drain Saddle.
(refer to red tube connect)
3. Outlet Water (C)
Use 3/8" blue tube to connect the outlet
water port and the Gooseneck Faucet.
(refer to blue tube connect)
Faucetsdspor
siTube ac
3 8he wbe
315 whie e ol
