ForwardScan | User Guide
Operation
ForwardScan™ forward-looking sonar is a navigational aid that
helps you monitor the depth in front of your vessel.
ForwardScan features are available in the latest software update
for your multi-function display. Refer to your display’s brand
website to download the latest update.
¼ Note: Screen captures in this document are from a NSS evo 2 unit.
The look of your unit may dier slightly, but it will operate in a
similar manner.

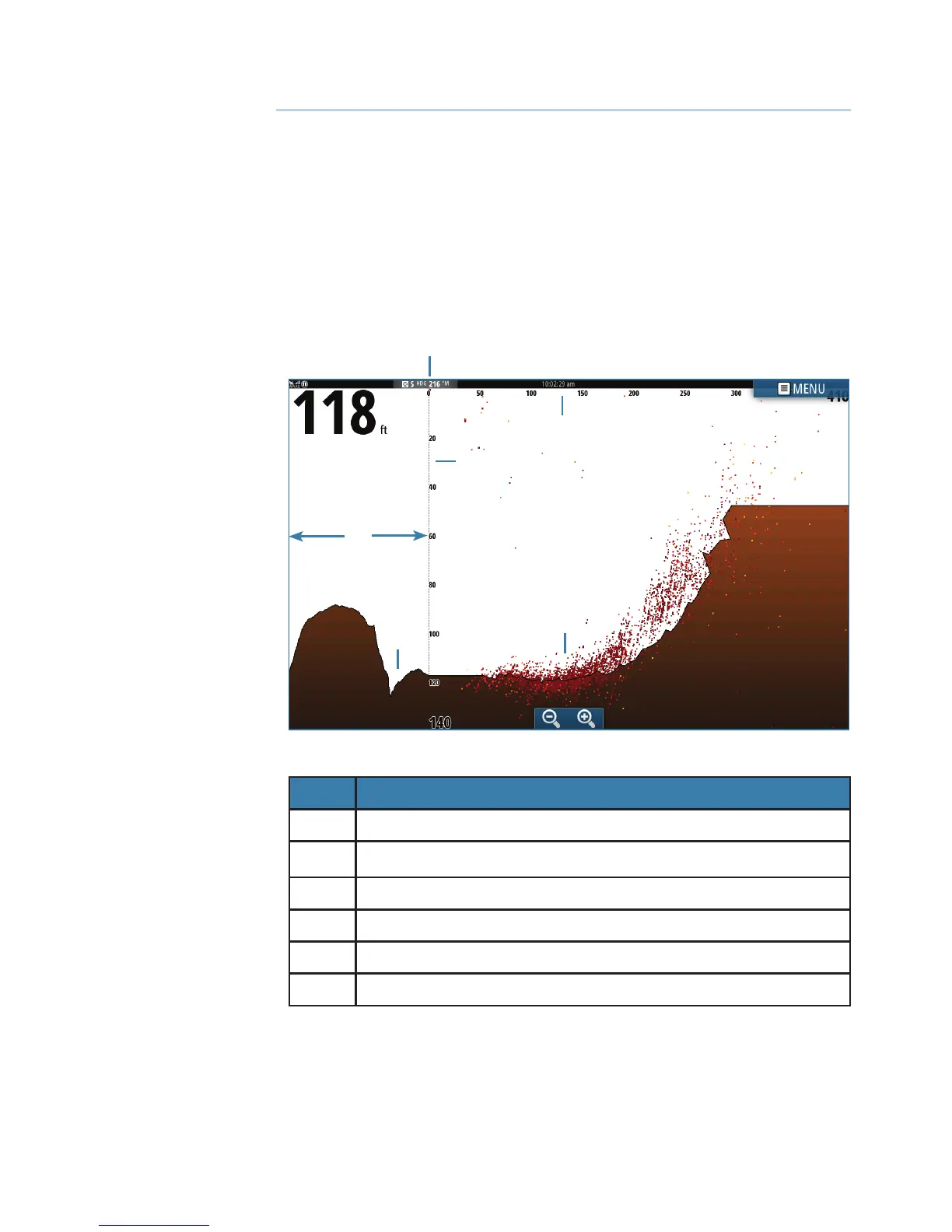

Key Description
1 Transducer location shown as the origin on the screen
2 Depth range scale/Boat position
3 Point data
4 Depth history
5 Bottom
6 Forward range scale
1
2
3
4
5
6
