8
P
CB
d
r
awin
g
&
Wirin
g
diagram

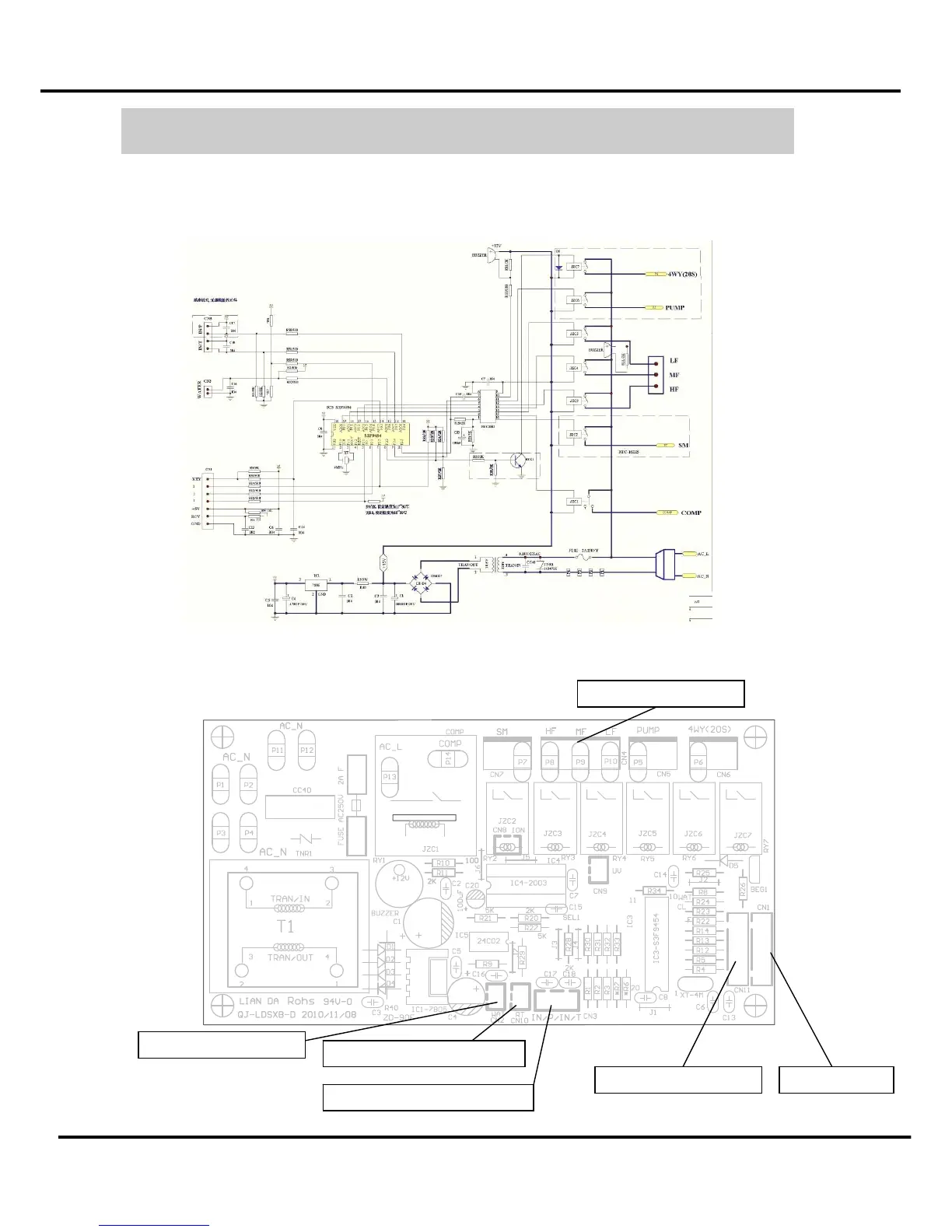

6 PCB drawing & wiring diagram
The below picture is PCB schematic:
800161-0Y-4-5
The below picture is PCB Drawing
800161-0Y-4-5
Water full switch
Inner Motor Switch
10 pin plug Display
Inner Tempreature Sensor
OuterTempreature Sensor
