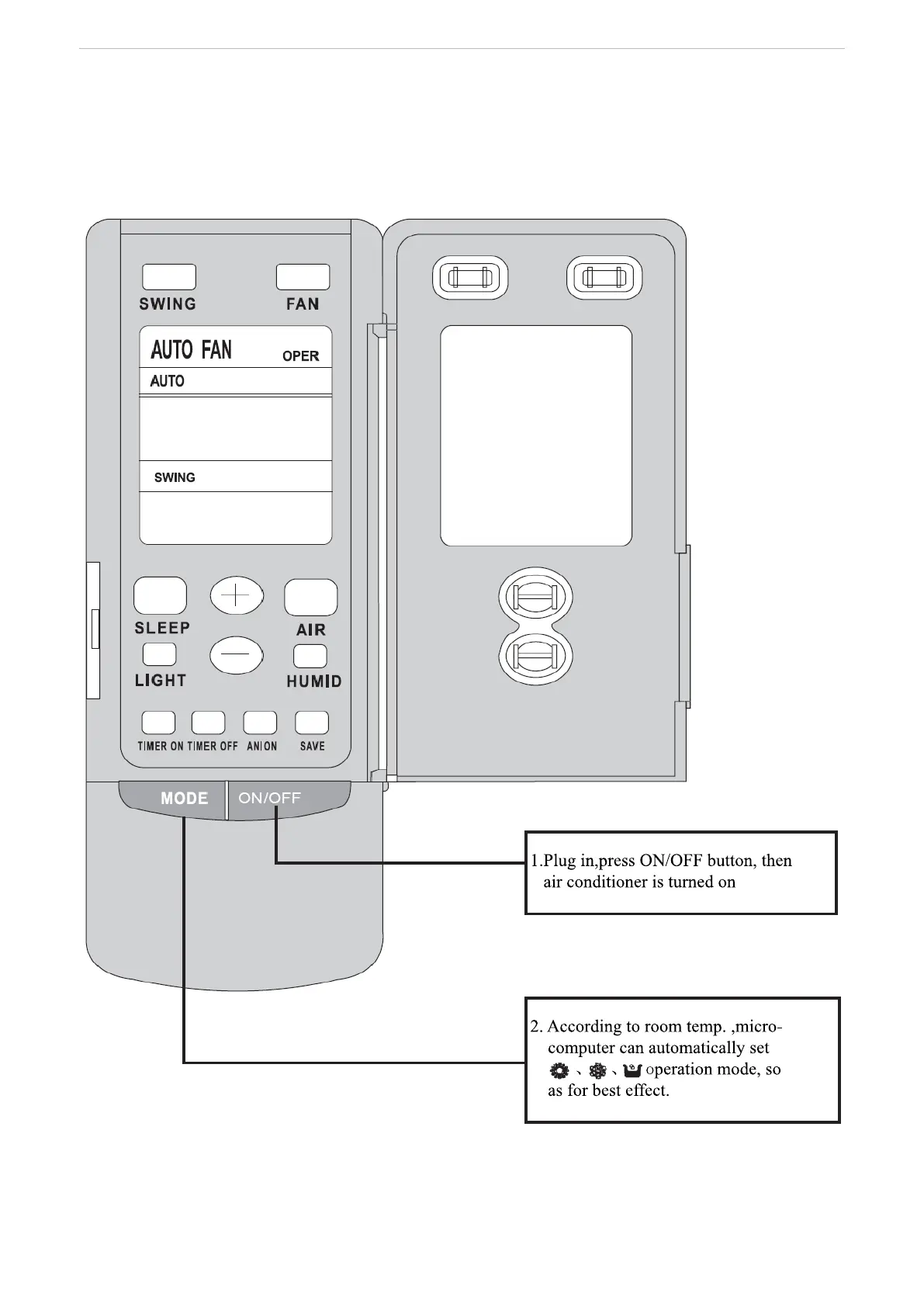

DC Inverter Duct Type Air Conditioner Installation and Operation Manual
34
Table 6 Unit: mm
Item
Model
A B C D E F G H I J
932 430 738 892 980 721 738 125 203 266
ASD-18AIA
ASD-24AIA
1101 515 820 1159 1270 530 1002 160 235 268
ASD-36AIA
1011 748 820 1115 1226 775 979 160 231 290
ASD-42AIA
Item
Model
Connecting Pipe (inch)
Drainage pipe(Outer Diameter × wall thickness)
(mm)
Liquid Gas
ASD-18AIA
1/4 1/2 φ30×1.5 (with Optional Pump:φ26×3)
ASD-24AIA
3/8 5/8
φ20×1.2 (with Optional Pump:φ26×3)
ASD-36AIA
3/8 5/8 φ20×1.2 (with Optional Pump:φ26×3)
ASD-42AIA
