14
Service Manual

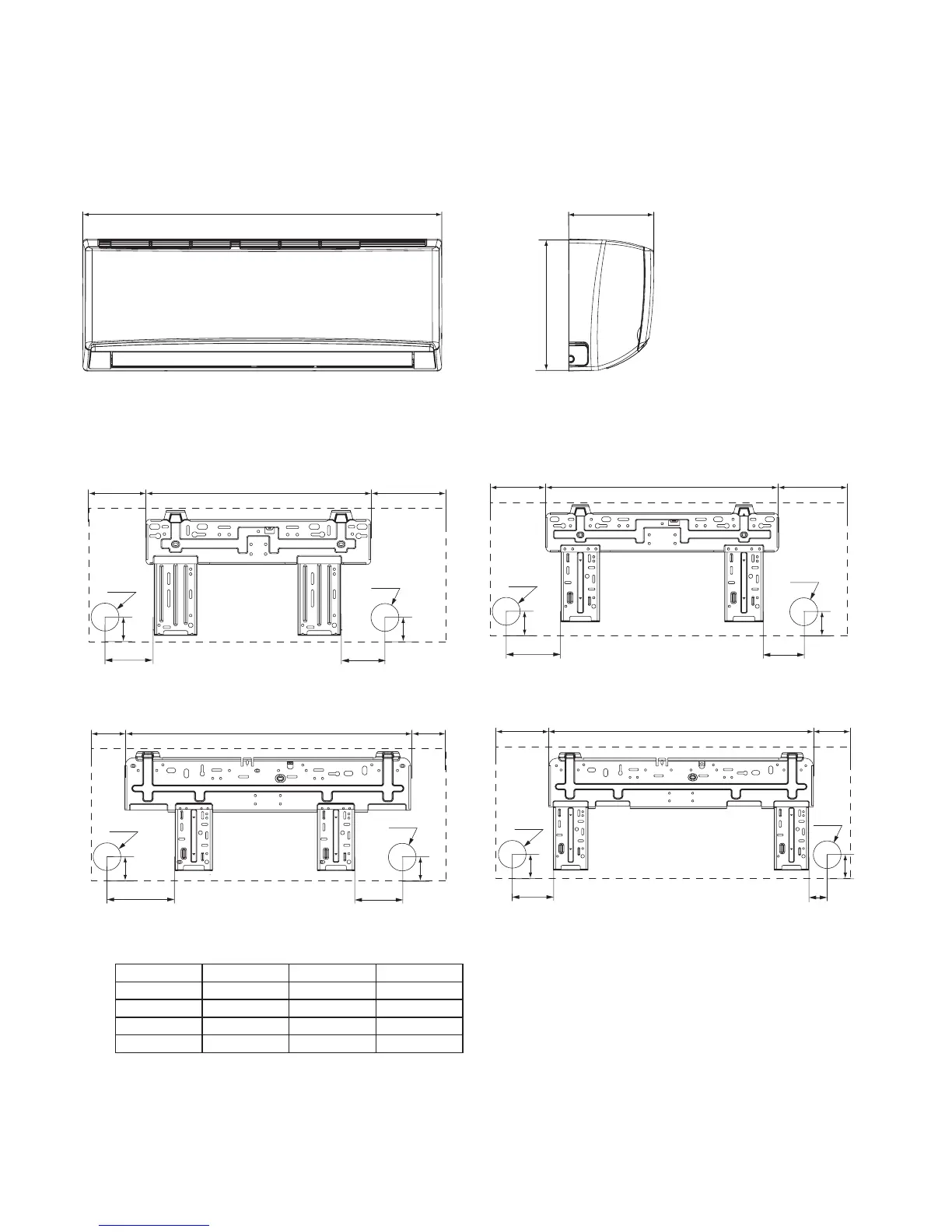

3. Outline Dimension Diagram
3.1 Indoor Unit
Unit:mm
Model W H D
09K 790 275 200
12K 845 289 209
18K 970 300 224
24K 1078 325 246
W
12K
09K
D
H
90
150
54
168.5 462 159.5
Φ55
Φ55
54
123.5542 179.5
83.2
124.7
35
Φ55
Φ55
35
18K
104 685 181
140
190
38
Φ55
Φ55
38
24K
79
154
43
206 685 187
Φ70
Φ70
43
