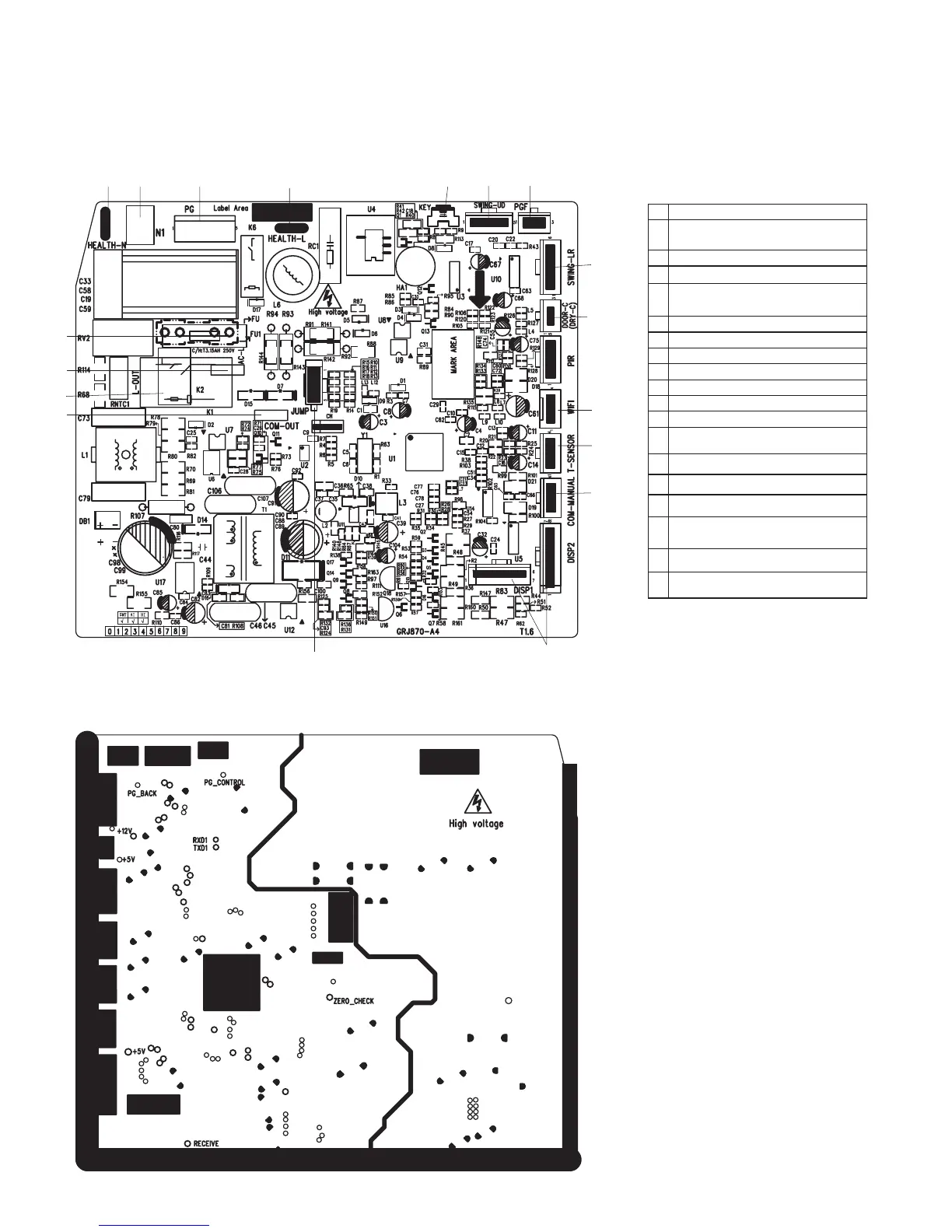

5.2 PCB Printed Diagram
Indoor Unit
No Name
1
Interface of communication wire for
indoor unit and outdoor unit
2
3
Interface of live wire
Fuse
Interface of health function neutral
wire
4
Interface of neutral wire
5
Interface of fan
6
Interface of health function live wire
7
8
Auto button
Interface of WIFI
9 Up&down swing interface
Interface of PG feedback10
11
12
Needle stand for tube temperature
sensor
13 Display interface
14 Jump
15
15
17
16
11
12
18
14
13
45
6
89
10
● Top view
● Bottom view
1
2
3
7
Interface of left&right swing
16
Terminal of live wire used for
outdoor unit power supply
17 Terminal of gate control function
18 Terminal of Wired controller
